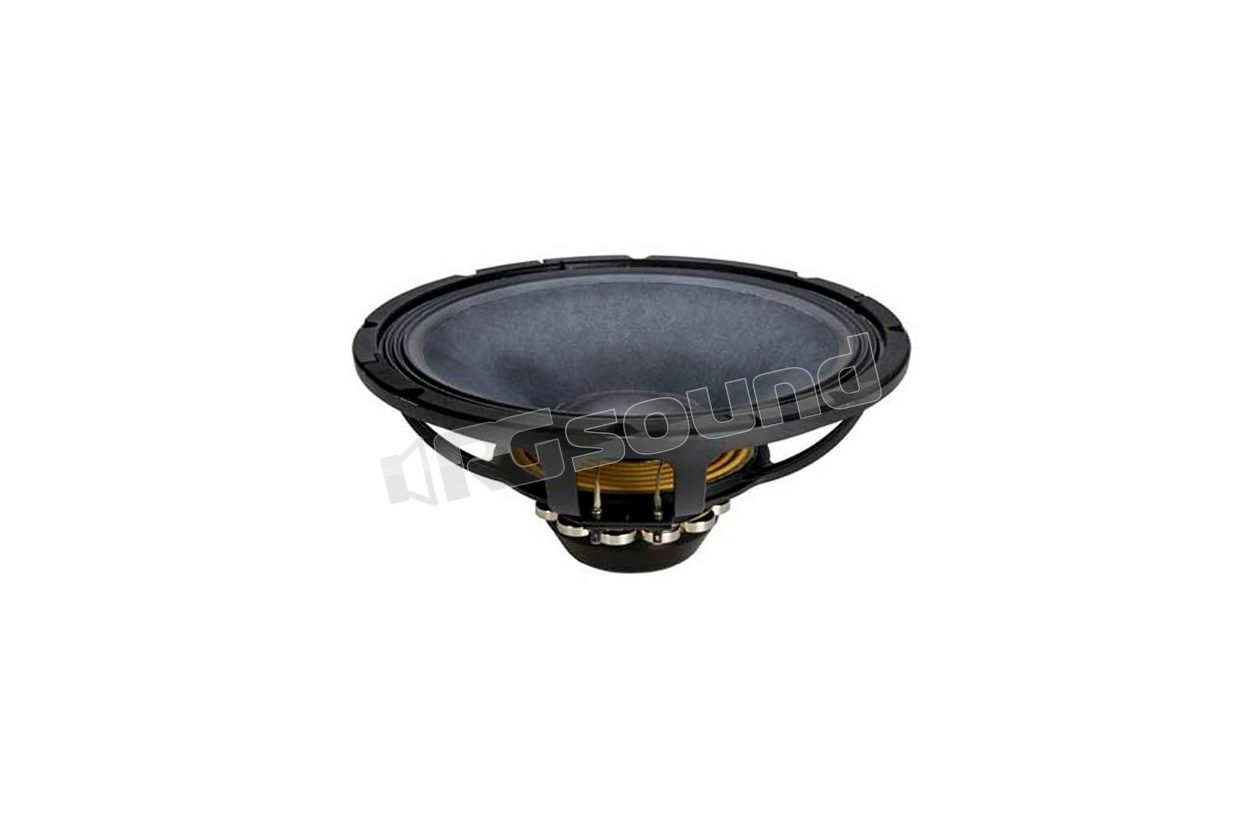

HW385 380mm woofer - max power 600W

Ciare

Discontinued

Your price:
€ 314,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
30 - 3.500 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
5,5 Kg
Installation Depth
158 mm
Voice Coil Diameter
75 mm

Ciare HW385 380mm woofer with cellulose membrane, NOMEX fabric suspensions. Ciare is a company constantly keeping pace with technological innovations and under continuous stimulus from market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the production of every component.

HW385 Features

  • Max power: 600W
  • Nominal power: 300W
  • Nominal impedance: 8Ω
  • Diameter: 380mm
  • Voice coil diameter: 75mm
  • Sensitivity 1W/1m: 99 dB

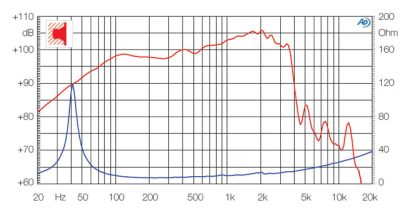

  • Frequency response 30-3,500 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 118 dm3
  • Recommended tuning frequency: 50 Hz

HW385 Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Nomex
  • Former type: Kapton
  • Air gap height: 10 mm

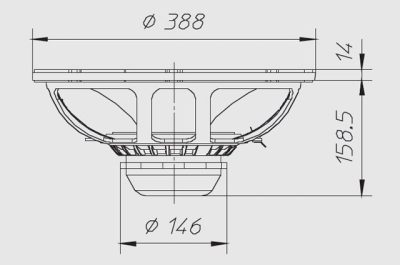

HW385 Dimensions

  • Outer diameter: 388 mm
  • Sub-flange depth: 158.5 mm
  • Flange thickness: 14 mm
  • Panel hole: 354 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 7 mm
  • Mounting hole position diameter: 370
  • Weight with individual packaging: 5.50 Kg

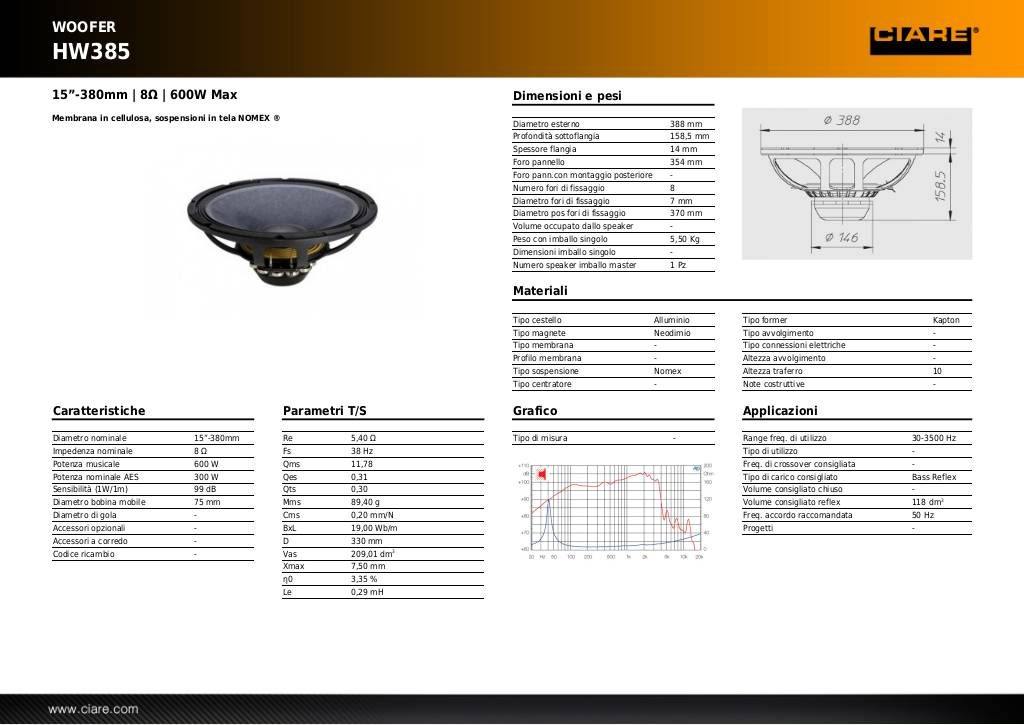

Scheda tecnica

20131104121436-hw385.pdf

1 8 Ohm speaker Ciare HW385 woofer
Discontinued
