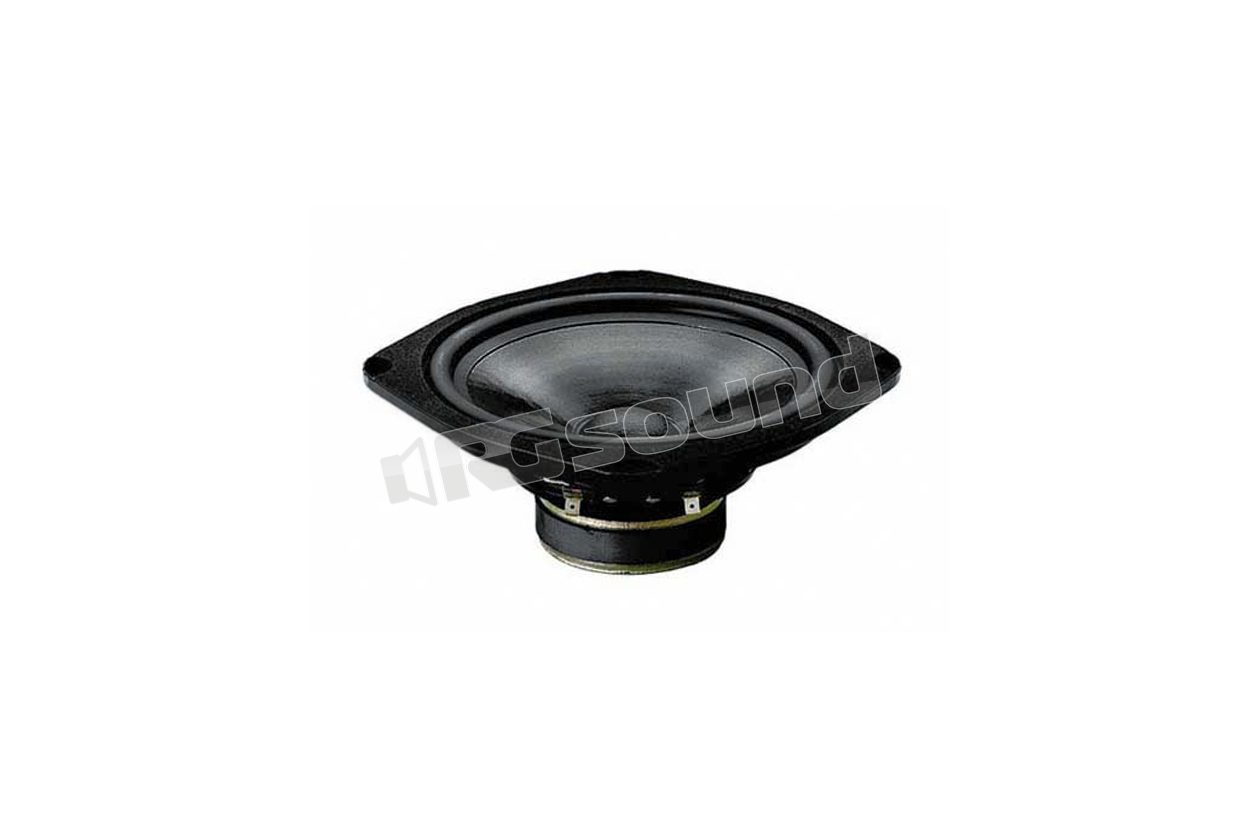

HW211 235mm woofer - max power 150W

Ciare

Discontinued

Your price:
€ 32,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
Other sizes
MAX Power
150 Watt
RMS Power
60 Watt

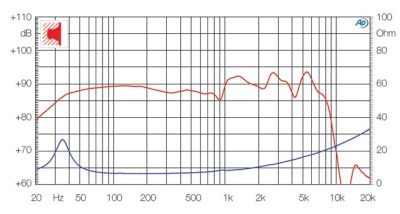

Frequency Response
25 - 6.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
0,98 Kg
Installation Depth
75,5 mm
Voice Coil Diameter
25 mm

Ciare HW211 damped cellulose cone and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely independently manage all phases of product manufacturing, enabling the company to achieve the highest quality standards in the creation of every component.

HW211 Features

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 8Ω
  • Diameter: 235mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 25-6,000 Hz
  • Recommended enclosure type: Sealed box
  • Recommended sealed volume: 52 dm3

HW211 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 5 mm

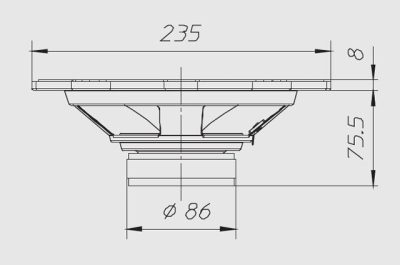

HW211 Dimensions

  • External diameter: 235 mm
  • Depth below flange: 75.5 mm
  • Flange thickness: 8 mm
  • Panel cutout: 185 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 222
  • Weight with individual packaging: 0.98Kg

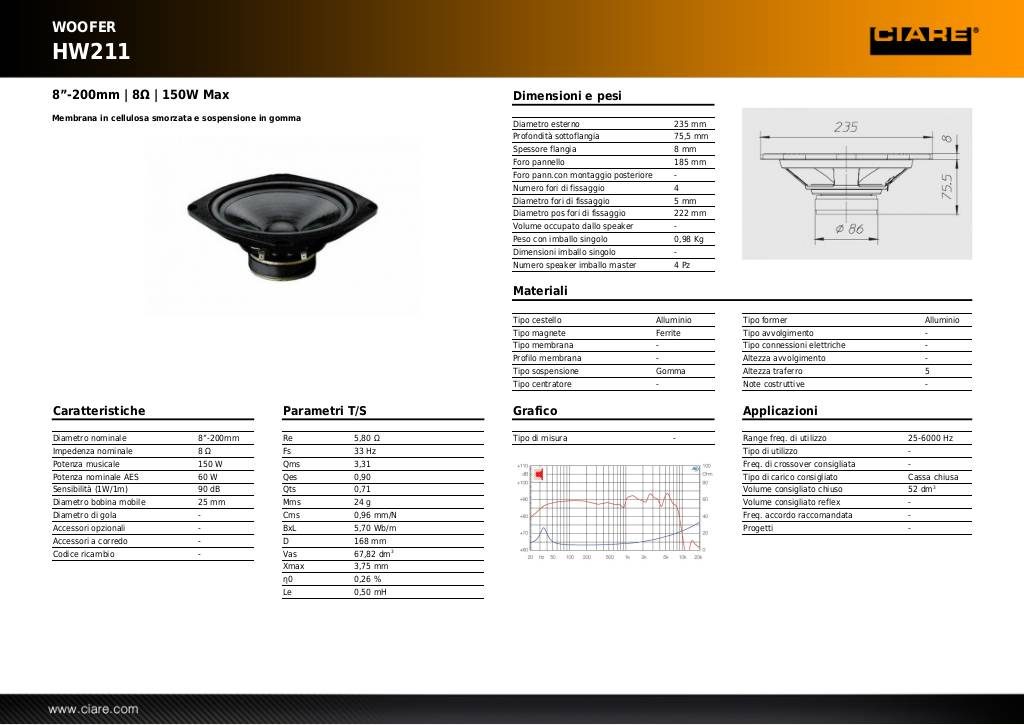

Scheda tecnica

20131104110756-hw211.pdf
