HW205 200mm woofer

Ciare

Discontinued

Your price:
€ 124,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
35 - 5.000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
3,3 Kg
Installation Depth
92,5 mm
Voice Coil Diameter
50 mm

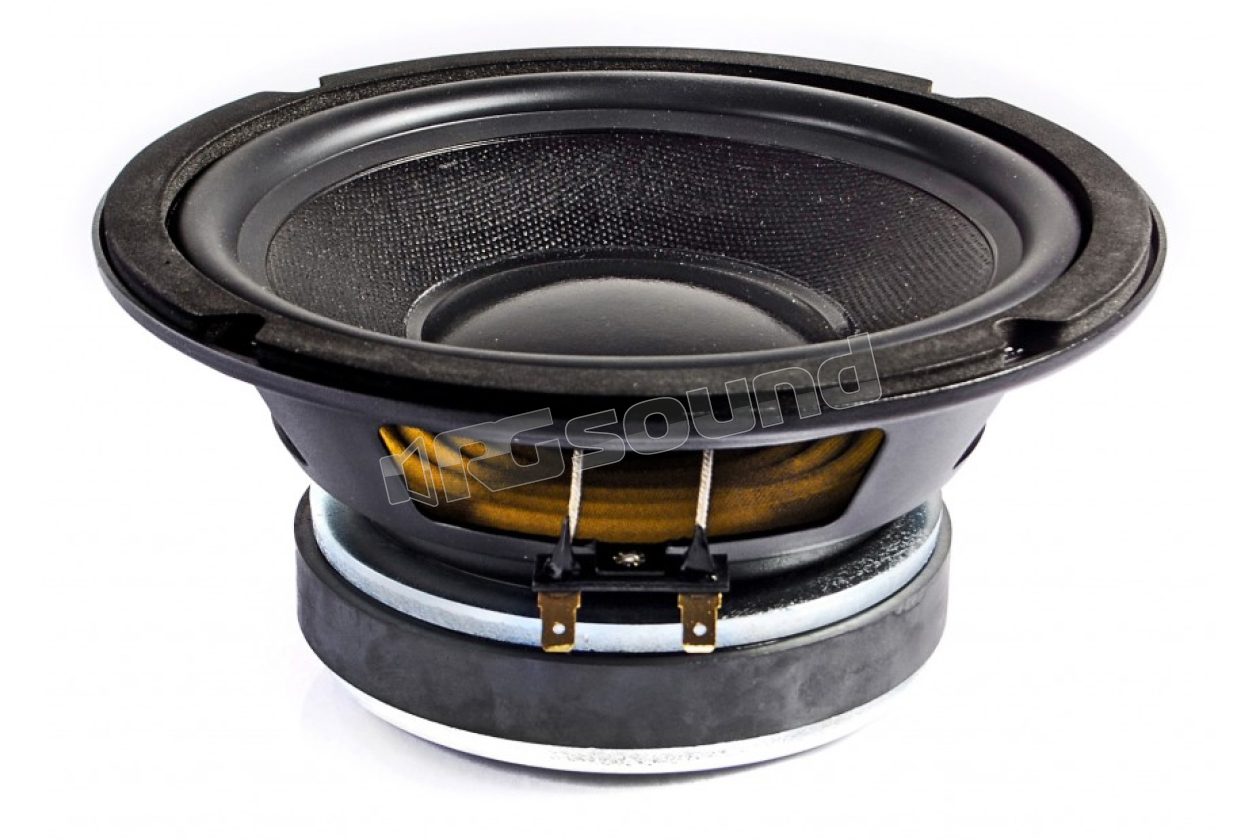

Ciare HW205 woofer 200mm with polypropylene cone and rubber surround. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of each component.

HW205 Features

  • Music power: 400 W
  • Nominal AES power: 200 W
  • Nominal diameter: 8''-200mm
  • Nominal impedance: 8Ω
  • Voice coil: 50mm
  • Sensitivity 1W/1m: 91 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 26 dm3
  • Recommended tuning frequency: 47 Hz
  • Frequency range of use: 35-5000 Hz

HW205 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Surround type: Rubber
  • Former type: Kapton
  • Voice gap height: 8 mm

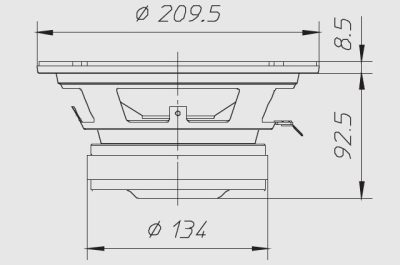

HW205 Dimensions

  • Outer diameter: 209.5 mm
  • Depth under flange: 92.5 mm
  • Flange thickness: 8.5 mm
  • Panel hole: 182 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Diameter pos mounting holes: 198.5
  • Weight with single packaging: 3.30 Kg

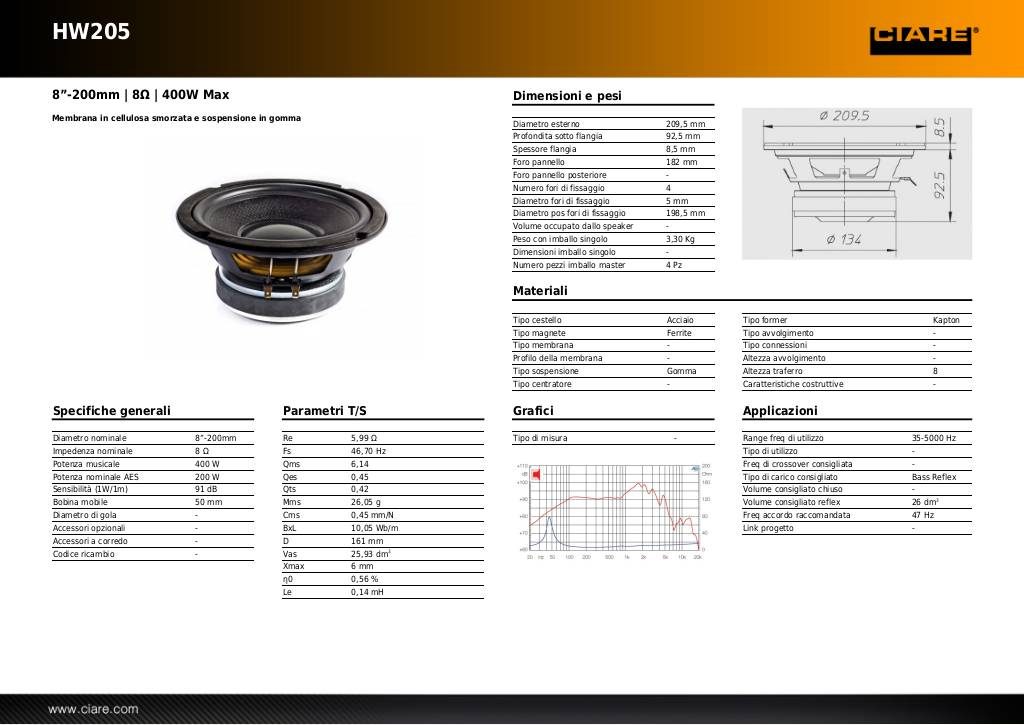

Scheda tecnica

20140228171610-hw205.pdf

1 8 Ohm speaker Ciare woofer HW205
