HW176 165mm woofer

Ciare

Discontinued

Your price:
€ 139,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
45 - 7.000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Weight
2,6 Kg
Installation Depth
84,5 mm
Voice Coil Diameter
38 mm

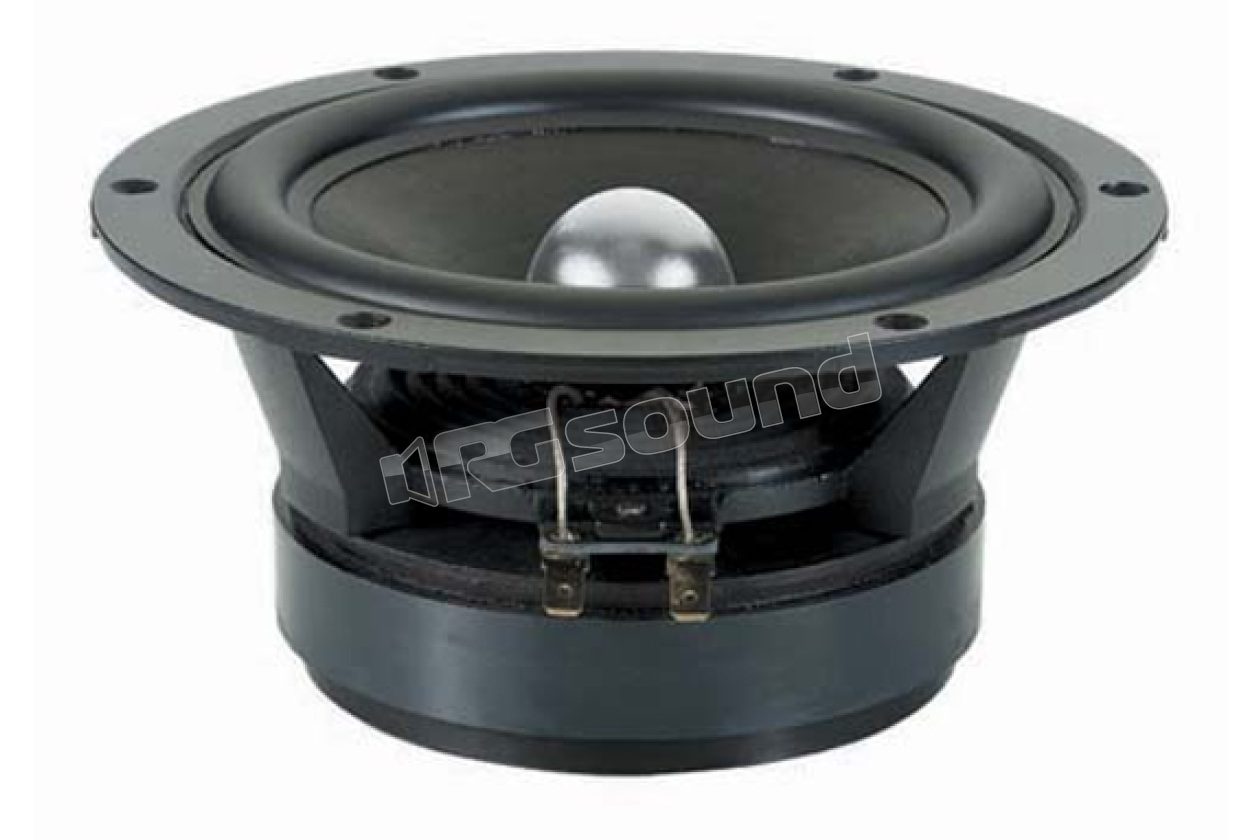

Ciare HW176 woofer 165mm with damped cellulose membrane, rubber suspension, ogive phase plug. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HW176 Features

  • Musical power: 240 W
  • AES nominal power: 120 W
  • Nominal diameter: 6.5''-165mm
  • Nominal impedance: 8Ω
  • Voice coil: 38mm
  • Sensitivity 1W/1m: 92 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 13 dm3
  • Recommended tuning frequency: 66 Hz
  • Frequency range of use: 45-7000 Hz

HW176 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Kapton
  • Air gap height: 6 mm

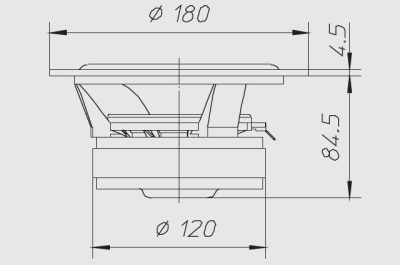

HW176 Dimensions

  • External diameter: 180 mm
  • Depth under flange: 84.5 mm
  • Flange thickness: 4.5 mm
  • Panel hole: 146 mm
  • Number of mounting holes: 6
  • Diameter of mounting holes: 4.5 mm
  • Diameter position mounting holes: 167
  • Weight with single packaging: 2.60 Kg

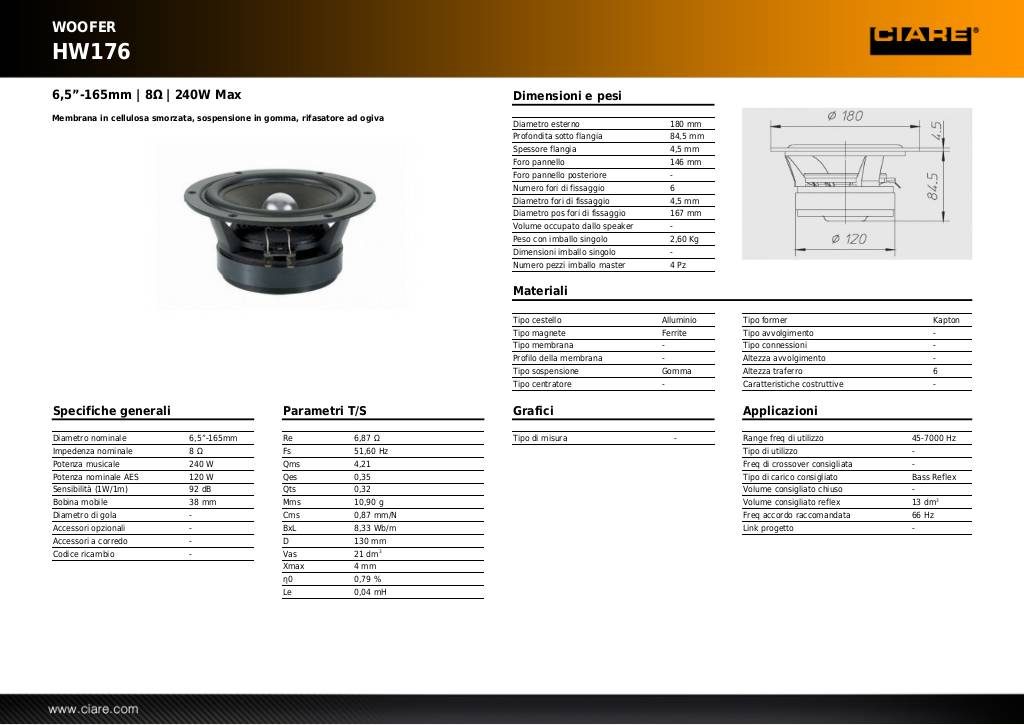

Scheda tecnica

20140228170826-hw176.pdf

1 Ciare HW176 woofer 8 Ohm speaker
