HW135 150mm woofer

Ciare

Discontinued

Your price:
€ 113,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
150 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
50 - 8.000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
1,4 Kg
Installation Depth
70 mm
Voice Coil Diameter
32 mm

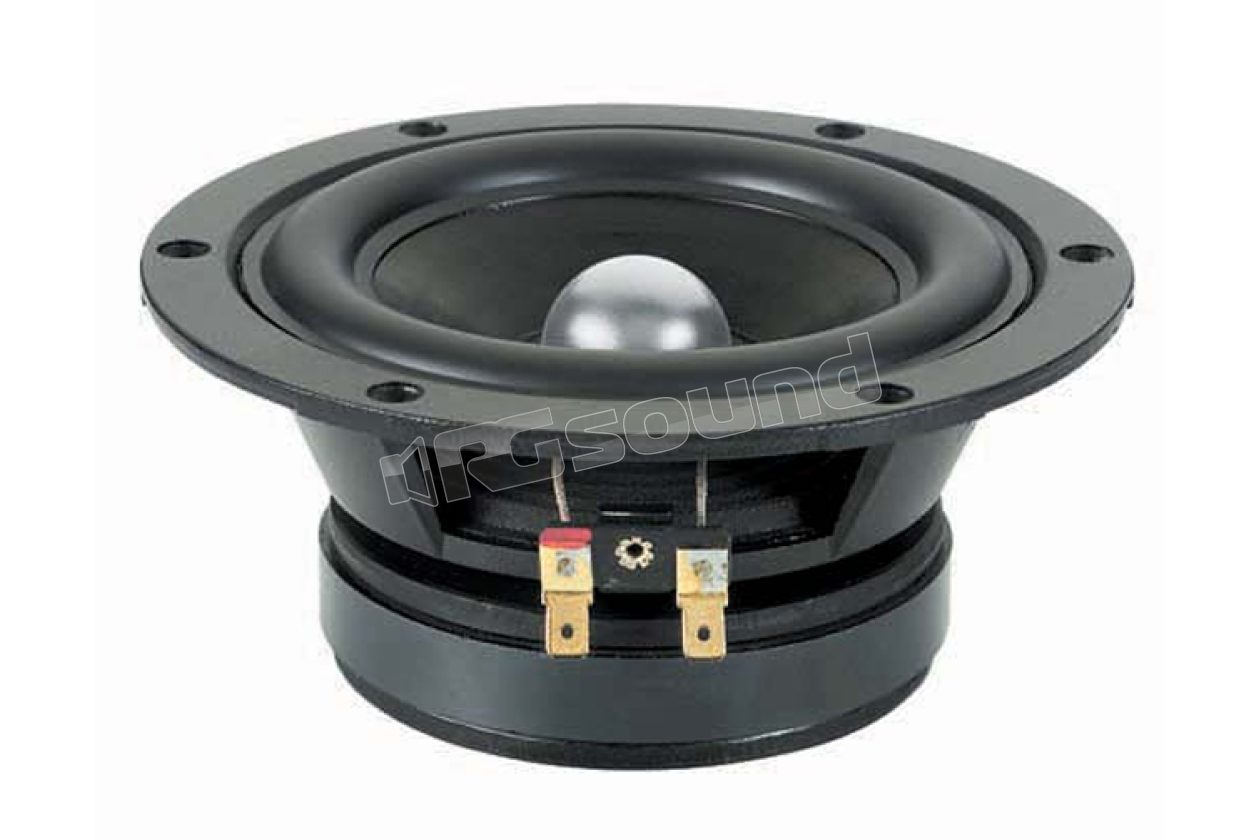

Ciare HW135 woofer 150mm with dampened cellulose membrane, rubber suspension and ogival phase plug. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HW135 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 150mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 89 dB
  • Frequency response 50-8,000 Hz

HW135 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Kapton
  • Air gap height: 6 mm

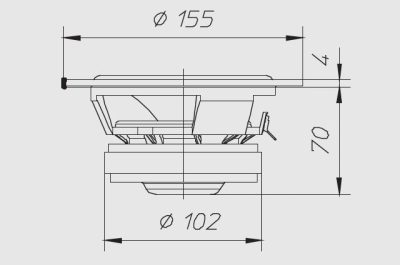

HW135 Dimensions

  • External diameter: 155 mm
  • Depth sub-flange: 70 mm
  • Flange thickness: 4 mm
  • Panel hole: 122 mm
  • Number of mounting holes: 6
  • Mounting hole diameter: 4.5 mm
  • Mounting hole position diameter: 141
  • Weight with single package: 1.42 Kg

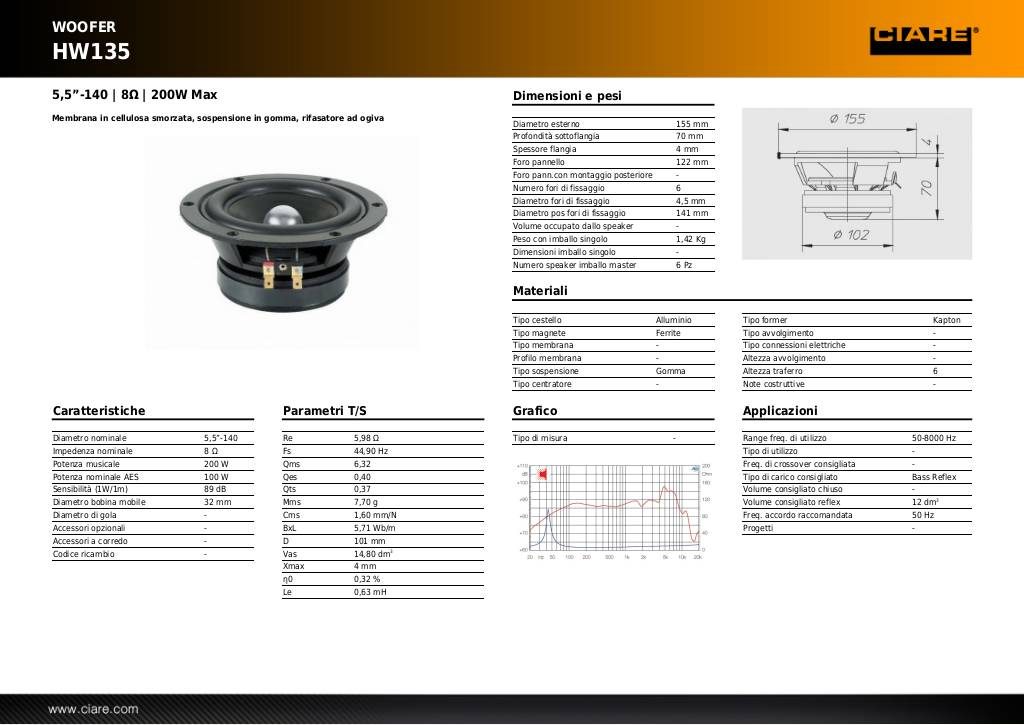

Scheda tecnica

20131104094944-hw135.pdf
