HT201N

Ciare

Discontinued

Your price:
€ 73,00
Price per single item (VAT included)
Type
Tweeter
Dome Size
20 mm
MAX Power
100 Watt
RMS Power
50 Watt

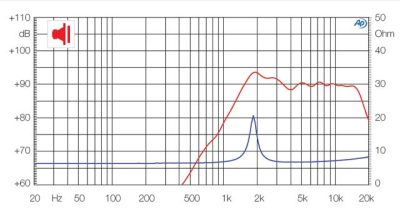

Frequency Response
3.000 - 20.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Outer Diameter
110 mm
Installation Depth
36 mm
Tweeter Material
Neodimio

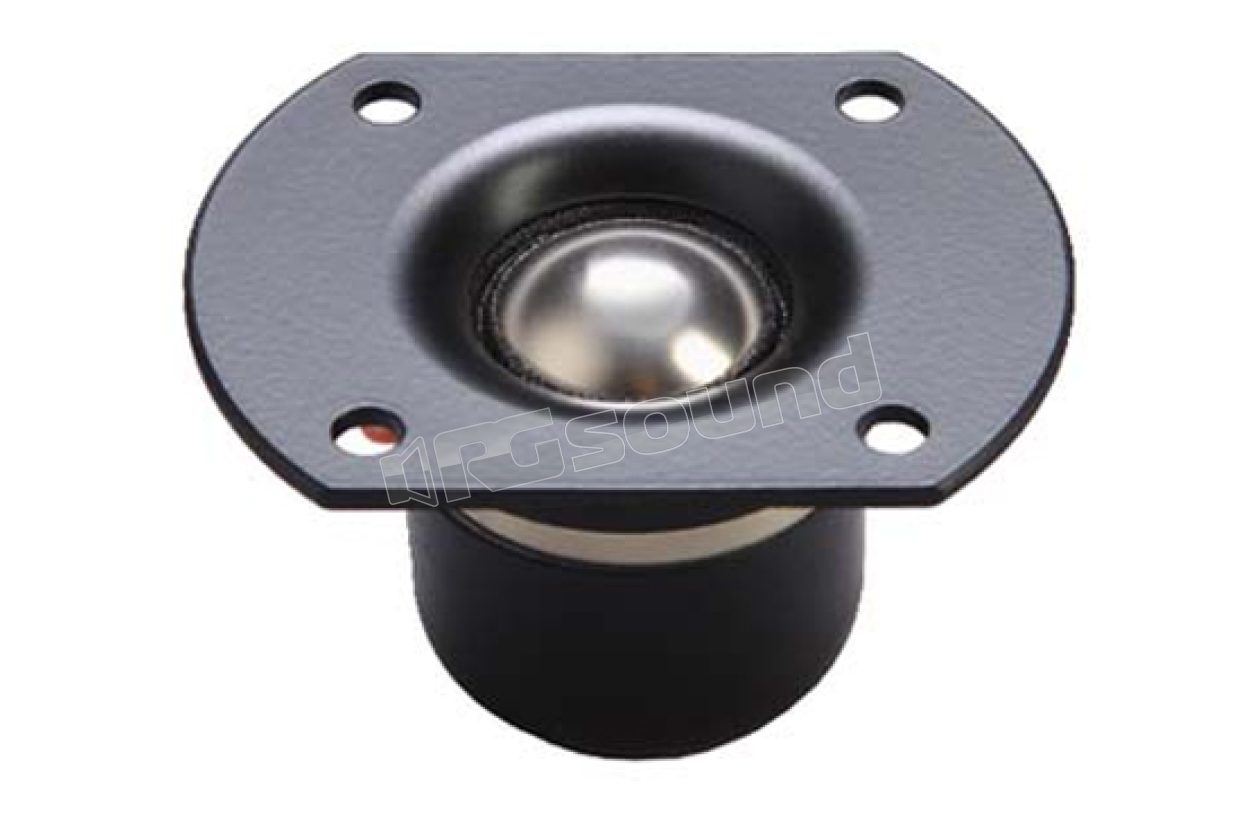

Ciare HT201N Tweeter with titanium dome, polymer suspension, rear load volume, aluminum flange, neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HT201N Features

  • Music power: 100 W
  • Nominal power AES: 50 W
  • Nominal impedance: 8Ω
  • Voice coil: 20mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended crossover frequency: 3500 Hz
  • Usage frequency range: 3000-20000 Hz

HT201N Materials

  • Magnet type: Neodymium
  • Former type: Kapton
  • Air gap height: 3 mm

HT201N Dimensions

  • Outer diameter: 110 mm
  • Depth under flange: 17 mm
  • Flange thickness: 2.5 mm
  • Panel hole: 83 mm
  • Number of mounting holes: 4
  • Mounting holes diameter: 5 mm
  • Mounting holes position diameter: 96

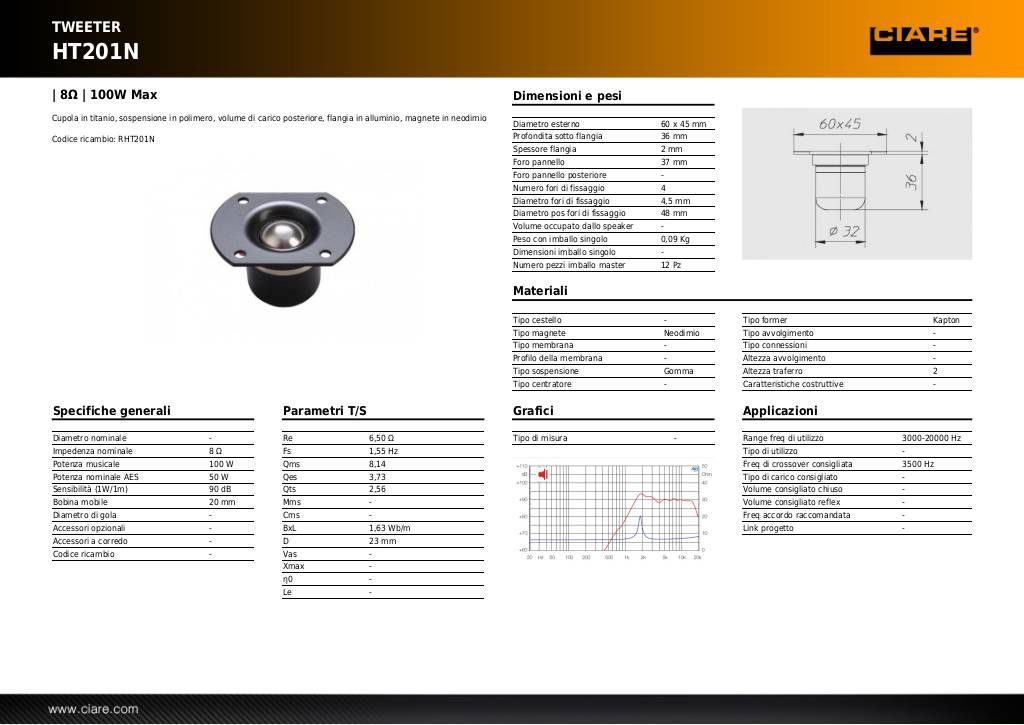

Scheda tecnica

20140228180005-ht201n.pdf
