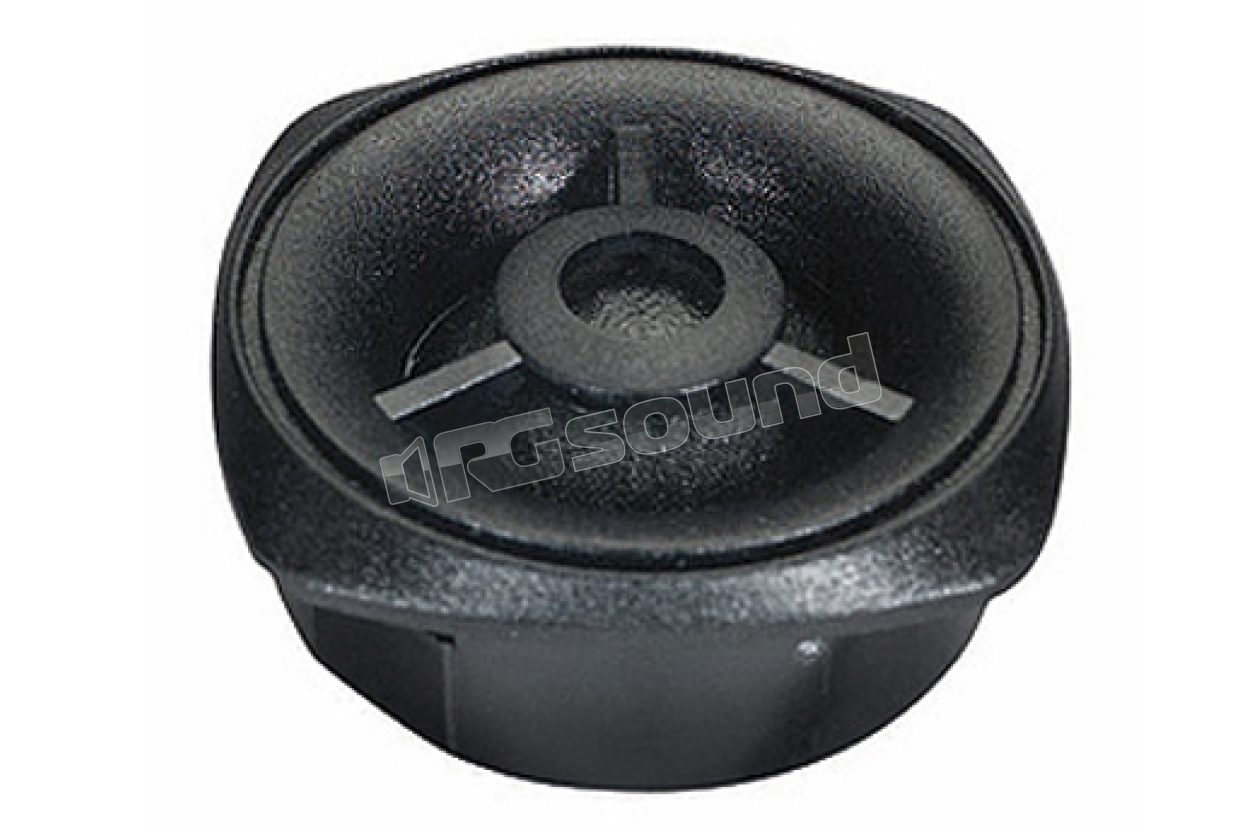

HT198N 37mm tweeter

Ciare

Discontinued

Your price:
€ 72,00
Price per pair (VAT included)
Type
Tweeter
Speaker Size
Other sizes
MAX Power
100 Watt
RMS Power
50 Watt

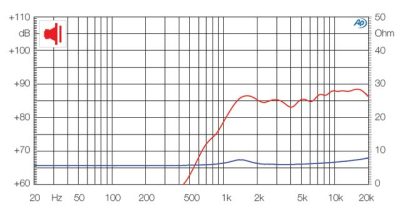

Frequency Response
3.000 - 20.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
0,05 Kg
Installation Depth
37 mm
Voice Coil Diameter
20 mm

Ciare HT198N tweeter 37mm with cellulose fiber diaphragm and surround. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allow the company to achieve the highest quality standards in the realization of each component.

HT198N Features

  • Max power: 100W
  • Rated power: 50W
  • Nominal impedance: 8Ω
  • Diameter: 37mm
  • Mobile coil diameter: 20mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 3,000-15,000 Hz

HT198N Materials

  • Magnet type: Neodymium
  • Former type: Kapton
  • Air gap height: 1.5 mm

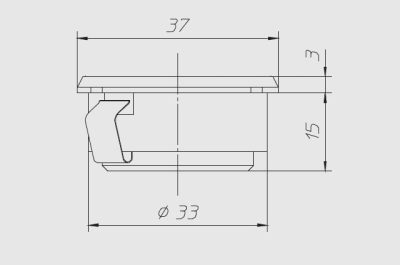

HT198N Dimensions

  • External diameter: 37 mm
  • Sub-flange depth: 15 mm
  • Flange thickness: 3 mm
  • Panel hole: 33 mm
  • Weight with single packaging: 0.05 Kg

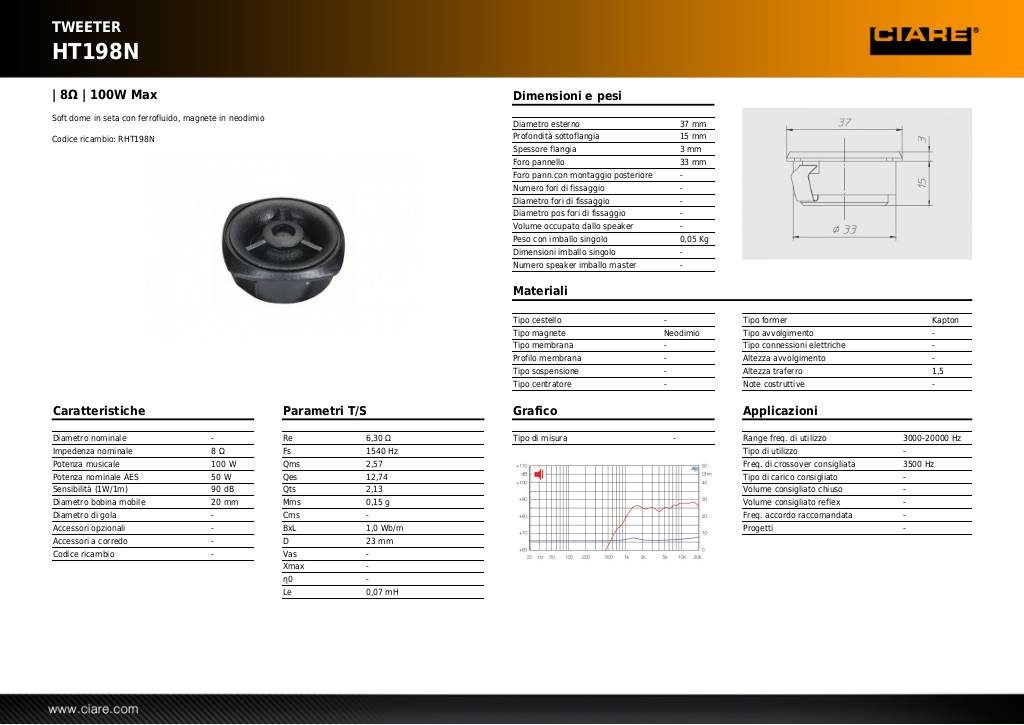

Scheda tecnica

20131031160423-ht198.pdf
