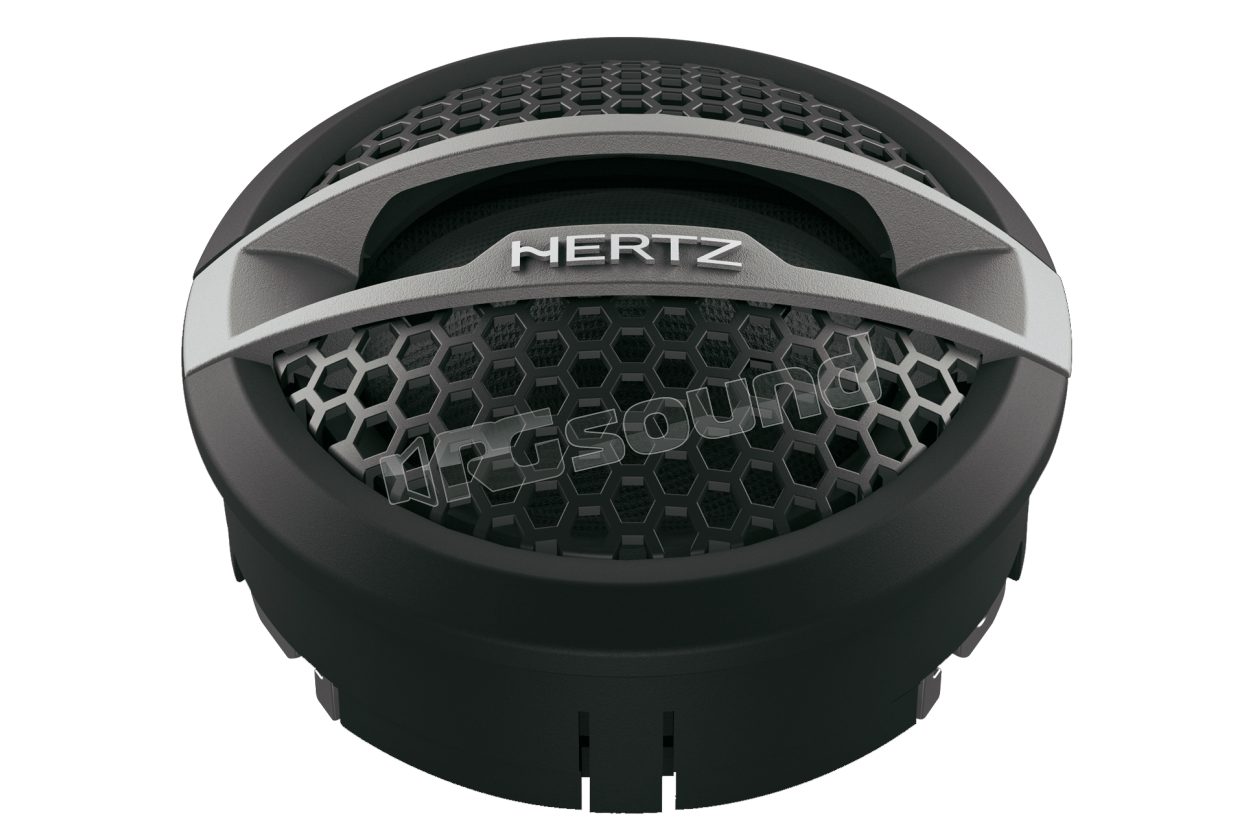

HT 20.4 20mm tweeter

Hertz

Discontinued

Your price:
€ 55,10
Price per pair (VAT included)
Type
Tweeter
Dome Size
20 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
1900 - 22000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
38 mm
Installation Depth
14 mm
Tweeter Material
tetolon fiber

Hertz HT 20.4 pair of 20mm tweeters recommended for two-way or multi-way systems, or as a supertweeter, small in size but big in performance. Neodymium magnet, dome made of Tetolon® and voice coil with 20 mm diameter cooled with ferrofluid.

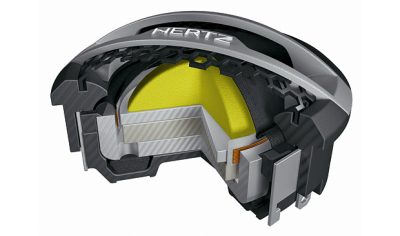

The HT20.4 tweeters are equipped with a rear acoustic chamber to extend the frequency response downward without the occurrence of resonance phenomena. The high-energy magnetic group and the included supports guarantee minimum bulk, for easy installation and correct positioning in any vehicle cabin.

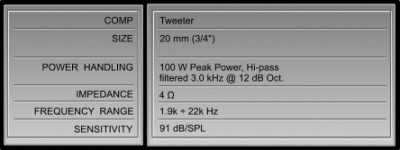

HT 20.4 main features

Size 20 mm (3/4")

Maximum power 100 W

Impedance 4 Ω

Frequency response 1.9k ÷ 22 kHz

Sensitivity 91 dB SPL

Voice coil Ø 20 mm

Neodymium magnet

Tetolon dome

Strengths of the HT 20.4 tweeter

Tweeter with soft Tetolon® dome.
Moving voice coil ø 20 mm, cooled with ferrofluid.
High-energy neodymium magnet.
Rear acoustic chamber.

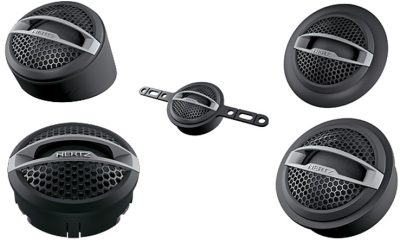

Adjustable cup and accessories for flush and recessed mounting.
High-current cables with high flexibility.

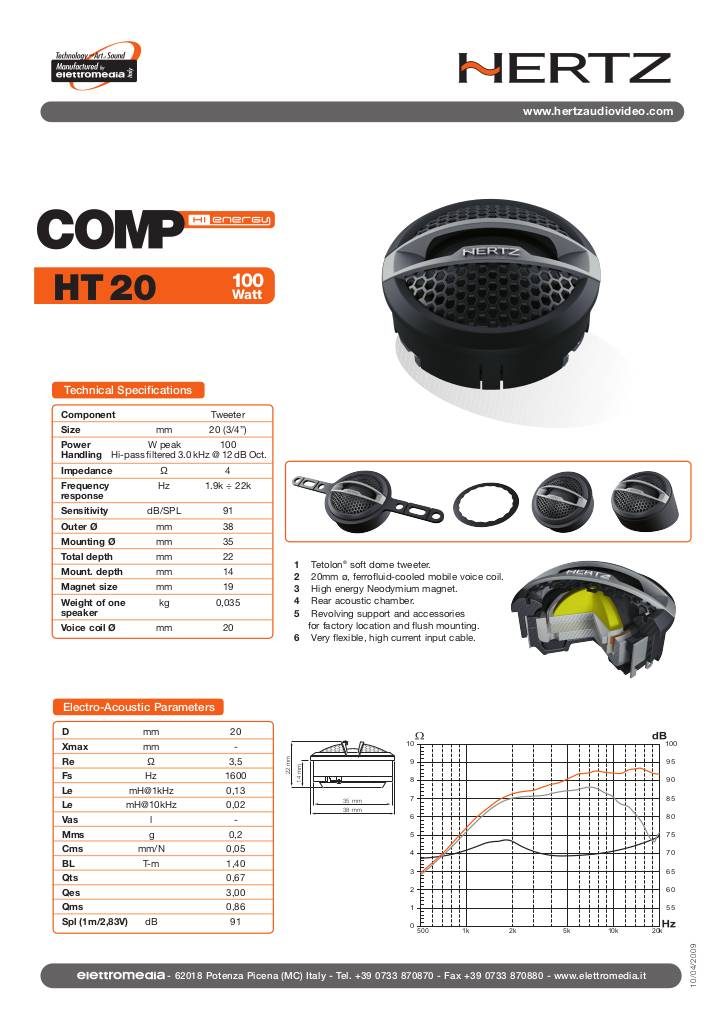

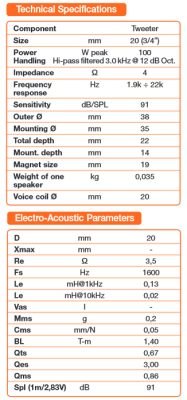

Scheda Tecnica - specifiche

20090703084614-hertz-hienergy-ht20.pdf
Discontinued
