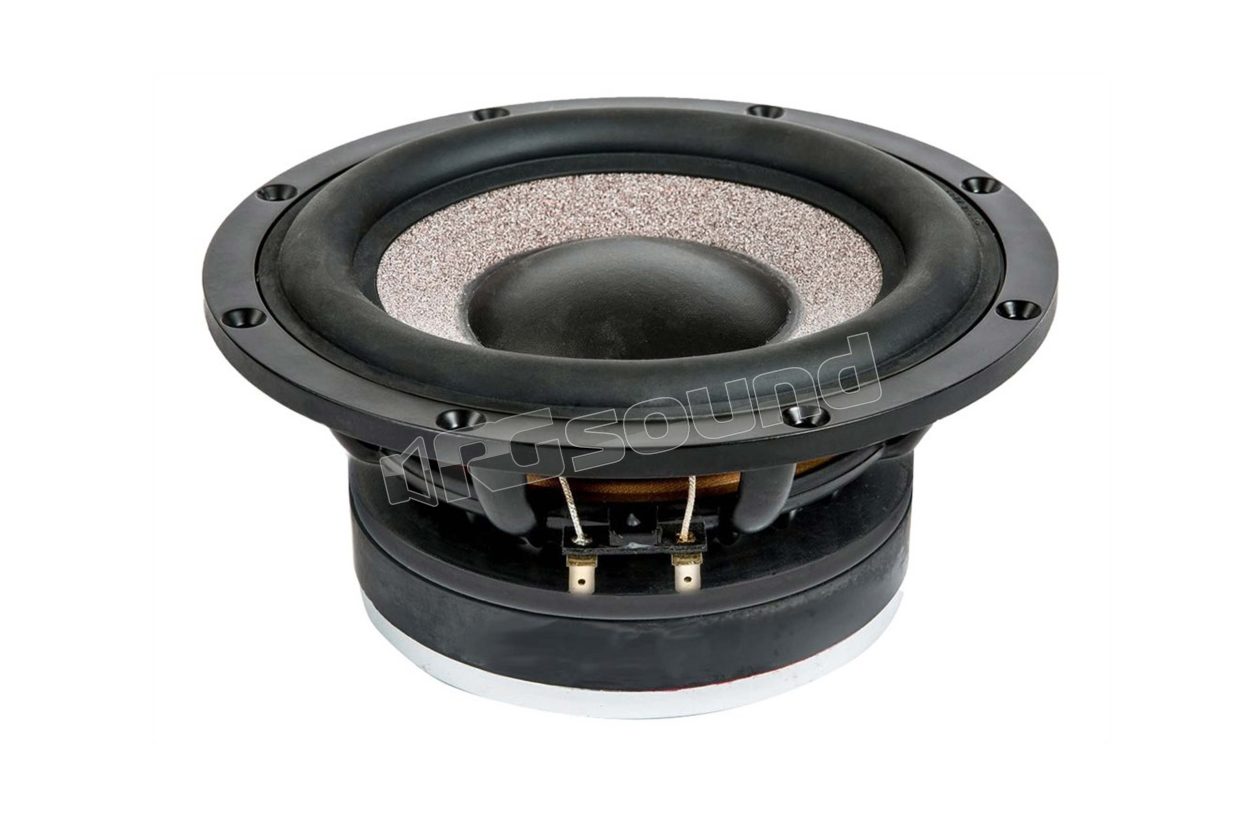

HSG200-22 20cm subwoofer with dual 2 Ohm voice coil

Ciare
Your price:
€ 159,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
800 Watt
RMS Power
350 Watt
Sensitivity
91 dB
Impedance
2+ 2 Ohm
Installation Depth
94 mm
Woofer Material
Cellulosa e sfera di vetro

Ciare HSG200-22 20cm subwoofer with 800 W, designed for compact enclosures

Reinforced paper cone with high thickness and special damping treatment with glass sphere. Quick response to transients. Basket optimized for FEM design.

Ciare HSG200-22 main features

  • Maximum power (W) 800
  • Nominal power AES (W) 350
  • Nominal diameter ('' / mm) 8/200
  • Nominal impedance (Ohm) 2 + 2
  • Voice coil diameter (mm): 75
  • Sensitivity 1W / 1m (dB) 91
  • Aluminum basket
  • Magnet type Ferrite
  • Cone Material High thickness paper, treated with glass sphere
  • Rubber suspension material
  • Spider material Fabric
  • Surround material Fiberglass
  • Winding material Copper
  • Connector type Faston
  • Cone shape Exponential
  • Gap height 10 mm

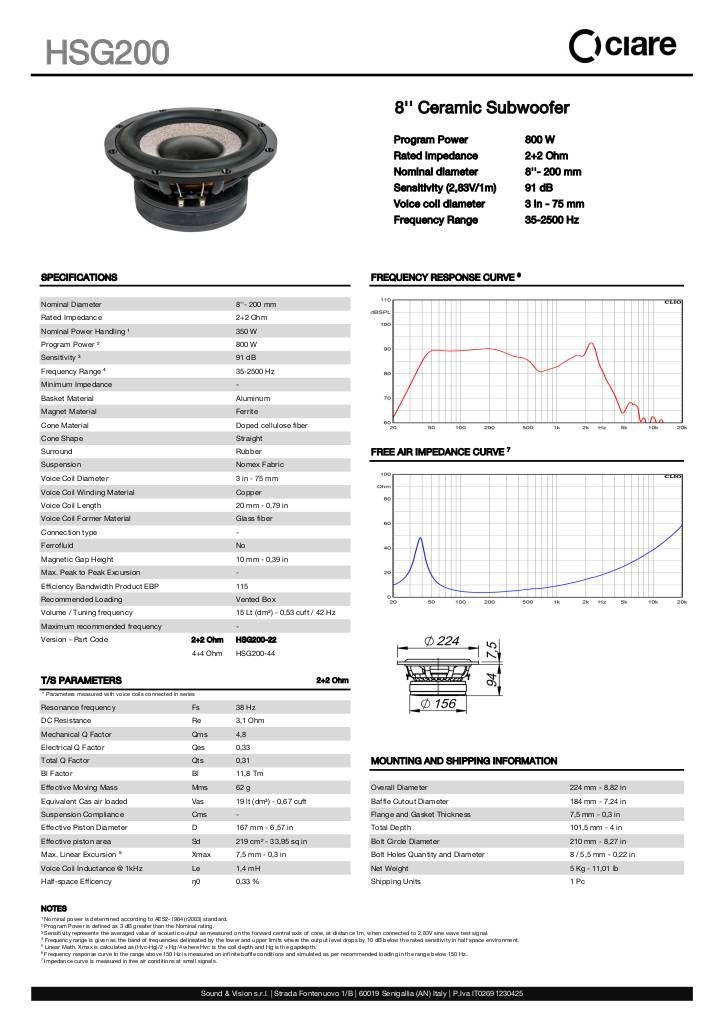

Scheda tecnica

n-20250410091824-ciare-hsg200-22-en.pdf

Ciare HSG200-22 technical specifications

  • Overall diameter 224 mm
  • Total depth 94 mm
  • Flange thickness 7.5 mm
  • Front baffle mounting cutout diameter 184 mm
  • Number of mounting holes 8
  • Mounting hole diameter (mm) 5.5 mm
  • Bolt circle diameter 210 mm
  • Re 3.1 ohm
  • Fs 38 Hz
  • Qms 4.8
  • Qes 0.33
  • Qts 0.31
  • Mms 62 g
  • D 167 mm
  • Vas 19 l
  • BxL 11.8 Tm
  • Xmax linear mathematical 7.5 mm
  • Le (1kHz) 1.4 mH
