HSG160-44

Ciare
Your price:
€ 114,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
165 mm
MAX Power
450 Watt
RMS Power
220 Watt
Sensitivity
88.5 dB
Impedance
4 + 4 Ohm
Installation Depth
77 mm
Woofer Material
Cellulosa e sfera di vetro

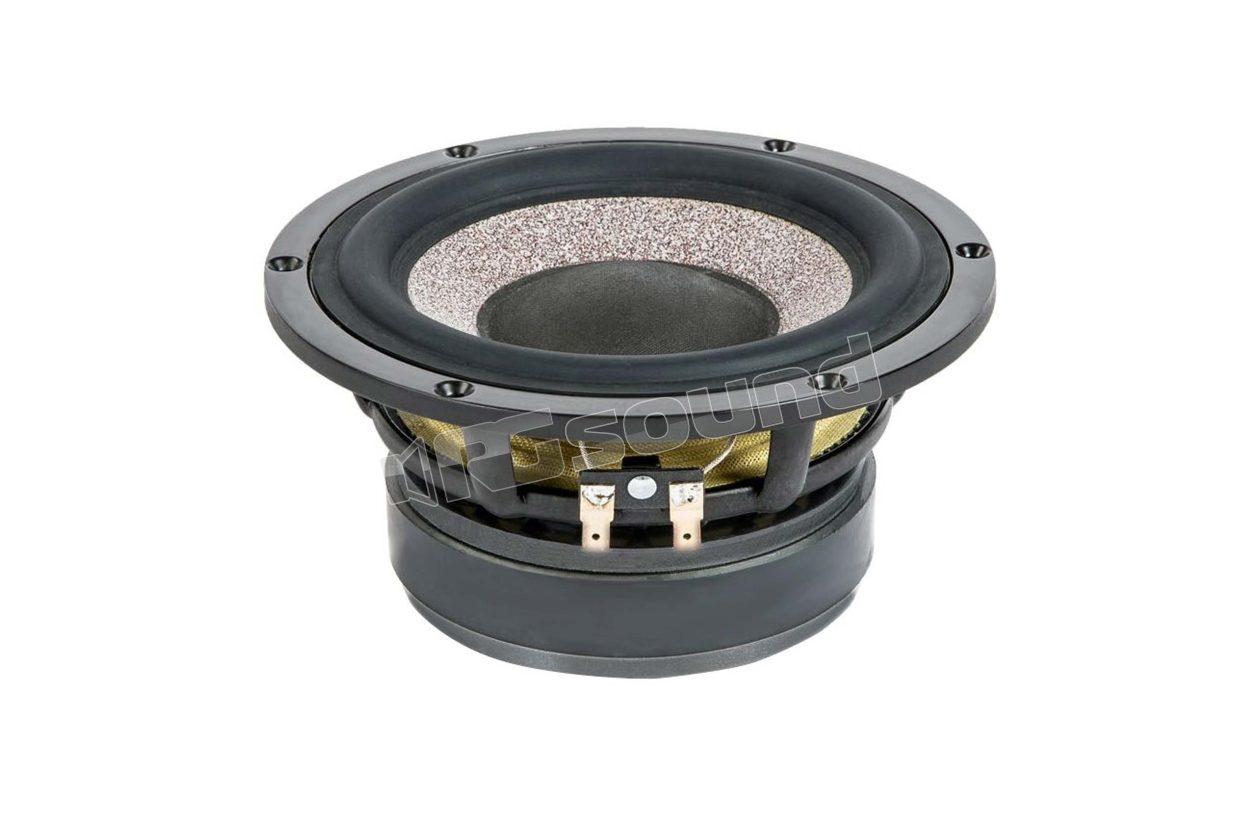

Ciare HSG160-44 450 W subwoofer, dual 4 Ohm coil, designed for small volume enclosures. Special damping treatment with glass sphere. High thickness reinforced paper cone, fast transient response. FEM design optimized basket.

Aluminum basket
Ferrite magnet
High thickness paper cone, treated with glass sphere
Rubber suspension
Fabric spider
Fiberglass former
Copper coil
Faston connector type
Exponential shaped cone
Gap height 8 mm

Maximum power (W) 450
Nominal power AES (W) 220
Diameter ('' / mm) 6.5 / 165
Nominal impedance (Ohm) 4 + 4
Voice coil diameter (mm) 50
Sensitivity 1W / 1m (dB) 88.5

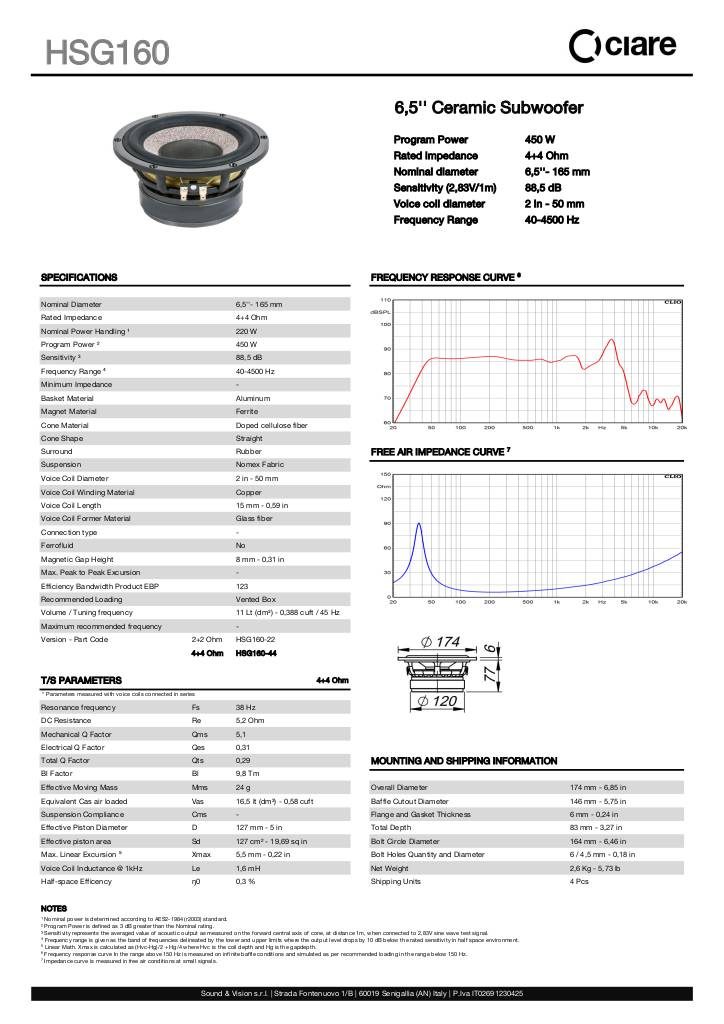

Scheda tecnica

n-20250411125610-ciare-hsg160-44-en.pdf

Ciare HSG160-22 technical specifications

Overall diameter 174 mm
Total depth 77 mm
Flange thickness 6 mm
Front baffle cutout mounted diameter 146 mm
Number of mounting holes 6
Mounting holes diameter (mm) 4.5 mm
Bolt circle diameter 164 mm

Re 5.2 ohm
Fs 38 Hz
Qms 5.1
Qes 0.31
Qts 0.29
Mms 24 g
D 127 mm
Vas 16.5 l
BxL 9.8 Tm
Linear Mathematical Xmax 5.5 mm
Le (1kHz) 1.6 mH

€ 114,00 Price incl. VAT
