HSB322-44

Ciare
Your price:
€ 166,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
320 mm
MAX Power
800 Watt
RMS Power
350 Watt
Sensitivity
92,5 dB
Impedance
4 + 4 Ohm
Installation Depth
120 mm
Woofer Material
Cellulosa trattata

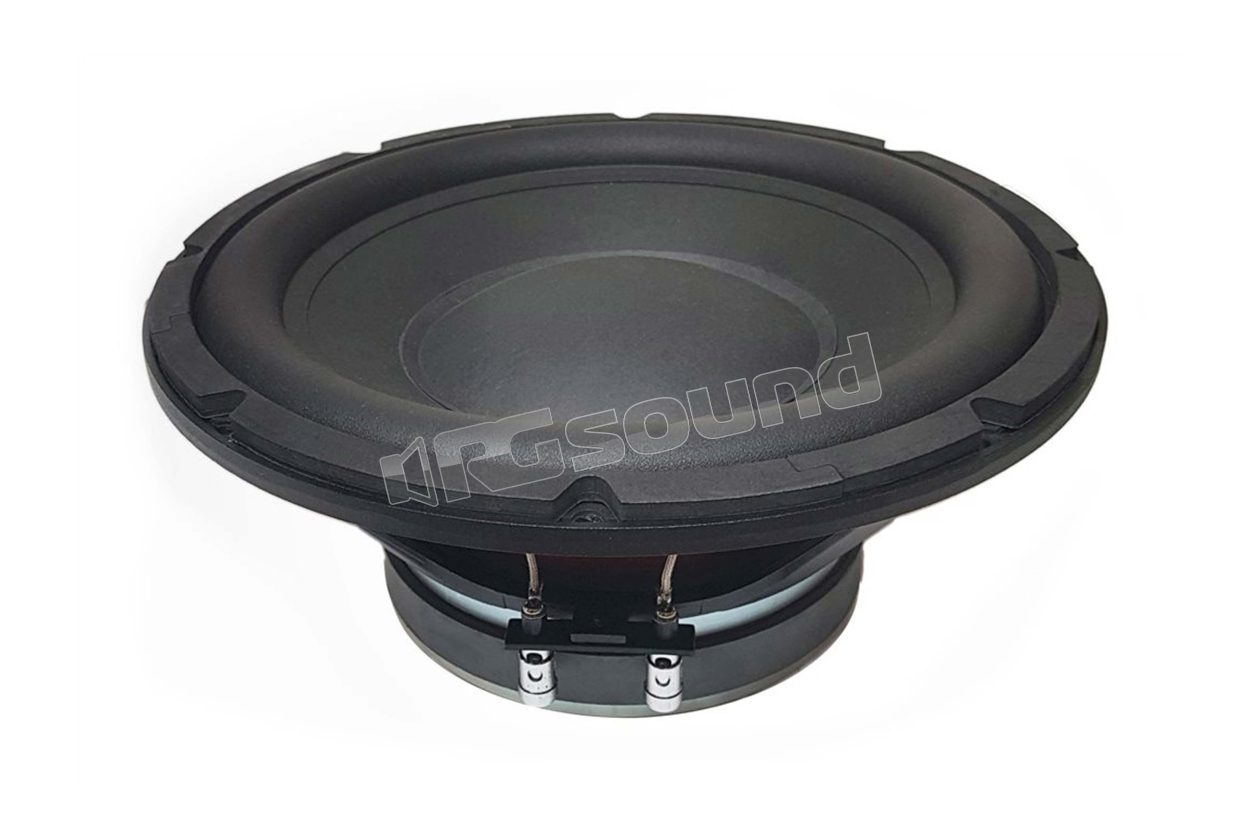

Ciare HSB322-44 subwoofer with special design for Hi-end application, with dual 4 Ohm voice coil

Aluminum basket
Ferrite magnet
Treated paper cone
Molded rubber surround
Nomex spider
Fiberglass former
Copper voice coil
Push connector

Musical power (W) 800
AES nominal power (W) 350
Nominal diameter ('' / mm) 12/320
Nominal impedance (Ohm) 4 + 4
Voice coil diameter (mm): 75
Sensitivity 1W / 1m (dB) 92.5

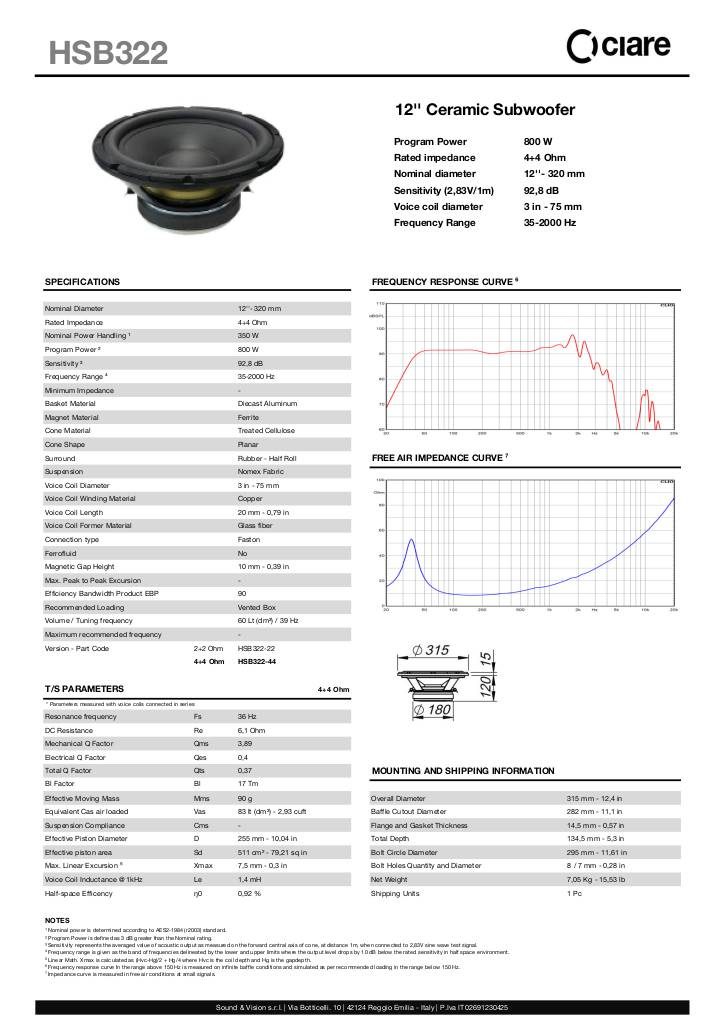

Scheda tecnica

n-20250411120653-ciare-hsb322-44-en.pdf

Ciare HSB320-44 technical specifications

Gap height 10 mm
Overall diameter 315 mm
Total depth 120 mm
Flange thickness 14.5 mm
Front baffle cutout mounted diameter 282 mm
Number of mounting holes 8
Mounting hole diameter (mm) 7 mm
Bolt circle diameter 295 mm

Re 6.15 ohm
Fs 36 Hz
Qms 5.1
Qes 0.38
Qts 0.35
Mms 99 g
Sd 255 mm
Vas 73 l
BxL 19 Tm
Linear Mathematical Xmax 7.5 mm
n 0.85
Le (1kHz) 1.4 mH
