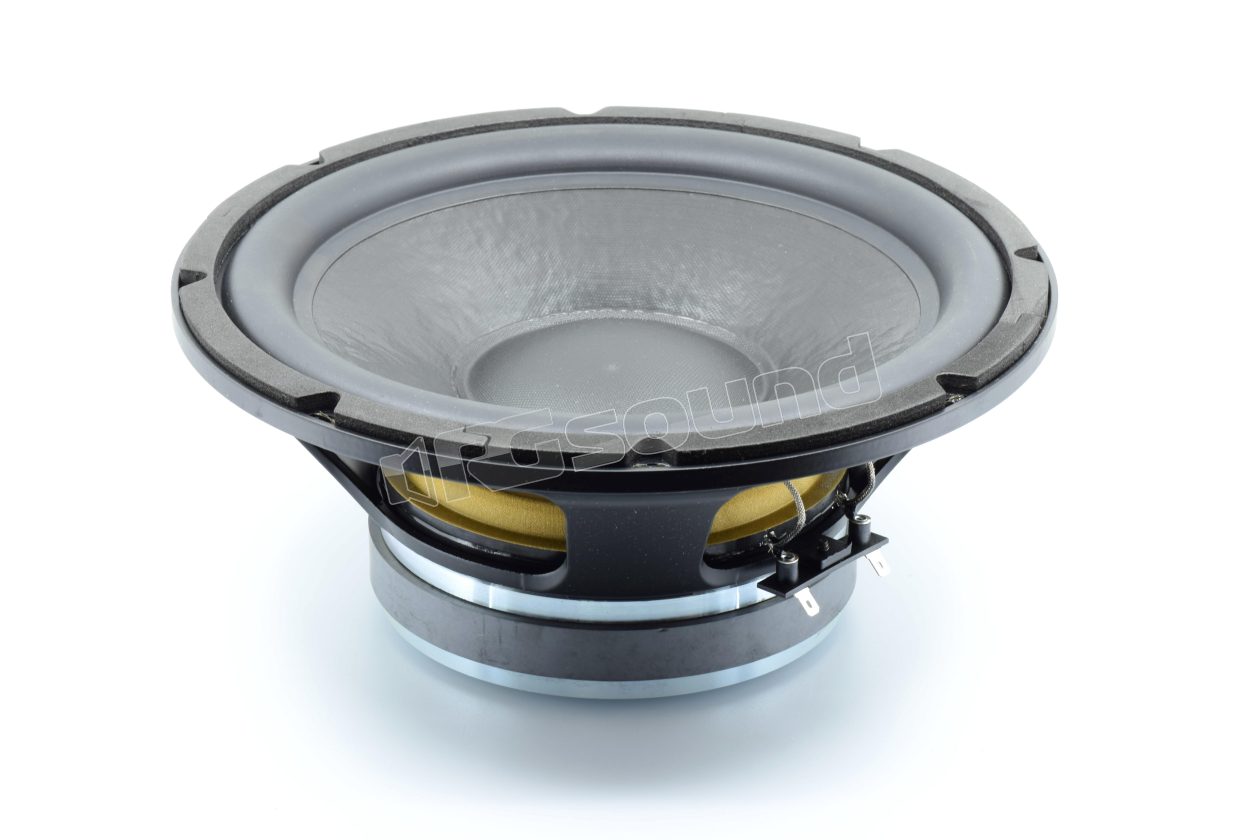

HSB322-22 Hi-end subwoofer

Ciare
Your price:
€ 166,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Ciare HSB322-22 subwoofer with special design for Hi-end application, with dual 2 Ohm voice coil

Aluminum basket
Ferrite magnet
Treated paper cone
Molded rubber suspension
Nomex spider
Fiberglass former
Copper voice coil
Push connector

Musical power (W) 800
AES nominal power (W) 350
Nominal diameter ('' / mm) 12/320
Nominal impedance (Ohm) 2 + 2
Voice coil diameter (mm): 75
Sensitivity 1W / 1m (dB) 92.5

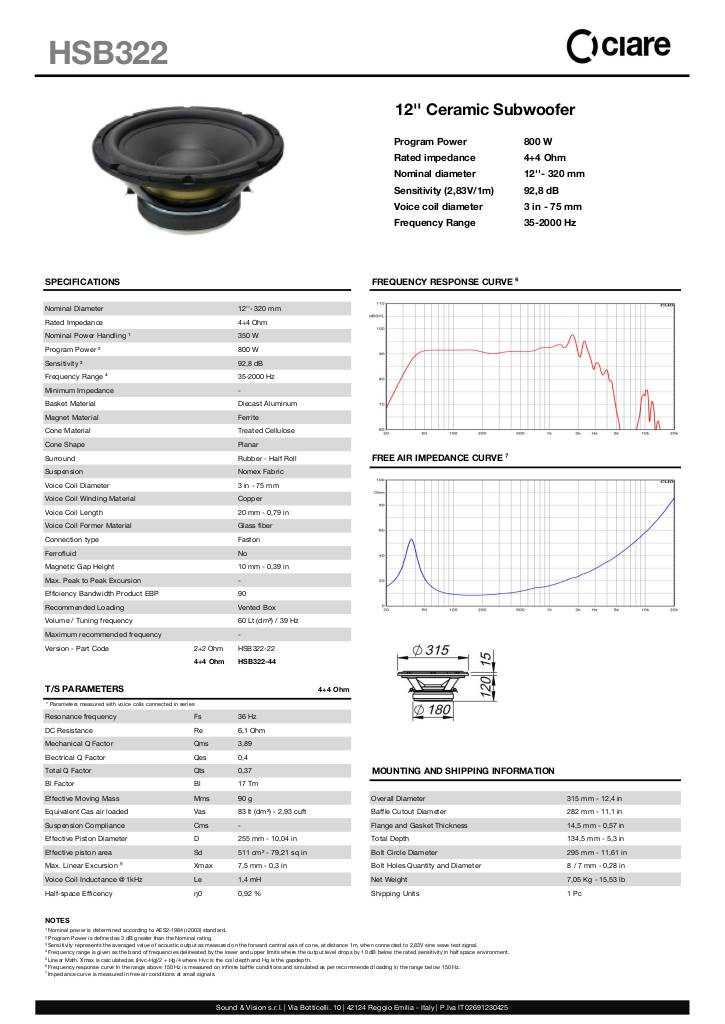

Scheda tecnica

n-20250411120653-ciare-hsb322-44-en.pdf

Ciare HSB320-44 technical specifications

Gap height 10 mm
Overall diameter 315 mm
Total depth 120 mm
Flange thickness 14.5 mm
Mounted front baffle cutout diameter 282 mm
Number of mounting holes 8
Mounting hole diameter (mm) 7 mm
Bolt circle diameter 295 mm

Re6.15 ohm
Fs36 Hz
Qms5.1
Qes0.38
Qts0.35
Mms99 g
D255 mm
Vas73 l
BxL19 Tm
Linear Mathematical Xmax7.5 mm
n0.85
Le (1kHz)1.4 mH

€ 166,00 Price incl. VAT
