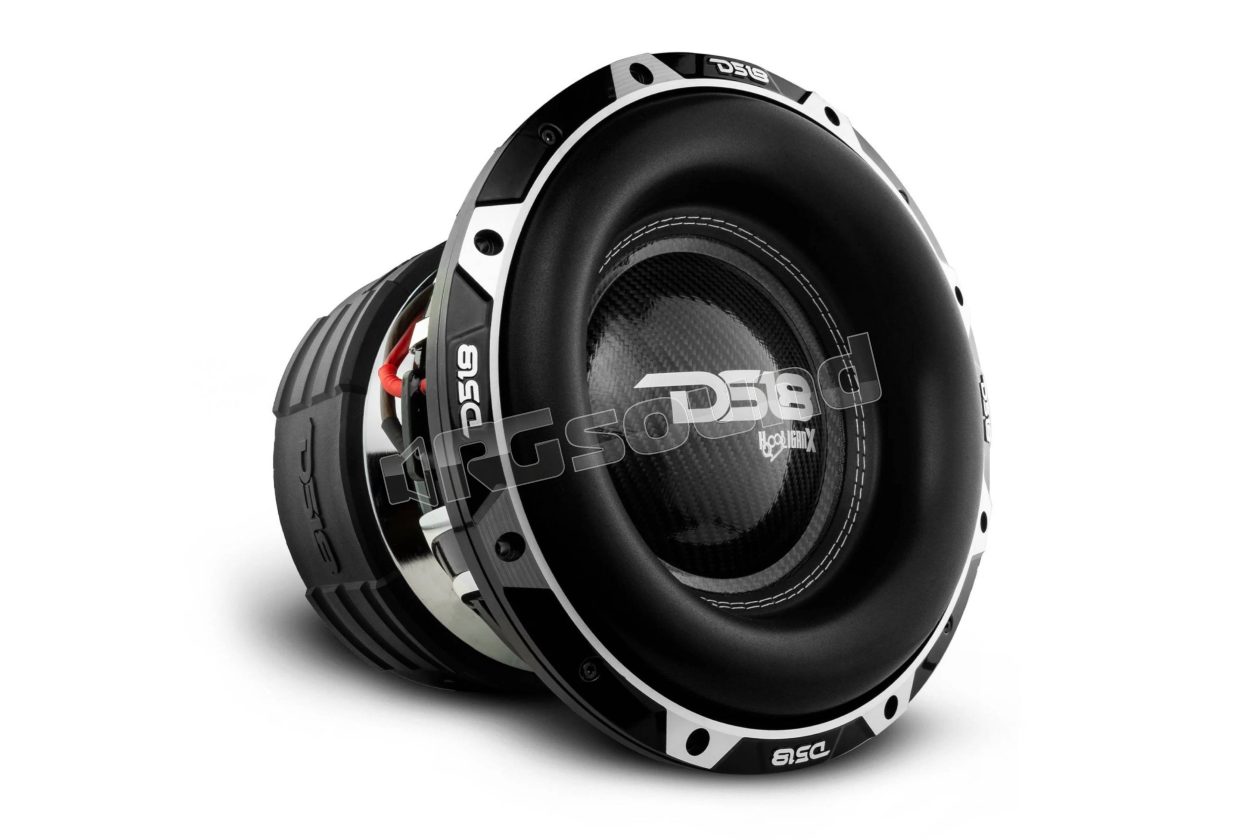

HOOL-X12.2DHE 12“ high-excursion subwoofer 4000 Watt

DS18

Coming soon

Your price:
€ 734,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
6000 Watt
RMS Power
4000 Watt
Frequency Response
20 - 500 Hertz
Sensitivity
87 dB
Impedance
2+2 Ohm

DS18 HOOL-X12.2DHE 12" High Excursion Subwoofer 4000 Watt

The 12" high excursion car subwoofer HOOL-X12.2DHE has been the best choice for enthusiasts. Built to guarantee power and durability. the larger spider and high excursion surround help lower the Resonance Frequency, making it even more powerful at subsonic frequencies.

With an FS equal to 26, this subwoofer guarantees low frequencies down to 20 Hz. The 4" black aluminum high power voice coil is able to handle 4000W RMS and 6000W MAX power, making it perfect for competition bass. Versatility is key and the HOOL-X12.2DHE can adapt to different types of enclosures. Whether you prefer 4th order, 6th order, ported boxes or large sealed boxes, this subwoofer will adapt well to any configuration that has sufficient space.

This version of the HOOLIGAN boasts a nominal diameter of 12" (304.8 mm) and a nominal impedance of 2+2 Ohm to amplify the performance and capabilities of this high power subwoofer. With a sensitivity of 87 dB and a frequency response ranging from 20Hz to 500Hz, this subwoofer guarantees the reproduction of every beat with stunning depth and precision.

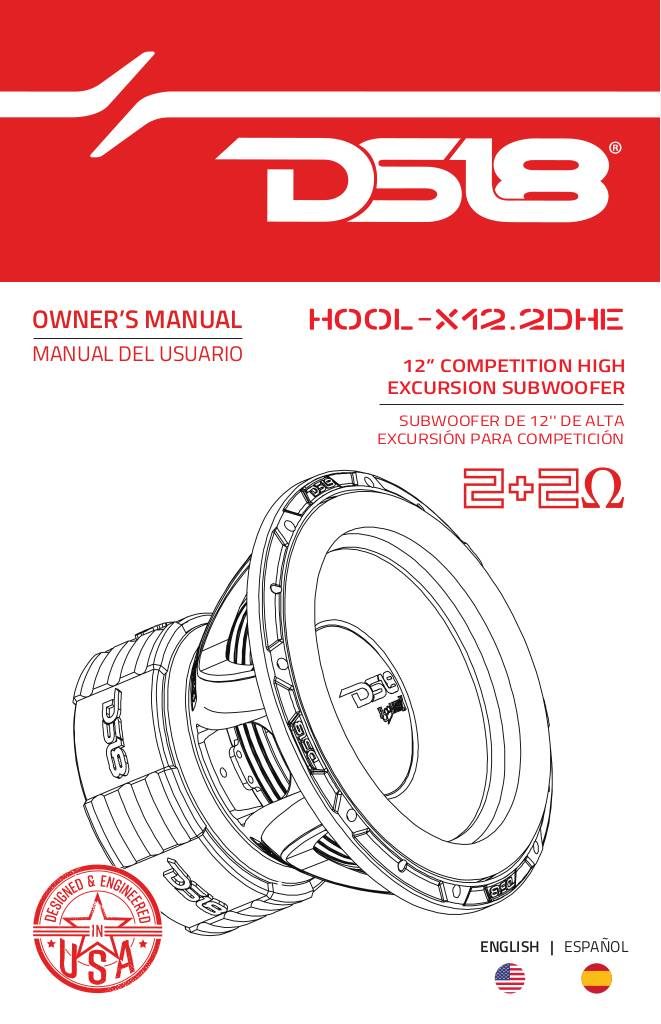

Scheda Tecnica

n-20241017105315-hool-x12-2dhe-scheda-tecnica.pdf

DS18 HOOL-X12.2DHE Technical Specifications

  • Nominal diameter 12" / 304.8 mm
  • Nominal impedance 2+2 ohm
  • RMS handling power 4000W
  • Maximum driving power 6000W
  • Sensitivity (1w/1m) 87dB
  • Frequency response 20-500Hz
  • Recommended high-pass crossover 80Hz
  • Voice coil diameter 4" / 99.8 mm
  • Voice coil material Black aluminum
  • Winding material CCAW
  • Cone material Unpressed paper
  • Dust cap material Carbon fiber
  • Surround material Foam
  • Basket material Aluminum
  • Basket color/finish Glossy black with machined aluminum
  • Magnet material Ferrite
  • Magnet weight 500 OZ
  • Displacement volume 4.8L / 0.169ft
  • Overall diameter 12.64" / 321 mm
  • Overall depth 11.6" / 295 mm
  • Baffle cutout for front mounting 11.2" / 285 mm
  • Mounting depth 10" / 255 mm
  • Motor diameter 9.96" / 253 mm
  • Product weight (lb) 87.5
  • Dimensions L x W x H (inches) 15 x 15 x 14
  • M/C weight (lb) 87.5
  • M/C dimensions L x W x H (inches) 15 x 15 x 14
