HMX 90 hi-end 93mm midrange

Silence Lab

Discontinued

Your price:
€ 341,90
Price per pair (VAT included)
Type
Midrange
Speaker Size
100 mm
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
91 dB
Impedance
3,4 Ohm
Installation Depth
49 mm
Midrange Cone Material
Cellulosa trattata

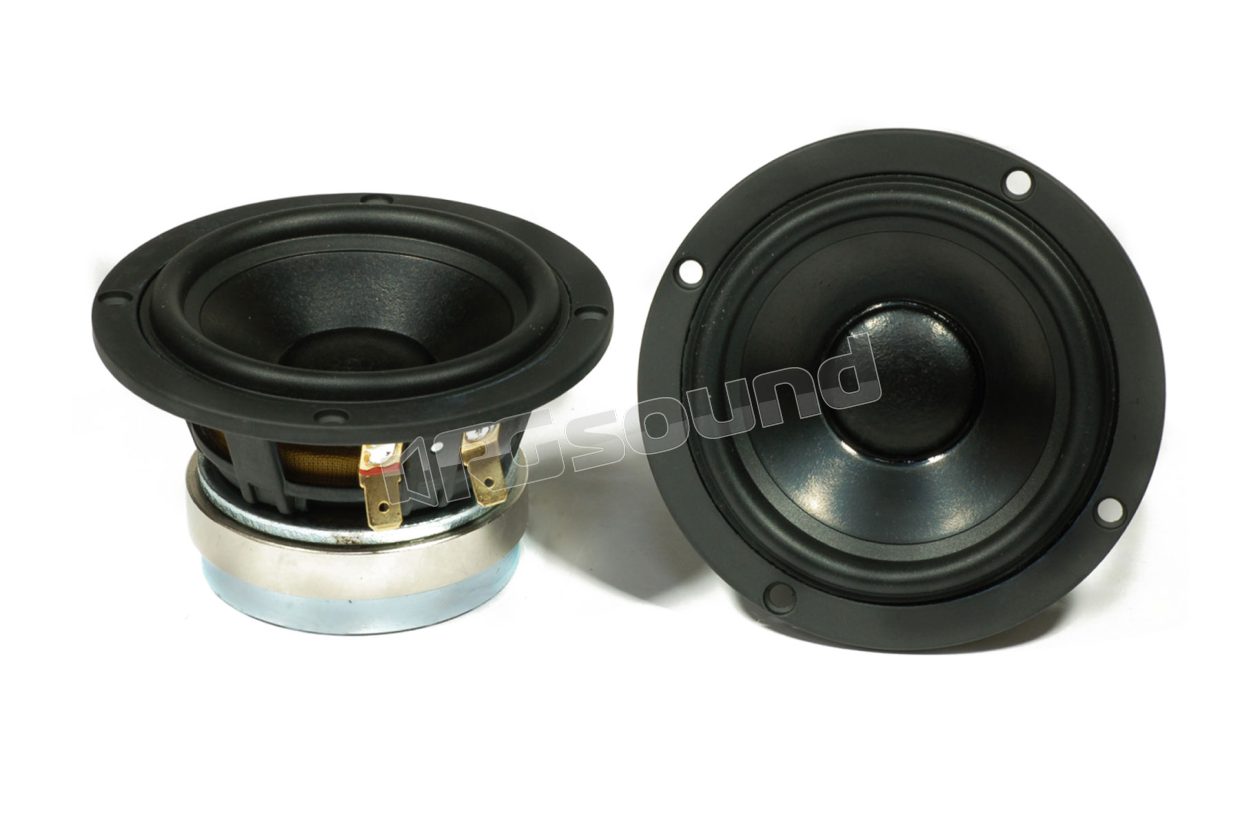

Silence Lab HMX 90 pair of 93mm midrange drivers

The component is designed to have a very extended response, up to 8000 Hz.
The rather low Fs allows use in pneumatic suspension from 250 Hz in complete safety.

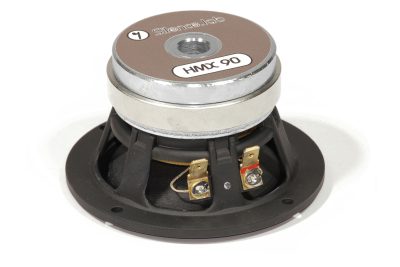

Treated cellulose cone, magnet with 2 Neodymium pads and aluminum basket are the notable construction features that combined with the reduced depth and excellent linearity make the component a reference in its price range.

External diameter 92 mm and installation depth 49 mm.

Performance

Re ohm 3.4
Fs Hz 98
Qm 4.47
Qe 0.29
Qt 0.27
Vas L 0.71
Xmax +/- --
D mm 63
Mms g 5.29
Cms mm/N 0.53
B*l Wb/m 6.09
Le mH 0.41
Sens dB 91
Pn Watt 80
Bob mm 25

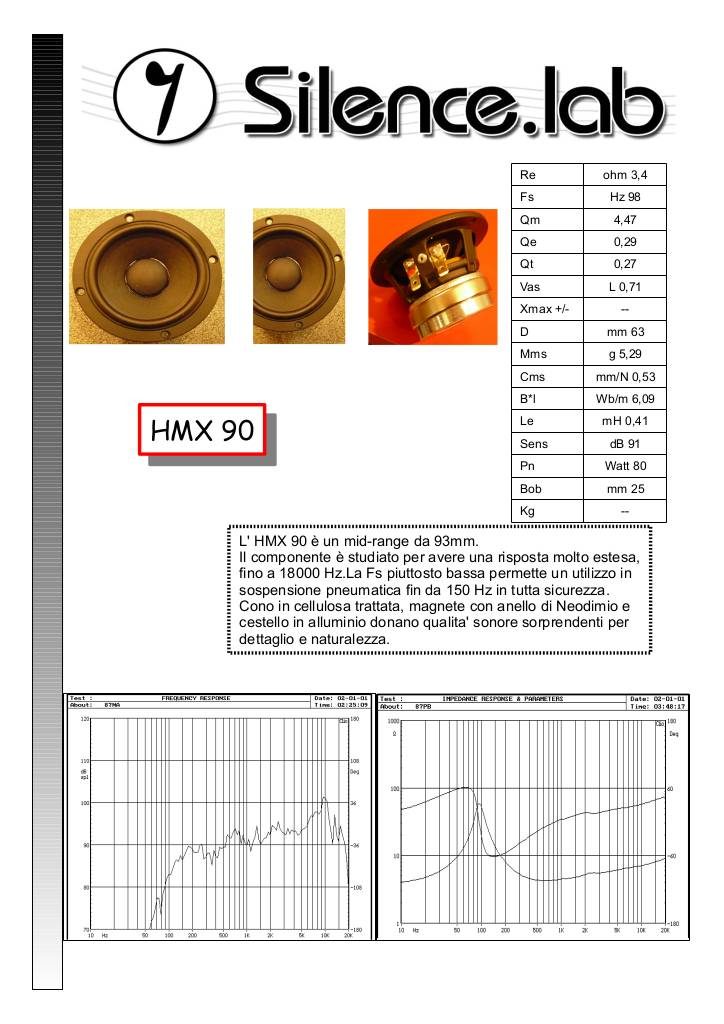

HMX90 scheda

20120118182019-data-hmx90.pdf
Discontinued
