HMX 90.8 hi-end full-range midrange 93mm - 8 Ohm

Silence Lab

Discontinued

Your price:
€ 360,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
100 mm
RMS Power
80 Watt
Sensitivity
91 dB
Impedance
8 Ohm
Installation Depth
49 mm
Voice Coil Diameter
25 mm

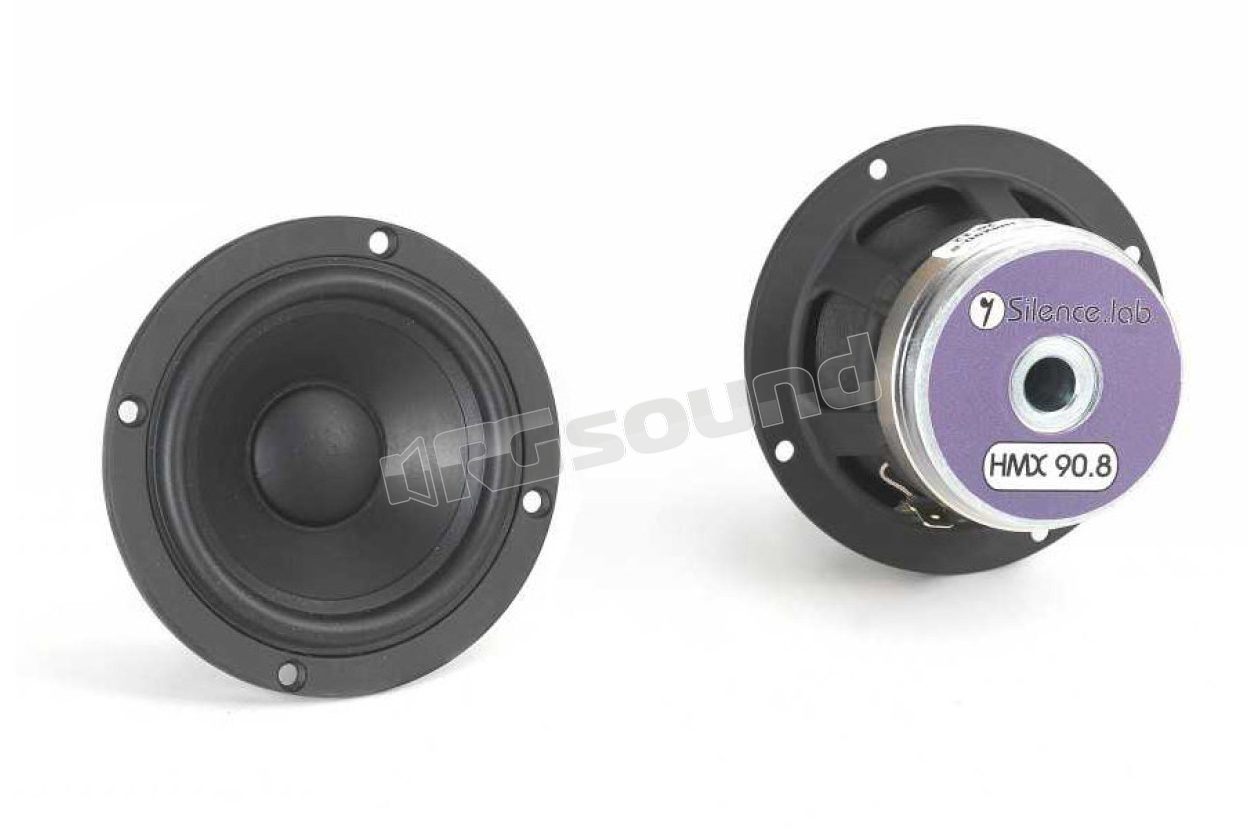

HMX 90.8 is a full mid-range with 92mm diameter and nominal impedance of 8 Ohm..


The component is designed to have a very extended response, up to over 8000 Hz with a particularly smooth midrange.
The rather low Fs allows use in pneumatic suspension from 250 Hz in complete safety and therefore it can be combined without problems even with 200mm woofers.

Treated cellulose cone, magnet with 2 Neodymium pads, 25 mm voice coil and aluminum basket are the significant construction features that together with the reduced depth and excellent linearity make this component a reference in its price range.

External diameter 92 mm and installation depth 49 mm.

Technical specificationsHMX 90.8

Re Ohm 5.9
Fs Hz 112
Qm 3.36
Qe 0.40
Qt 0.33
Vas L 0.85
D mm 63
Mms g 4.87
Cms mm/N 0.47
B*l Wb/m 6.89
Le mH 0.65
Sens dB 91
Pn Watt 80
Bob mm 25

Discontinued
