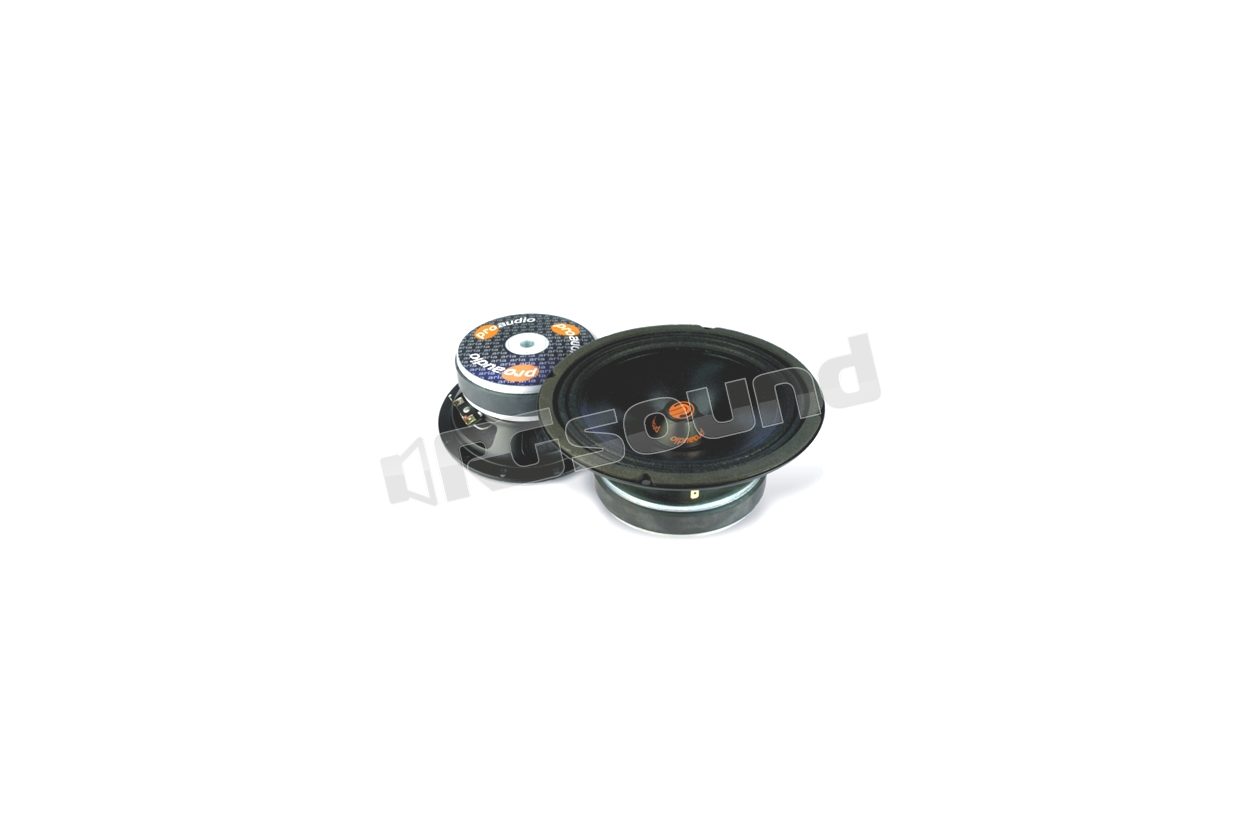

HE-R250

Proaudio

Discontinued

Your price:
€ 258,20
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
390 Watt
RMS Power
200 Watt
Sensitivity
104 dB
Impedance
4 Ohm
Installation Depth
100 mm
Woofer Material
Polpa di cellulosa

250mm woofer highest efficiency 104 dB

TECHNICAL DETAILS:


Basket: anti-resonant treated steel
Magnetic structure: ferrite, vented air gap
Coil: multi-wire in aluminum alloy on kapton 50 mm support
Dustcap: pre-treated acrylic formed at high pressure
Suspension: nomex double treatment
Cone: BULLcone ® enhanced cellulose pulp

Power: 200/390 Watt RMS/Max. @f>150 Hz
Impedance: 4 ohm
Efficiency: 104 dB

ACOUSTIC BEHAVIOR:
Devastating impact! Record speed! From 165 to 250, all diameters demonstrate spectacular efficiency characteristics.
Although the design aims to satisfy the SPL enthusiast, the Rodeo "Sound": the frequency response is linear up to over 2KHz, then grows where it's needed. Even in that portion of the spectrum the tone remains pleasant and calibrated, never shrill or annoying. High efficiency yes, but sound!

INSTALLATION ADVICE:

Designed for full-range use at high pressure. In the door, for all three sizes, we recommend custom fiberglass reinforced supports that accommodate at least two units. Especially for the 165 and 200, we recommend the use of three/four transducers per channel, the result is absolutely guaranteed. Multi-amplification is recommended, electronically filtered around 150 Hz HP with high slopes.

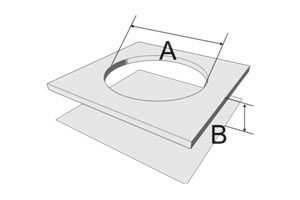

Installation dimensions A: 235 mm, B: 100 mm

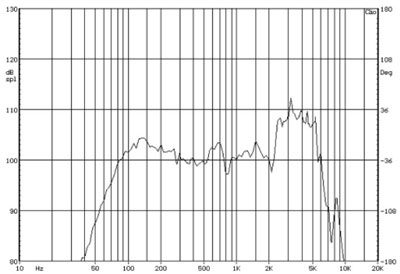

Frequency response graph

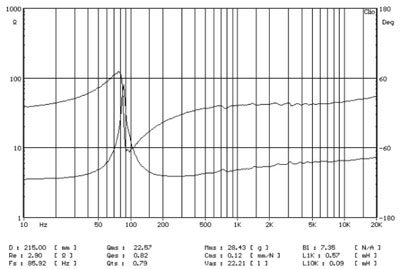

Impedance graph

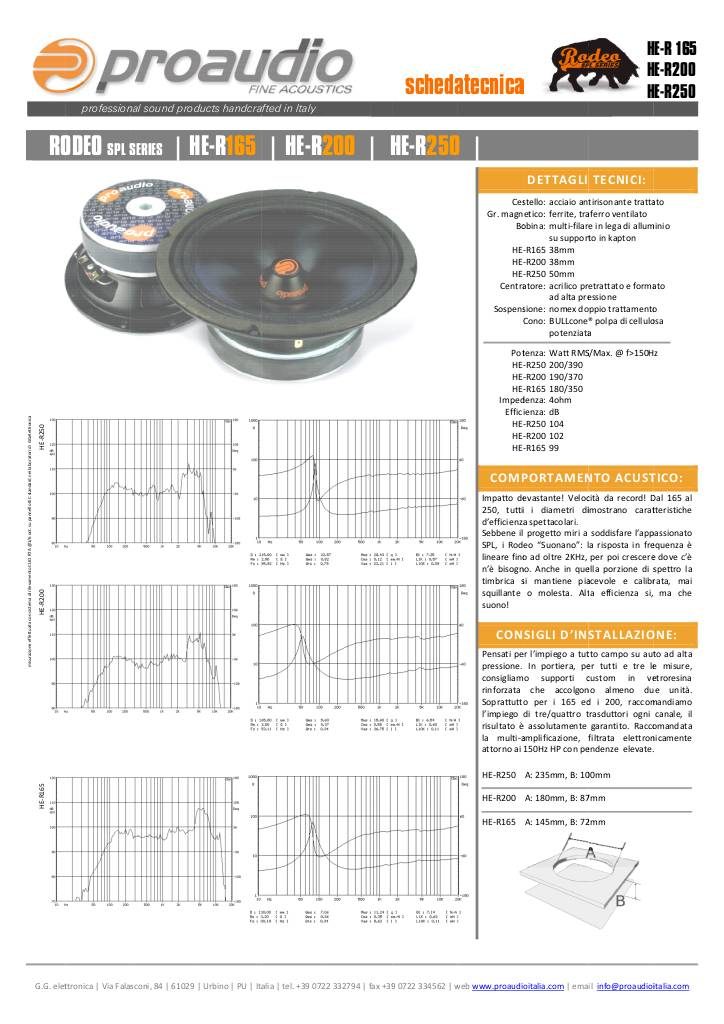

scheda tecnica - grafico

20080914222809-rodeo.pdf
Discontinued
