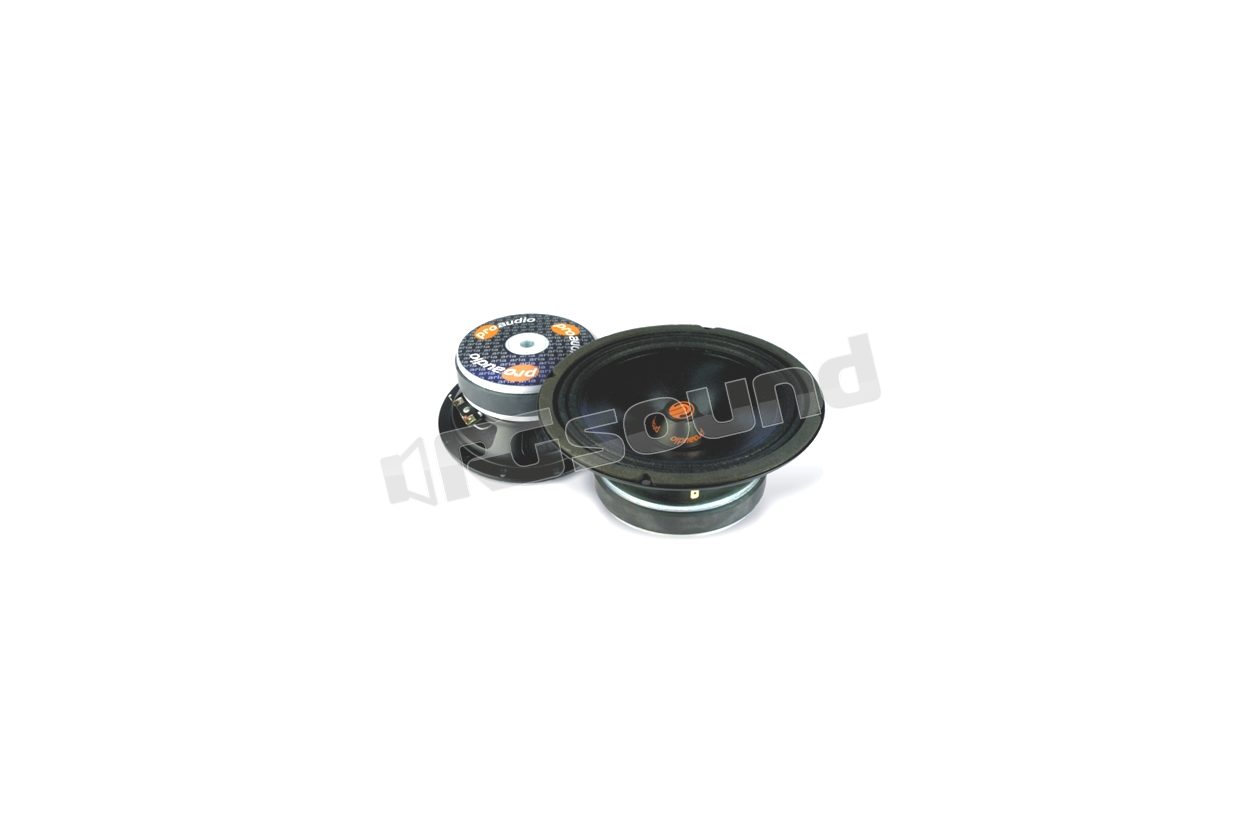

HE-R200

Proaudio

Discontinued

Your price:
€ 209,80
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
370 Watt
RMS Power
190 Watt
Sensitivity
102 dB
Impedance
4 Ohm
Installation Depth
87 mm
Woofer Material
Polpa di cellulosa

200mm woofer very high efficiency 102 dB

TECHNICAL DETAILS:


Basket: anti-resonant treated steel
Magnetic group: ferrite, vented air gap
Voice coil: multi-wire aluminum alloy on kapton 38 mm support
Centeringpiece: pretreated acrylic formed under high pressure
Suspension: nomex double treatment
Cone: BULLcone ® enhanced cellulose pulp

Power: 190/370 Watt RMS/Max. @f>150 Hz
Impedance: 4 ohm
Efficiency: 102 dB

ACOUSTIC BEHAVIOR:
Devastating impact! Record-breaking speed! From 165 to 250, all diameters demonstrate spectacular efficiency characteristics.
Although the design aims to satisfy the SPL enthusiast, Rodeo "Sound":the frequency response is linear up to over 2KHz, then increases where needed. Even in that portion of the spectrum the timbre remains pleasant and calibrated, never shrill or annoying. High efficiency yes, but sound!

INSTALLATION ADVICE:

Designed for full-range use on high pressure. In the door, for all three sizes, we recommend custom fiberglass reinforced supports that accommodate at least two units. Especially for the 165 and 200, we recommend the use of three/four transducers per channel, the result is absolutely guaranteed. Multi-amplification recommended, electronically filtered around 150 Hz HP with high slopes.

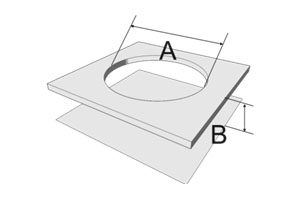

Installation dimensions A: 180 mm, B: 87 mm

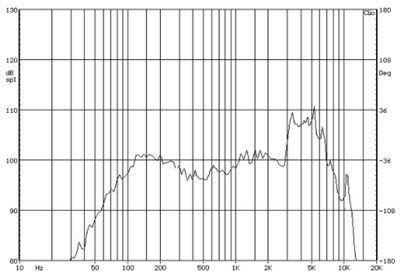

Response graph

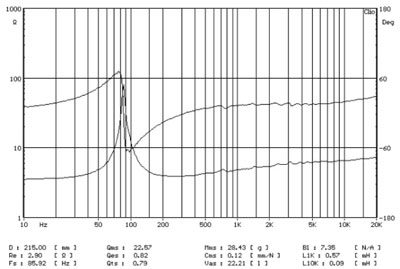

Impedance graph

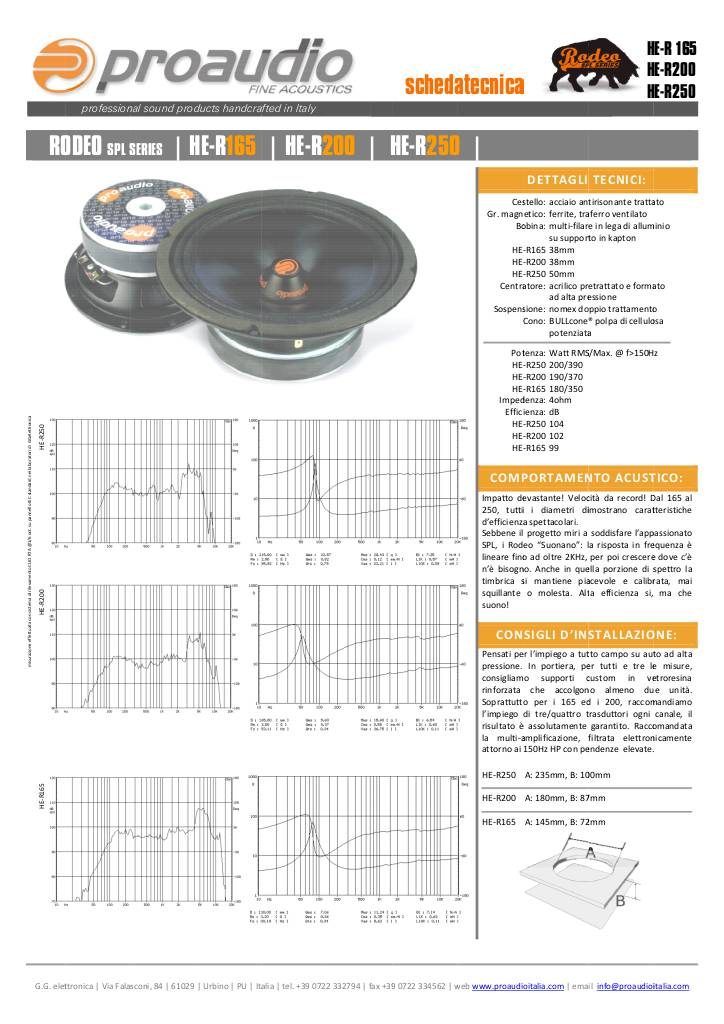

scheda tecnica - grafico

20080914231646-rodeo.pdf
