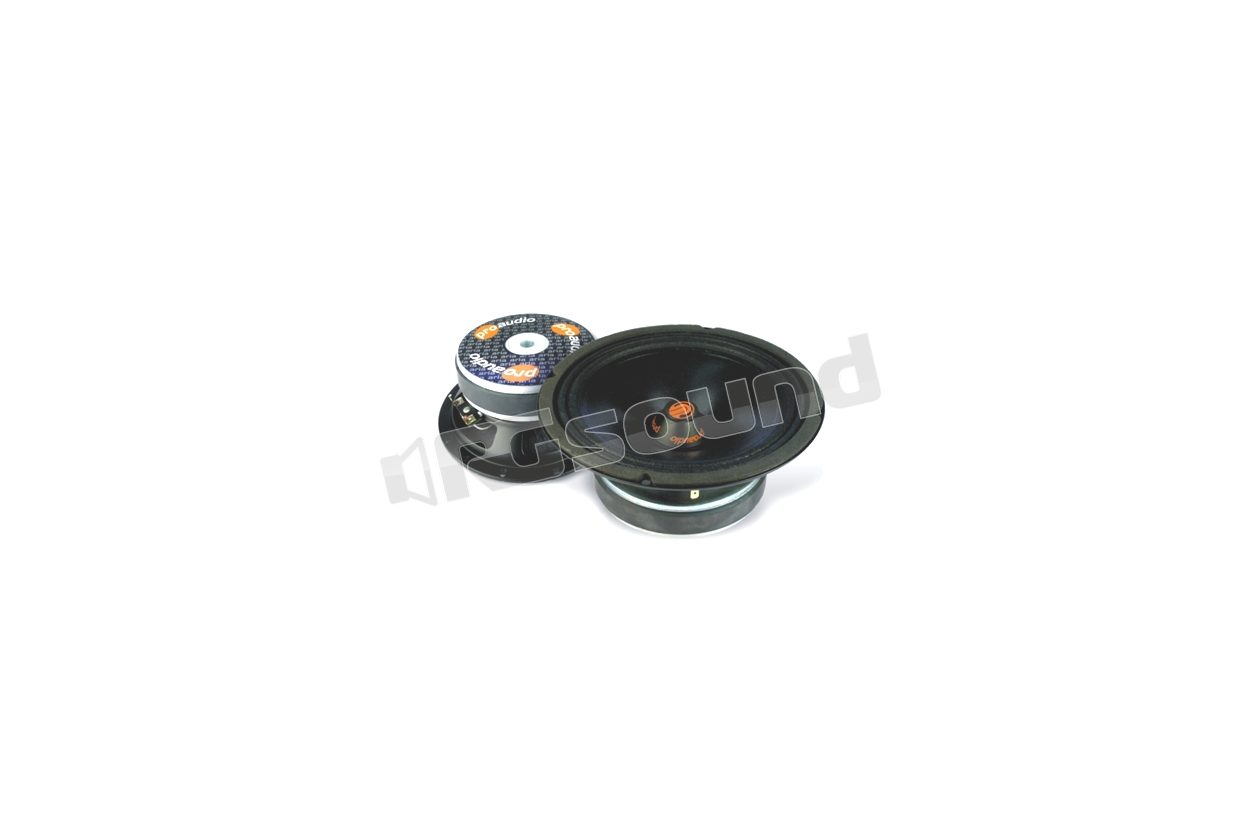

HE-R165

Proaudio

Discontinued

Your price:
€ 165,40
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
350 Watt
RMS Power
180 Watt
Sensitivity
99 dB
Impedance
4 Ohm
Installation Depth
72 mm
Woofer Material
Polpa di cellulosa

165mm midwoofer highest efficiency 99 dB

TECHNICAL DETAILS:


Basket: anti-resonant treated steel
Magnetic circuit: ferrite, vented air gap
Voice coil: multi-wire aluminum alloy on kapton 38 mm support
Centering spider: pretreated and high pressure formed acrylic
Suspension: nomex double treatment
Cone: BULLcone ® reinforced cellulose pulp

Power: 180/350 Watt RMS/Max. @f>150 Hz
Impedance: 4 ohm
Efficiency: 99 dB

ACOUSTIC BEHAVIOR:
Devastating impact! Record speed! From 165 to 250, all diameters demonstrate spectacular efficiency characteristics.
Although the design aims to satisfy the SPL enthusiast, the Rodeos "Sound":the frequency response is linear up to over 2KHz, then increases where needed. Even in that portion of the spectrum the tonal quality remains pleasant and calibrated, never shrill or annoying. High efficiency yes, but sound!

INSTALLATION ADVICE:

Designed for full-field use at high pressure. In the door, for all three sizes, we recommend custom fiberglass reinforced supports that accommodate at least two units. Especially for the 165 and 200, we recommend the use of three/four transducers per channel, the result is absolutely guaranteed. Multi-amplification recommended, electronically filtered around 150 Hz HP with high slopes.

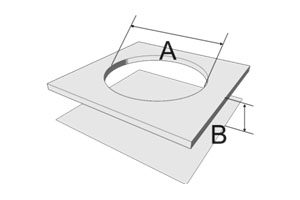

Installation dimensions
A: 145 mm, B: 72 mm

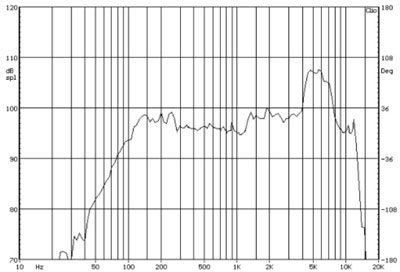

Frequency response chart

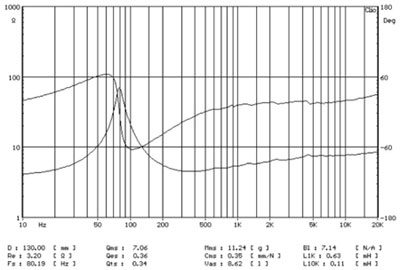

Impedance chart

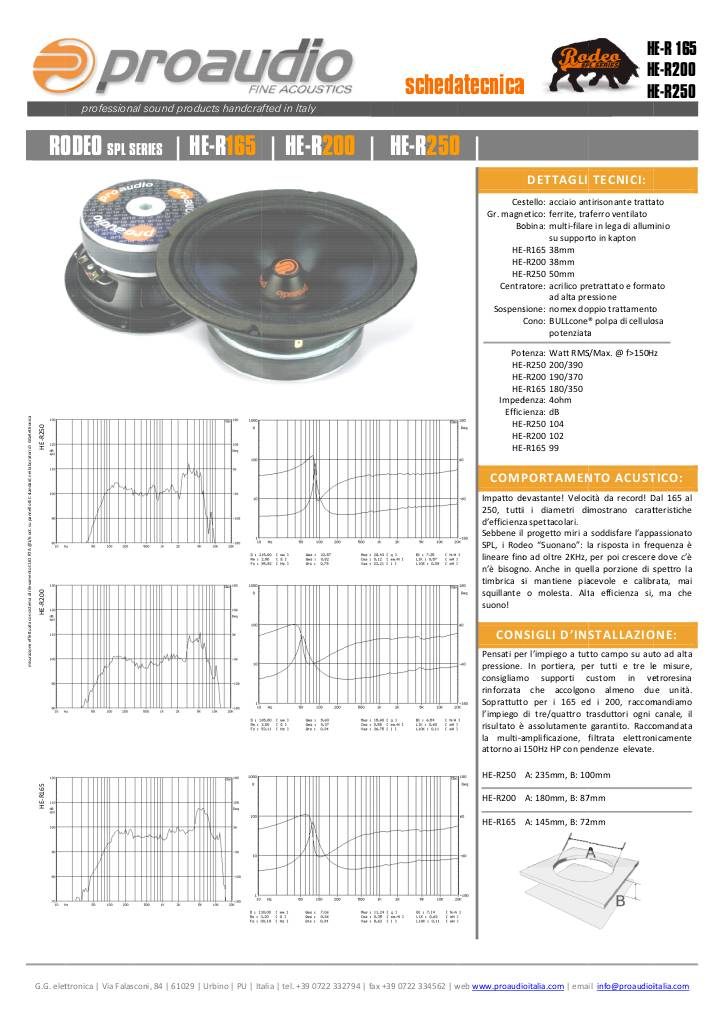

scheda tecnica - grafico

20080914233033-rodeo.pdf
Discontinued
