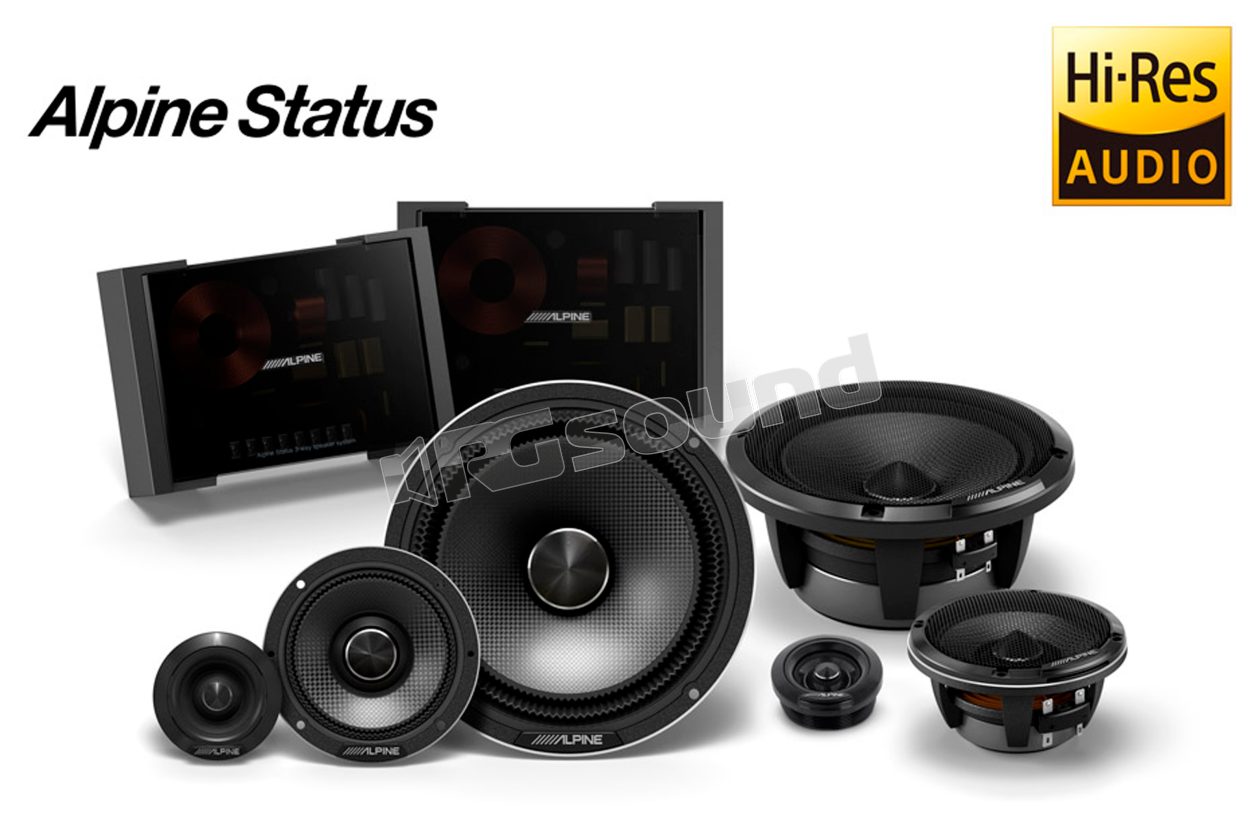

HDZ-653S Alpine Status Hi-Res 3-way component speaker system with audiophile crossover

Alpine
Your price:
€ 399,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
96 millimetri
Tweeter Size
40 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Frequency Response
55 - 40.000 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio

Alpine Status HDZ-653S Hi-Res 3-way speaker system, composed of 170 mm woofer, 96 mm midrange speakers, slim 40 mm tweeter and audiophile crossover.

Alpine introduces the brand new Alpine Status audio system: using the same engineering and design concepts taken from the third-generation AlpineF#1Status system, ultra-high resolution, Alpine has created "Alpine Status" to achieve high-resolution sound at a more affordable price. The Alpine Status system is also extremely flexible: all components can be purchased and used in "stand-alone" configuration.

All speaker cones are made with the same material, Carbon Composite to create a unified tonal identity during playback. They closely resemble the appearance and feel of AlpineF#1Status speakers, using very similar motor construction and assembly, as well as the same construction materials for maximum sound quality.

The 3-way Slim-Fit HDZ-653S speaker set with a high-resolution bandwidth of 55 Hz - 40 kHz includes a 170 mm woofer, a 96 mm midrange and a Slim-Fit 40 mm tweeter that is easy to install in the original tweeter positions of your vehicle. They also include high-end speaker x-over.

The 3-way x-over networks included are equipped with hand-selected high-end components and offer numerous adjustment possibilities: you can adjust the midrange level from 0dB to -3dB, the tweeter level from +3dB, 0dB or -3dB and you can set the woofer X-Over to 12dB/oct or 6dB/oct. The smoked acrylic cover with the Alpine logo can be slid forward to access the screw terminals and jumpers.

The included 40 mm Slim-fit Hi-Res Audio tweeters sound simply amazing and play up to 40 kHz. They are significantly smaller than the HDZ-653 tweeters, with particular attention to easy installability. They also include an integrated wave guide, a tuned chamber and a powerful neodymium magnet.

Scheda tecnica

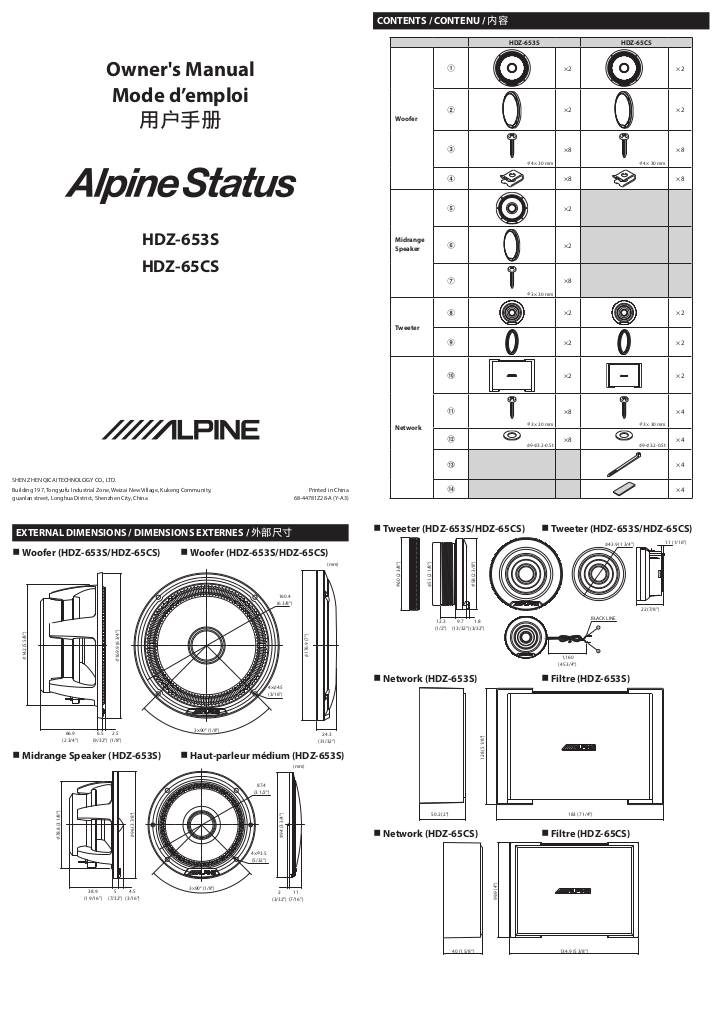

n-20221019153933-om-hdz-653s-hdz-65cs-all.pdf

Alpine Status HDZ-653S Technical Specifications

  • Hi-Res Audio certified 3-way speaker system
  • AlpineF#1Status cascading speaker technology
  • Maximum peak power: 300 Watt
  • Maximum RMS power: 100 Watt
  • Woofer diameter: 170 mm (177 mm with connected grille)
  • Midrange diameter: 96 mm
  • Tweeter diameter (slim-fit): 40 mm (58 mm with enclosure)
  • Die-cast aluminum baskets
  • Carbon fiber cones with support
  • Double roll surround
  • High-end X-Over networks
  • Speaker grilles included
  • Integrated Wave Guide on all speakers
  • Impedance 4Ω
  • Sensitivity 88dB SPL (2.83 V @ 1 m)
  • Frequency response: 55Hz - 40kHz
  • Mounting depth: woofer 67 mm / midrange 39 mm
  • Cutout diameter: woofer 142 mm / midrange 79 mm
  • Recommended amplification: up to 100 W RMS per channel
  • Ferrite magnet (woofer)
  • Neodymium magnet (midrange and tweeter speaker)
€ 399,00 Price incl. VAT
