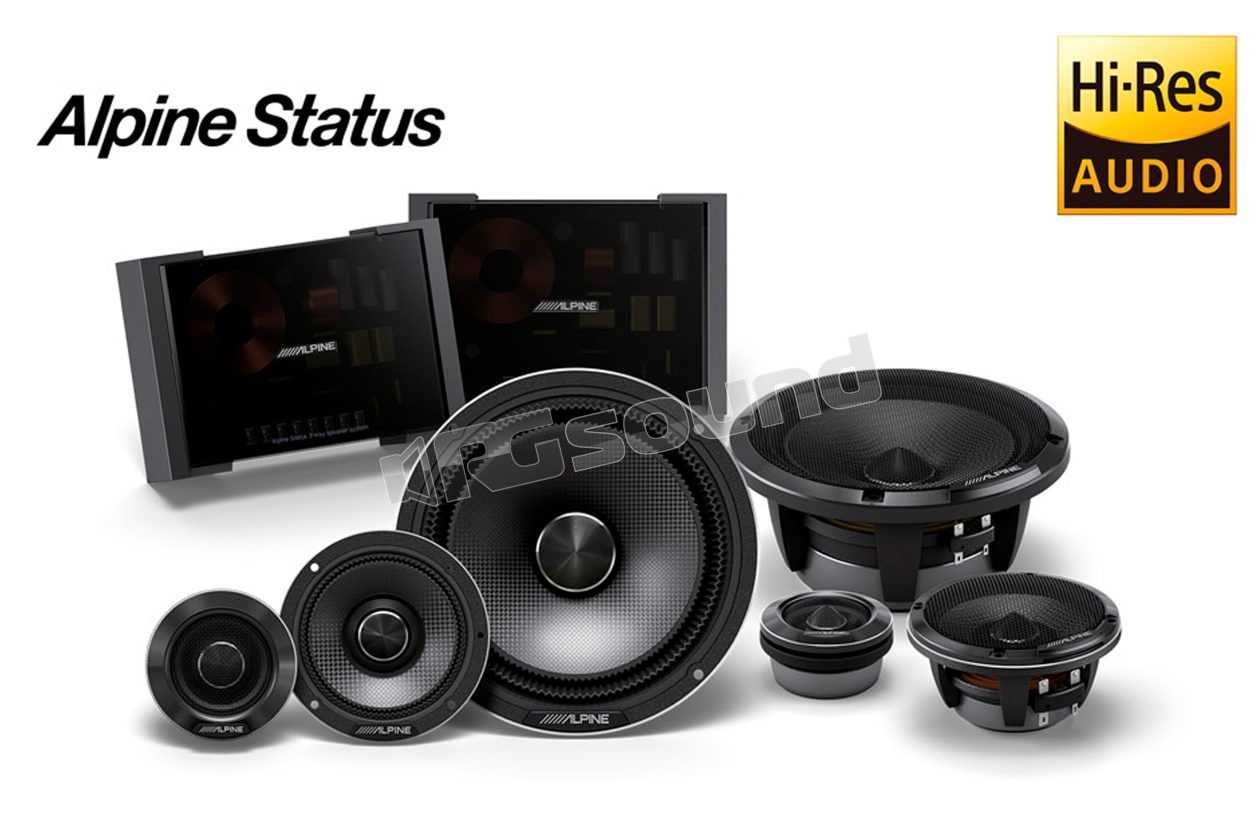

HDZ-653 Alpine Status Hi-Res 3-way component speaker system with audiophile crossover

Alpine
Your price:
€ 599,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
96 millimetri
Tweeter Size
25 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Frequency Response
55 - 40.000 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio

Alpine Status HDZ-653 Hi-Res 3-Way Separate Speaker System Alpine Status with Audiophile Crossover

Alpine presents the brand new Alpine Status audio system: using the same engineering and design concepts drawn from the third generation AlpineF#1Status system, at the highest resolution, Alpine has created "Alpine Status" to achieve high resolution sound at a more accessible price. The Alpine Status system is also extremely flexible: all components can be purchased and used in "stand-alone" configuration. For audiophiles who want to build an ideal audio system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The 3-way speaker set HDZ-653, with a high resolution bandwidth of 55 Hz - 40 kHz, includes a 170 mm ported woofer, a 96 mm midrange and a 70 mm ring radiator tweeter with 25 mm voice coil. They also include high-end x-overs.

All speaker cones are made with the same material, Carbon Composite to create a unified timbral identity during playback. They come very close to the appearance and feel of AlpineF#1Status speakers, using very similar motor construction and assembly, as well as the same construction materials for maximum sound quality. The 70 mm Hi-res Audio ring tweeters included have simply extraordinary sound and play up to 40 kHz. They feature a 25 mm carbon fiber diaphragm, tuned to harmonize perfectly with the midrange and woofer to achieve a completely unified timbral identity.

They are also equipped with an integrated waveguide, a tuned rear chamber and a powerful neodymium magnet. The 3-way x-over networks included are equipped with hand-selected high-end components and offer numerous adjustment possibilities: you can adjust the midrange level from 0dB to -3dB, the tweeter level from +3dB, 0dB or -3dB and you can set the woofer X-Over to 12dB/oct or 6dB/oct. The smoked acrylic cover with the Alpine logo can be slid forward to access the screw terminals and jumpers.

Scheda tecnica

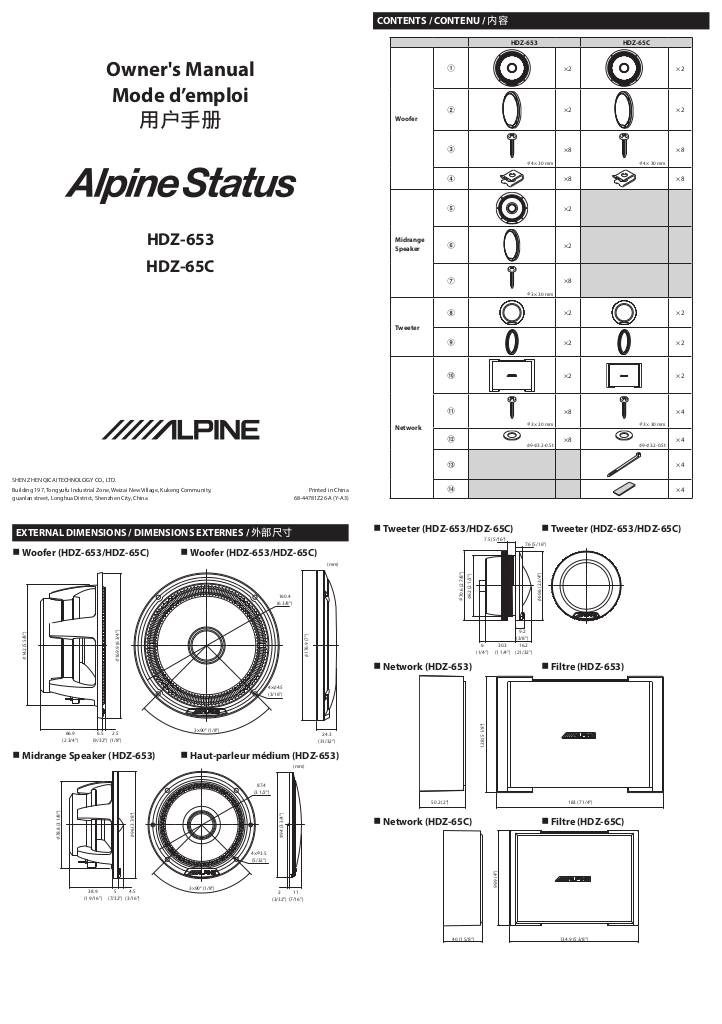

n-20221019143340-om-hdz-653-hdz-65c-all.pdf

Alpine Status HDZ-653 Technical Specifications

  • 3-way speaker system certified Hi-Res Audio
  • AlpineF#1Status cascading speaker technology
  • Maximum peak power: 300 Watt
  • Maximum RMS power: 100 Watt
  • Woofer diameter: 170 mm (177 mm with attached grille)
  • Midrange diameter: 96 mm
  • Tweeter diameter: 70 mm (25 mm voice coil)
  • Die-cast aluminum baskets
  • Ring radiator tweeter
  • Carbon fiber cones with support
  • Double collector surround
  • High-end X-Over networks
  • Speaker grilles included
  • Integrated Wave Guide on all speakers
  • Impedance 4Ω
  • Sensitivity 88dB SPL (2.83 V @ 1 m)
  • Frequency response: 55Hz - 40kHz
  • Mounting depth: woofer 67 mm / midrange 39 mm
  • Cutout diameter: woofer 142 mm / midrange 79 mm
  • Recommended amplification: up to 100 W RMS per channel
  • Ferrite magnet (woofer)
  • Neodymium magnet (midrange and tweeter)
€ 599,00 Price incl. VAT
