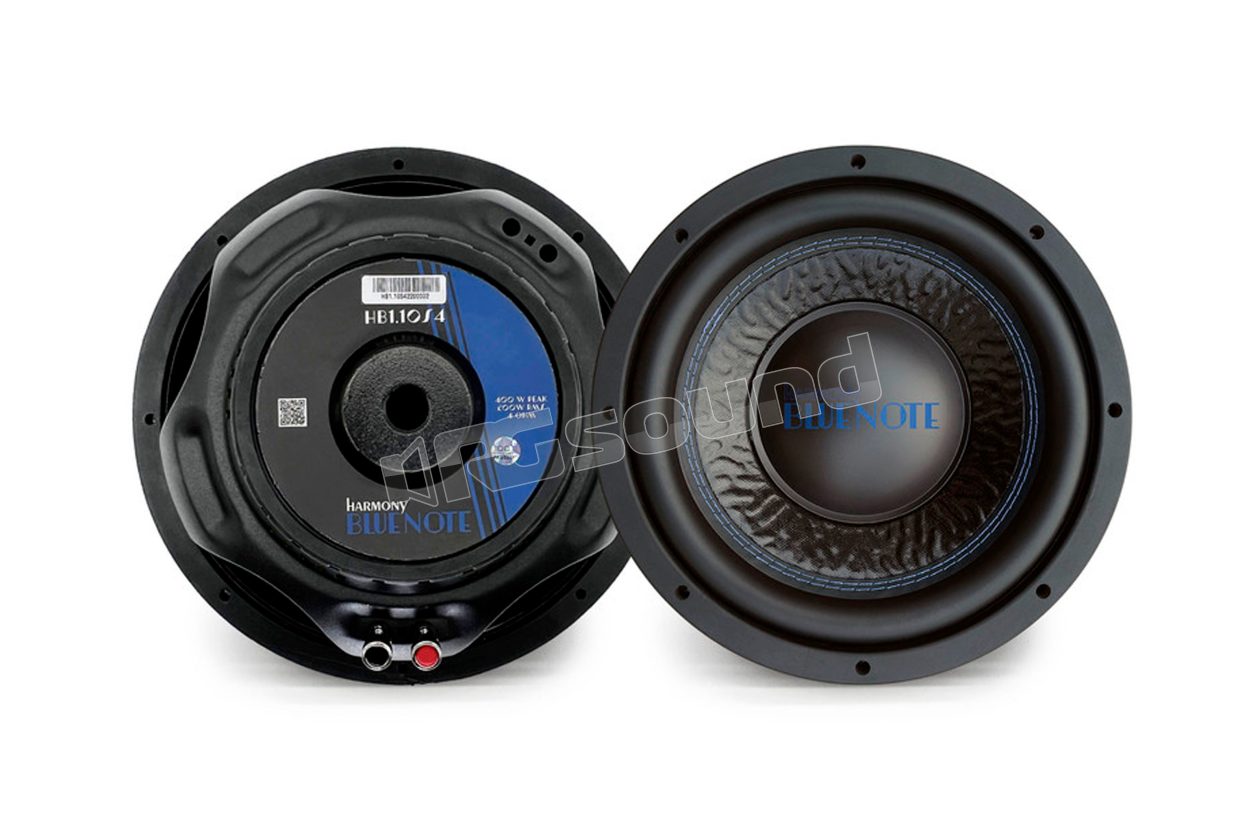

HB1.10S4 25 cm Harmony Series Subwoofer

ESB car audio
Your price:
€ 75,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
43 - 1500 Hertz
Sensitivity
88 dB
Impedance
4 Ohm

ESB car audio HB1.10S4 Subwoofer Harmony 250 mm (10") impedance 4 Ohm

The HB1-10S4 subwoofer was designed with selected materials to improve bass response and pairs perfectly with speakers in the same series. This subwoofer has an oversized cone and suspension to handle greater power and produce strong and controlled bass.

The pressed paper cone ensures greater resistance and rigidity for optimal response at low frequencies. The large Y25 ferrite magnet allows optimal magnetic flux, even at high power. To improve response and performance, it is recommended to use a sealed enclosure of approximately 28 liters.

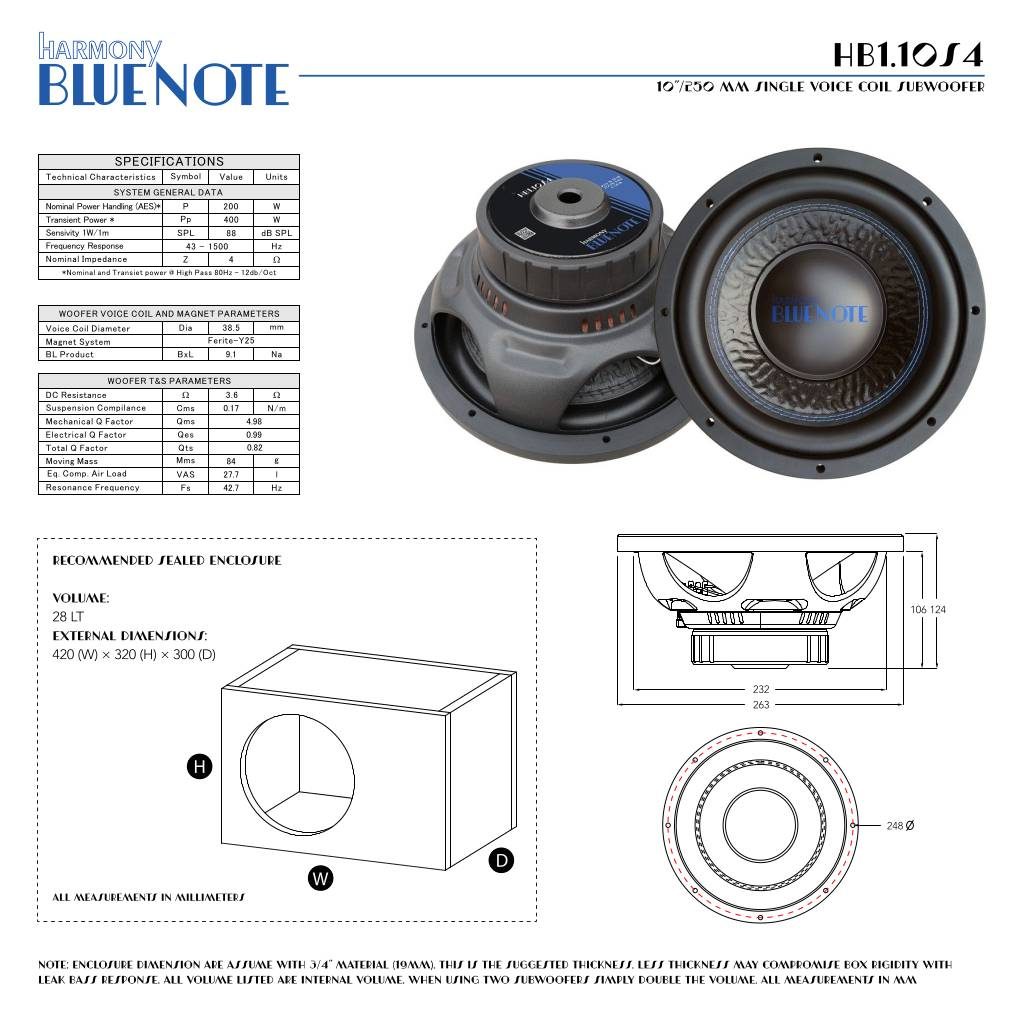

Scheda tecnica

n-20240517180839-data-sheet-hb1-10s4.pdf

ESB car audio HB1.10S4 Technical specifications

  • Frequency response 43Hz - 1.5KHz
  • Power
    • 400W (Max)
    • 200W (RMS)
  • Impedance 4 Ohm
  • Sensitivity 88 dB (2.83V/1M)
  • DC resistance 3.6 Ohm
  • Resonance frequency (Fs) 42.7 Hz
  • Mechanical Q factor. Q factor (Qms) 4.98
  • Electrical Q factor (Qes) 0.99
  • Total Q factor (Qts) 0.82
  • Moving mass (Mms) 84 g
  • Equivalent air load. Air load (VAS) 27.7 L
  • Effective piston area (Sd) 326 cmq
