GZUW 10SQ-D2

Ground Zero

Discontinued

Your price:
€ 237,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
RMS Power
450 Watt
Sensitivity
86 dB
Impedance
2 + 2 Ohm
Installation Depth
148 mm
Woofer Material
Cellulosa pressata

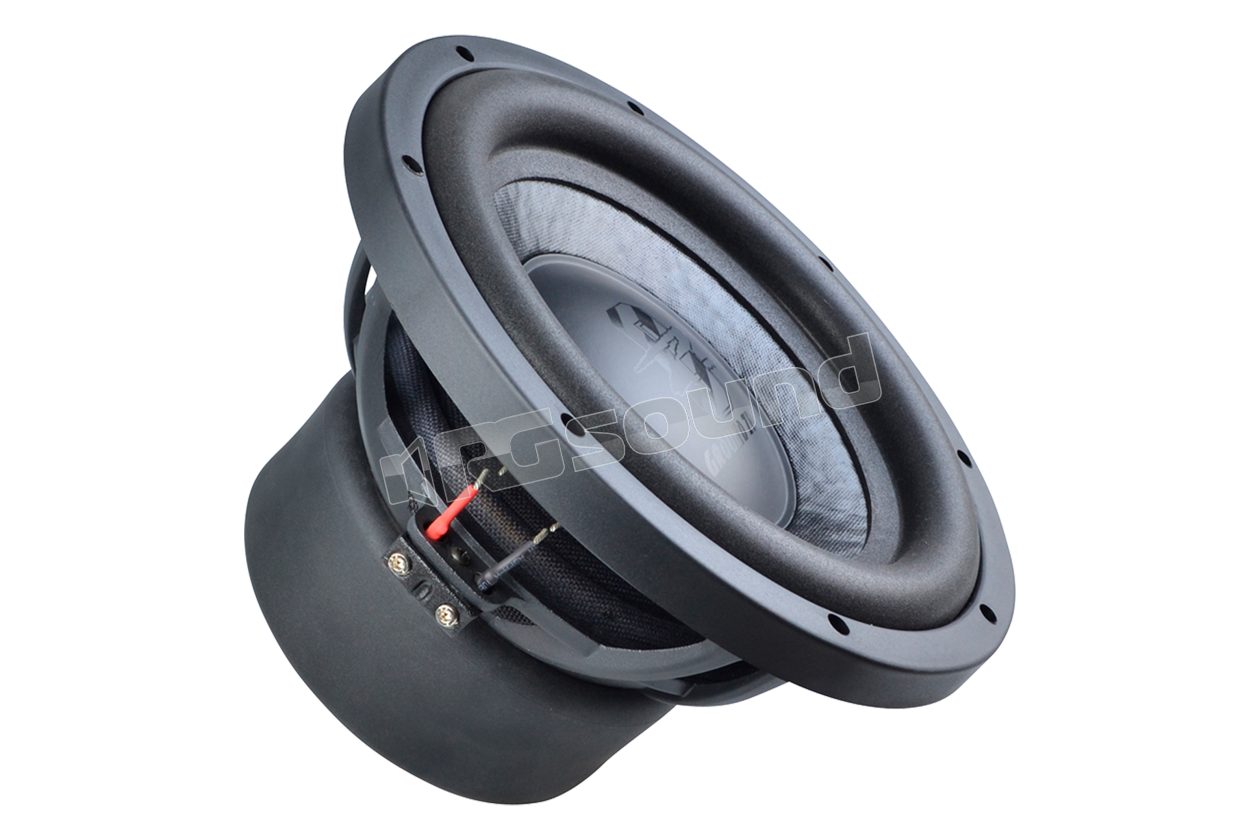

Ground Zero GZUW 10SQ-D2 10″ SQ subwoofer with die-cast aluminum basket and pressed paper cone, nominal power 450 Watt.

10 inch subwoofer with sound quality
Optimized for Klippel
Excavated and pressed paper cone
U-shaped foam surround
Solid aluminum die-cast basket
50 mm / 2″ copper voice coil
Audiophile Polycot spider
Coated paper dust cap

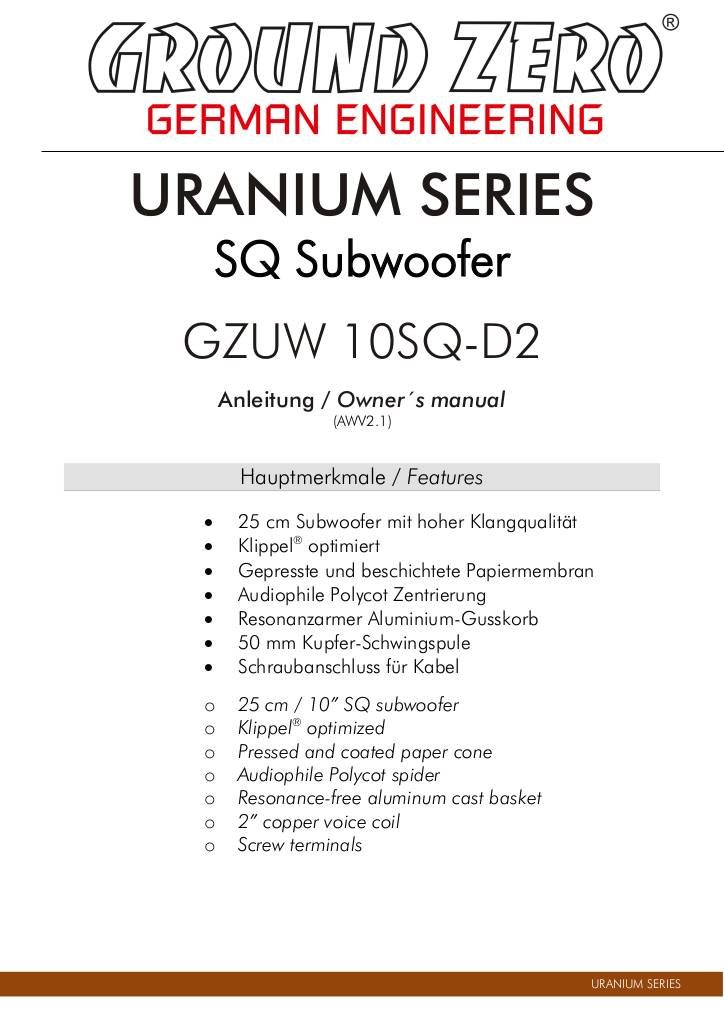

Scheda tecnica

n-20220301100739-gzuw-10sq-d2-om-awv2-1.pdf

Ground Zero GZUW 10SQ-D2 technical specifications

High quality SQ subwoofer

Diameter 25 cm / 10"

Power handling (RMS) 450 watt

Impedance 2x 2 Ohm

Efficiency 86dB

Power recommendation 300 - 600 watt

Voice coil 50 mm / 2" copper

Maximum Excursion (Xmax) 20 mm / 0.79"

Mounting hole diameter Ø 236 mm / 9.29"

Mounting depth 148 mm / 5.83"

Resonance Frequency (FA) 40.2 Hz

Air Volume (Vas) 21.8 l / 0.77 cubic feet

Discontinued
