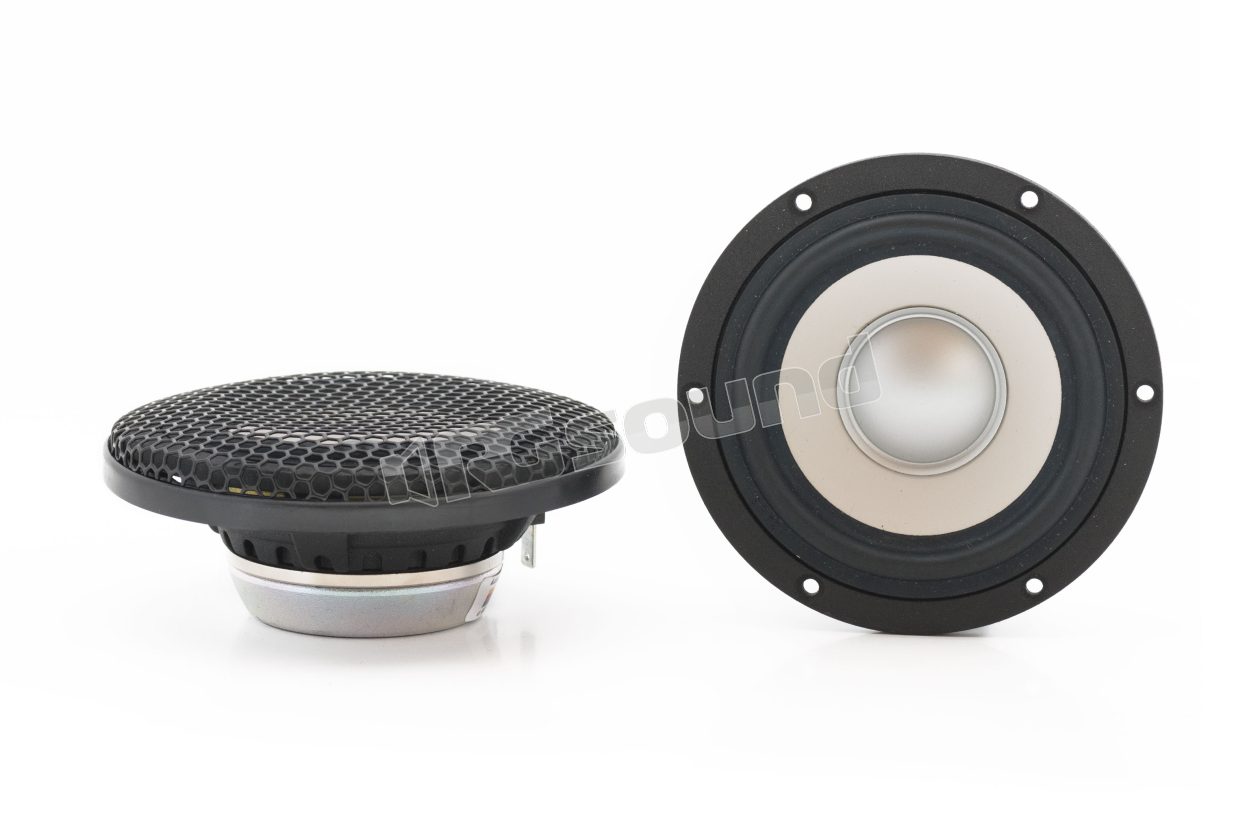

GZPM 80SQX hi-end - neodymium and magnesium cone

Ground Zero

Discontinued

Your price:
€ 360,10
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
MAX Power
110 Watt
RMS Power
70 Watt
Frequency Response
150 - 4.000 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
34 mm
Midrange Cone Material
Magnesio

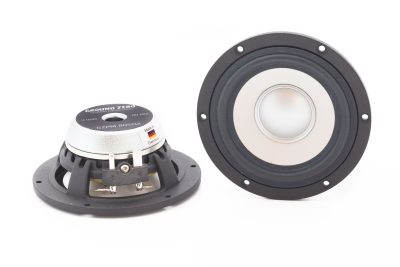

GZPM 80SQX high-end quality compact midrange 80mm suitable for dashboard or pillar installations.
The motor unit with neodymium magnet, the very light MAGNESIUM cone, the 25mm voice coil make this component extremely sensitive, fast and linear in response (see graph in the technical sheet).

Completely made in Germany, power 70W RMS.
It is recommended to set the high-pass filter around 300/400Hz

technical features

- Extremely compact high end midrange chassis
- High efficient neodym magnets

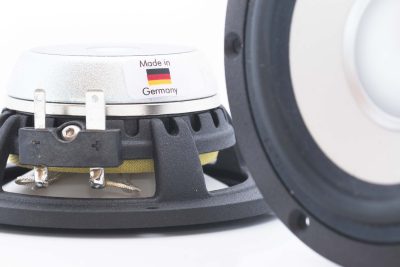

- Handmade in Germany

GZPM 80SQX midrange features

Midrange Diameter of midwoofer or midrange 80 mm / 3.15"
Installation diameter 94 mm
Installation depth 34 mm
Voice coil of midwoofer or midrange 25 mm / 1"
Cone of midwoofer or midrange Magnesium
Dustcap / Phaseplug of midwoofer or midrange IMPP
Basket midrange Aluminium cast
Magnet midrange Neodym
Power handling WRMS 70 W
Power handling W peak 110 W
Impedance 4 Ohm
SPL 87 dB
Frequency response 150 - 4000 Hz

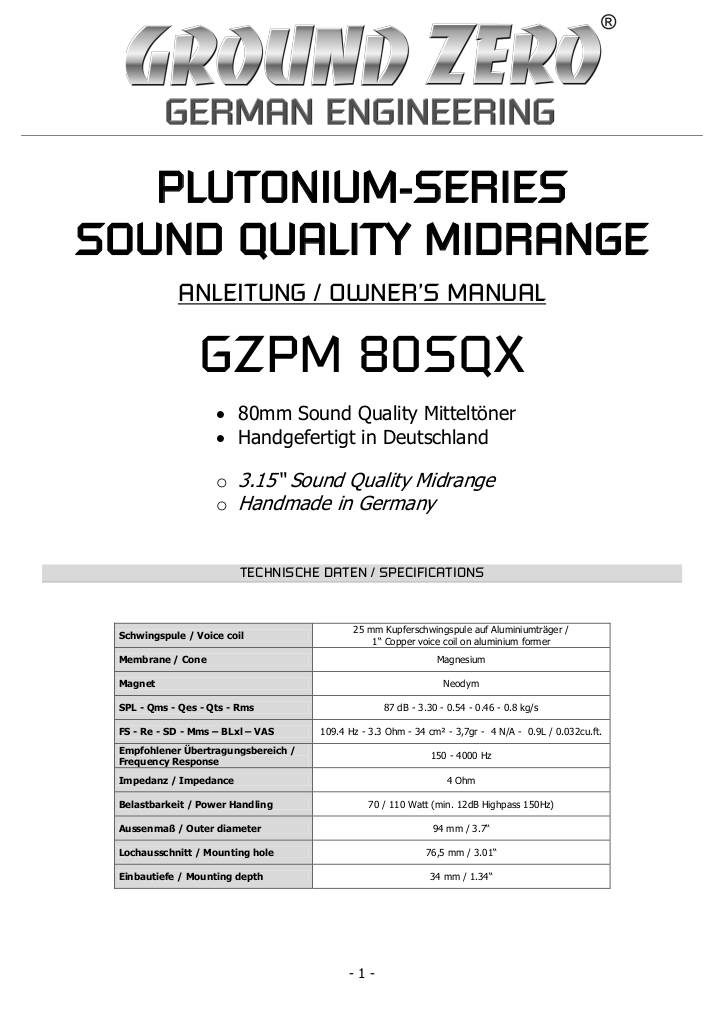

Manuale

20160325085336-gzpm-80sqx-om-12112013.pdf
