GZPF 40SQX 40 mm full range speaker

Ground Zero
Your price:
€ 499,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
Other sizes
MAX Power
80 Watt
RMS Power
40 Watt
Frequency Response
600 Hz - 24 kHz Hertz
Sensitivity
84 dB
Impedance
4 Ohm
Installation Depth
39 mm
Midrange Cone Material
alluminio anodizzato

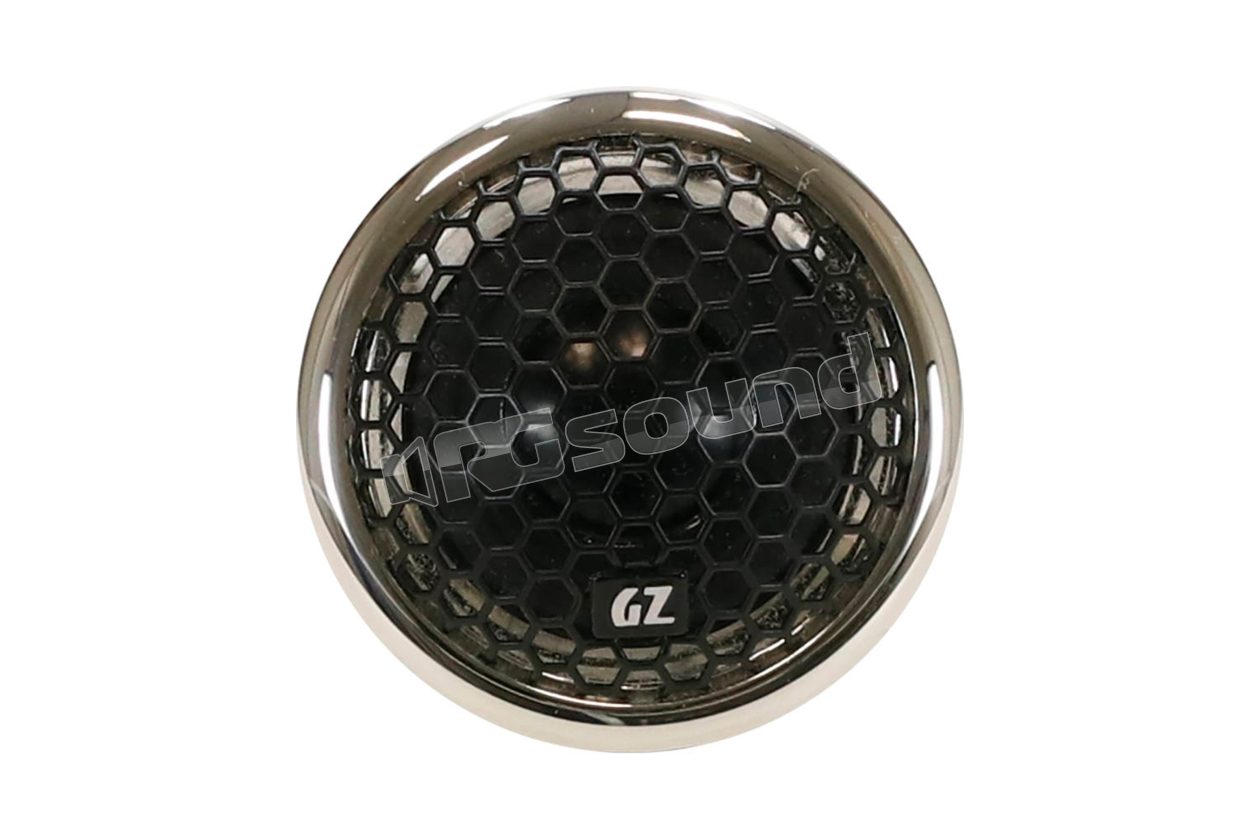

Ground Zero GZPF 40SQX 40 mm full range speaker


1.5″ full range speaker with aluminum diaphragm with 40 mm / 1.6″ high-end full range driver. Anodized aluminum cone and polished stainless steel housing, it features a neodymium motor and screw and solder terminal plated in gold.

GZPF 40SQX Features

  • 40 mm / 1.6″ high-end full range driver
  • Made in Germany
  • Anodized aluminum cone
  • Polished stainless steel housing
  • Neodymium motor
  • Screw and solder terminal plated in gold

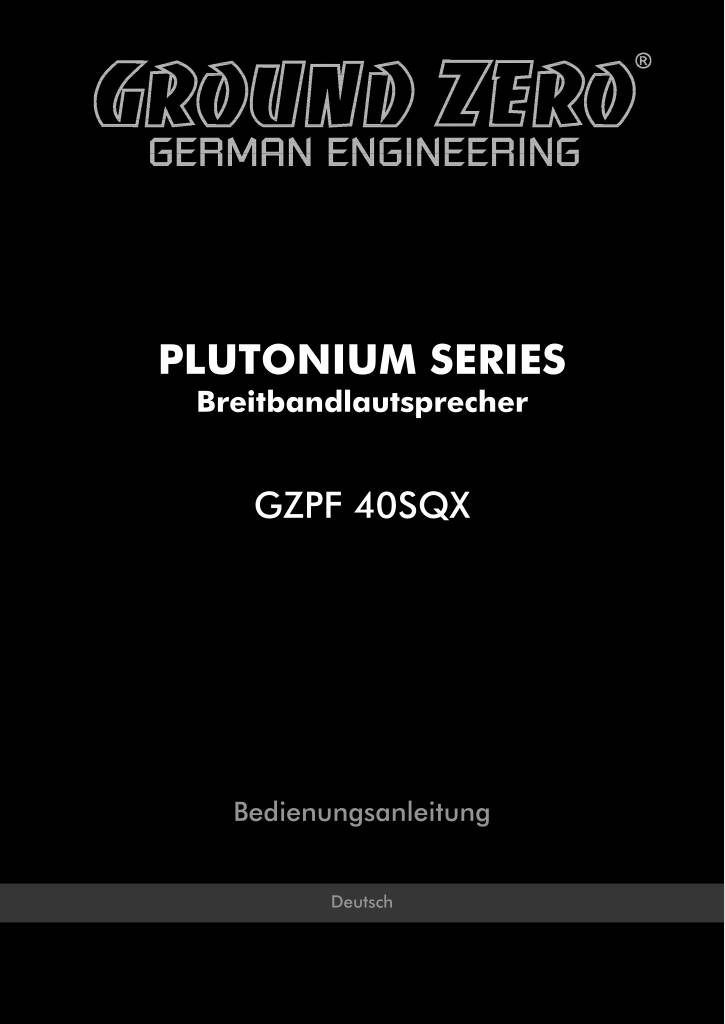

Manuale d'istruzione

n-20240125152728-manuale-gzpf-40sqx.pdf

Ground Zero GZPF 40SQX Technical specifications

  • High-end full range driver
  • Power handling (RMS/max) 50 / 80 Watt
  • Impedance 4 Ohm
  • Efficiency 84 dB
  • Frequency response 600 Hz - 24 kHz
  • Voice coil 16 mm / 0.63″
  • Cone Anodized aluminum
  • Mounting diameter 48 mm / 1.89″.
  • Mounting depth 39 mm / 1.54″.
  • Resonance frequency (Fs) 440 Hz
€ 499,00 Price incl. VAT
