GZNW 12X-D2 12" long-excursion subwoofer with aluminum cone

Ground Zero

Discontinued

Your price:
€ 569,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
3500 Watt
RMS Power
2000 Watt
Sensitivity
83 dB
Impedance
2 x 2 Ohm

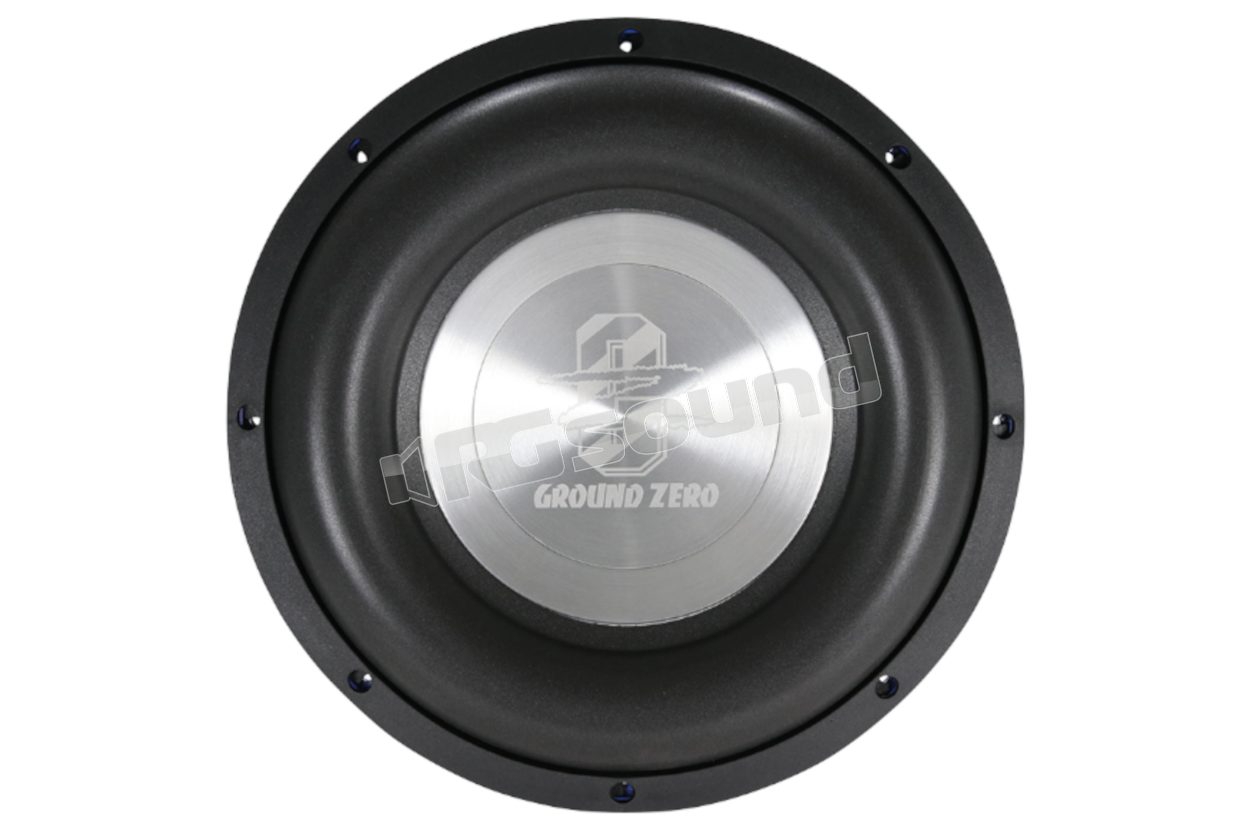

Ground Zero GZNW 12X-D2 12" Long Excursion Subwoofer with Aluminum Cone

12″ long excursion subwoofer with aluminum cone

GZNW 12X-D2 Features

  • 12″ long excursion subwoofer
  • Klippel optimized
  • Aluminum cone and dust cap
  • High-slip surround
  • Solid blue aluminum basket
  • 75 mm / 3" round wire voice coil CCA
  • 4-layer polycotton spider

Scheda tecnica

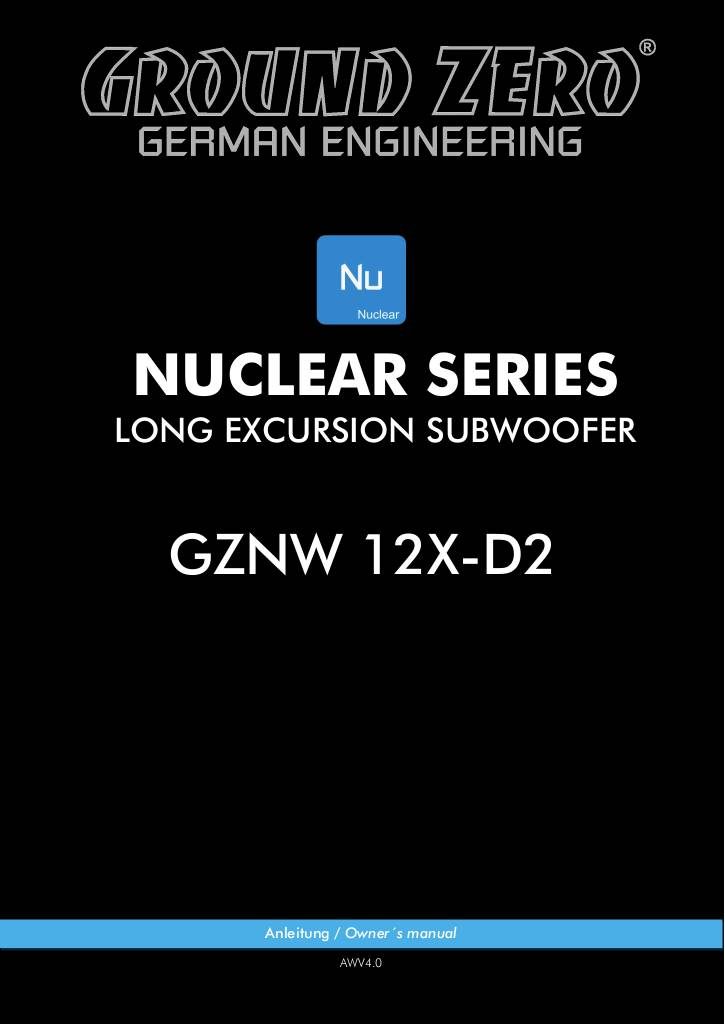

n-20250506175850-gznw-12x-d2.pdf

Ground Zero GZNW 12X-D2 Technical Specifications

  • Diameter 30 cm
  • Power Handling (RMS/SPL) 2000 / 3500 Watt
  • Impedance 2 x 2 Ohm
  • Efficiency 83 dB
  • Recommended Power 1500 - 3500 Watt
  • Voice Coil 75 mm / 3" CCAW
  • Aluminum cone
  • Maximum Excursion (Xmax) Excursion (Xmax) 62 mm
  • Mounting Ø 282 mm
  • Mounting Depth 210 mm
  • Resonance Frequency (Fs) 21.8 Hz
  • Damping Ratio (Qts) 0.33
  • Equivalent Air Volume (Vas) 35 L / 1.24 cu.ft.
Discontinued
