GZIW 10SPL

Ground Zero

Discontinued

Your price:
€ 149,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
700 Watt
RMS Power
400 Watt
Frequency Response
40 - 120 Hertz
Sensitivity
84 dB
Impedance
2 + 2 Ohm
Weight
5,9 Kg
Installation Depth
147 mm
Woofer Material
Cellulosa trattata

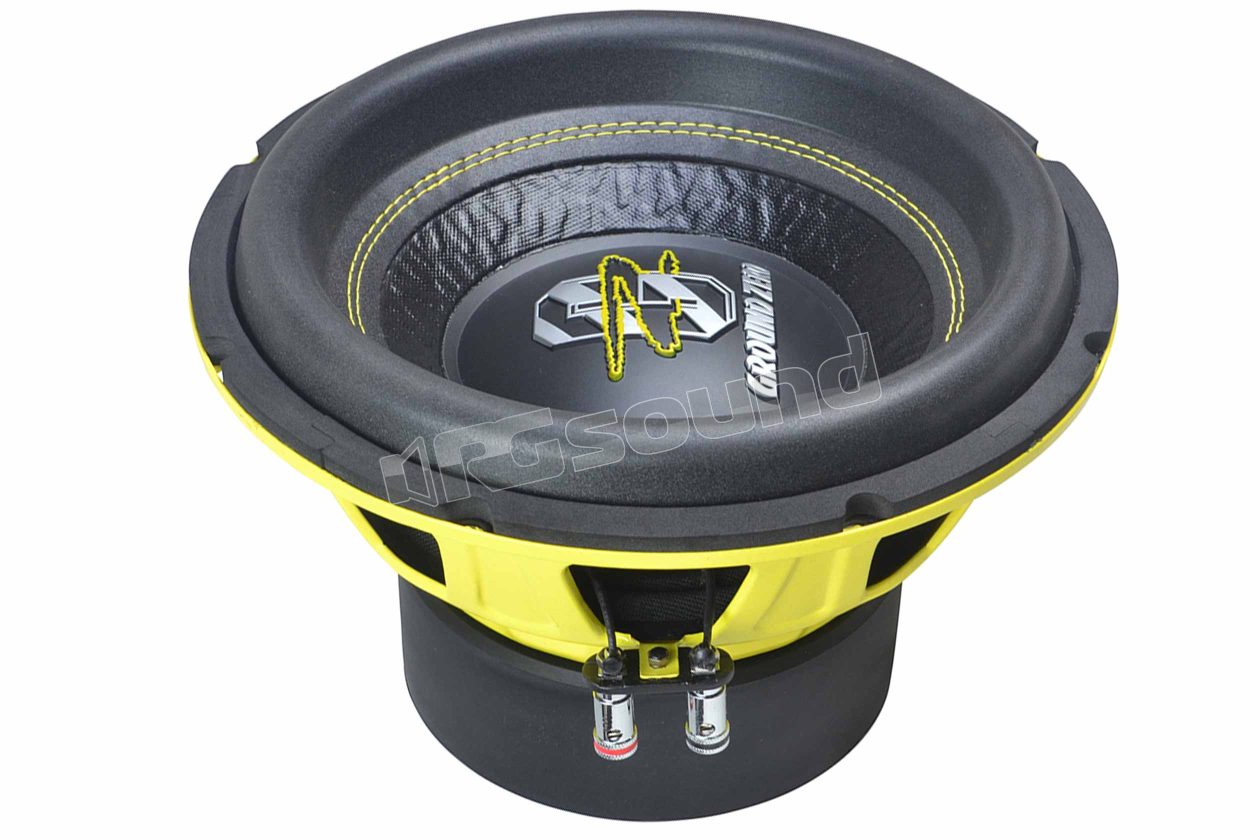

Ground Zero GZIW 10SPL 25cm subwoofer with dual 2 Ohm voice coil

GZIW 10SPL is a Klippel optimized sub with great power and is suitable for SPL competitions, the cone is made of specially treated paper for the best bass response and is surrounded by the High-Roll sandwich suspension.

Dual 2 Ohm voice coil 63 mm (2.5") in copper, push terminals.

GZIW 10SPL sub technical features

Diameter 25 cm (10")

Mounting hole diameter 257 mm (10.12")

Mounting depth 147 mm (5.79")

Nominal power 700 W SPL

Impedance 2 + 2 Ohm

SPL 84 dB

Xmax 25 mm / 0.98"

Fs 40.8

Qts 0.62

Vas 14.3 L / 0.505 cu.ft.

Box recommendation vented 40 Liter net / 1.57 cu.ft. net - Rohr / Tube 1x Ø8 cm / 1 x 3.15" L= 24 cm / 9.45"

Box recommendation sealed 18 - ~500 Liter net / 0.64 - 17.66 cu.ft. net

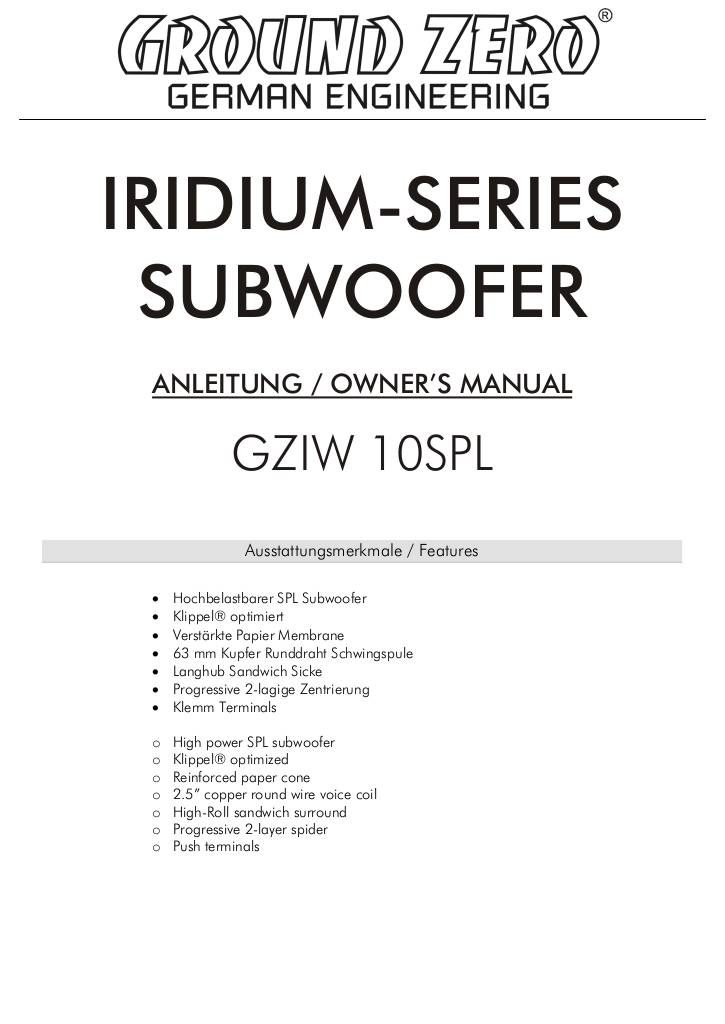

Manuale utente

n-20170303115844-gziw-10spl-om-062016.pdf

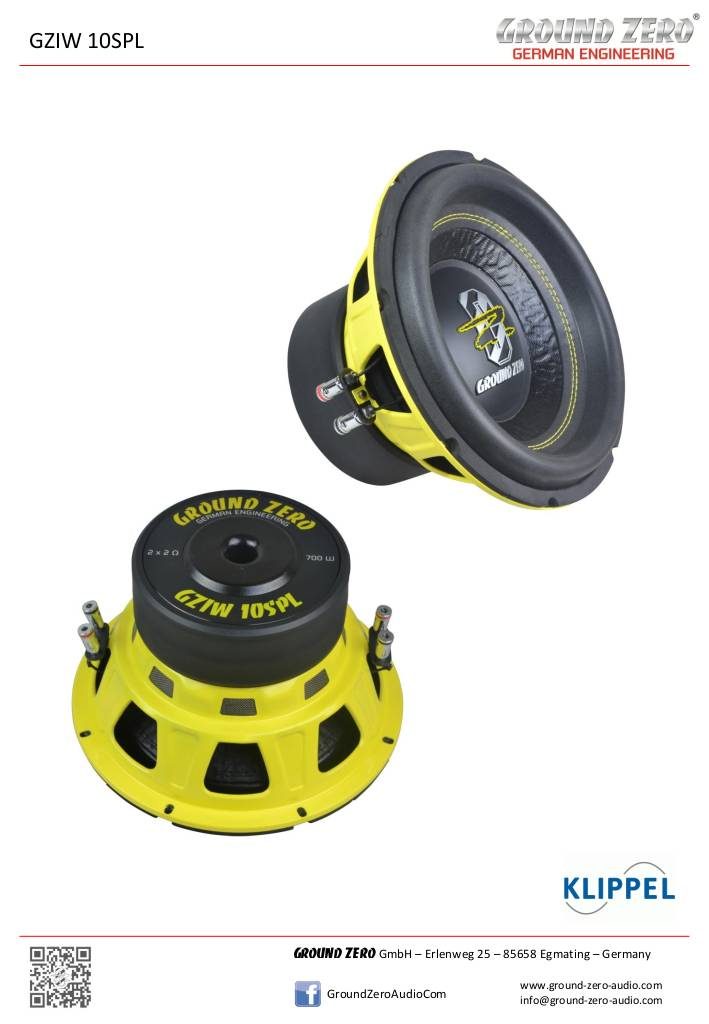

Scheda tecnica

n-20170303115844-gziw-10spl-2017.pdf
Discontinued
