GZHW 8XSPL-D1

Ground Zero

Discontinued

Your price:
€ 189,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
RMS Power
1.500 Watt
Frequency Response
40 - 120 Hertz
Sensitivity
80 dB
Impedance
2 Ohm
Weight
7,9 Kg
Installation Depth
150 mm
Woofer Material
Cellulosa trattata

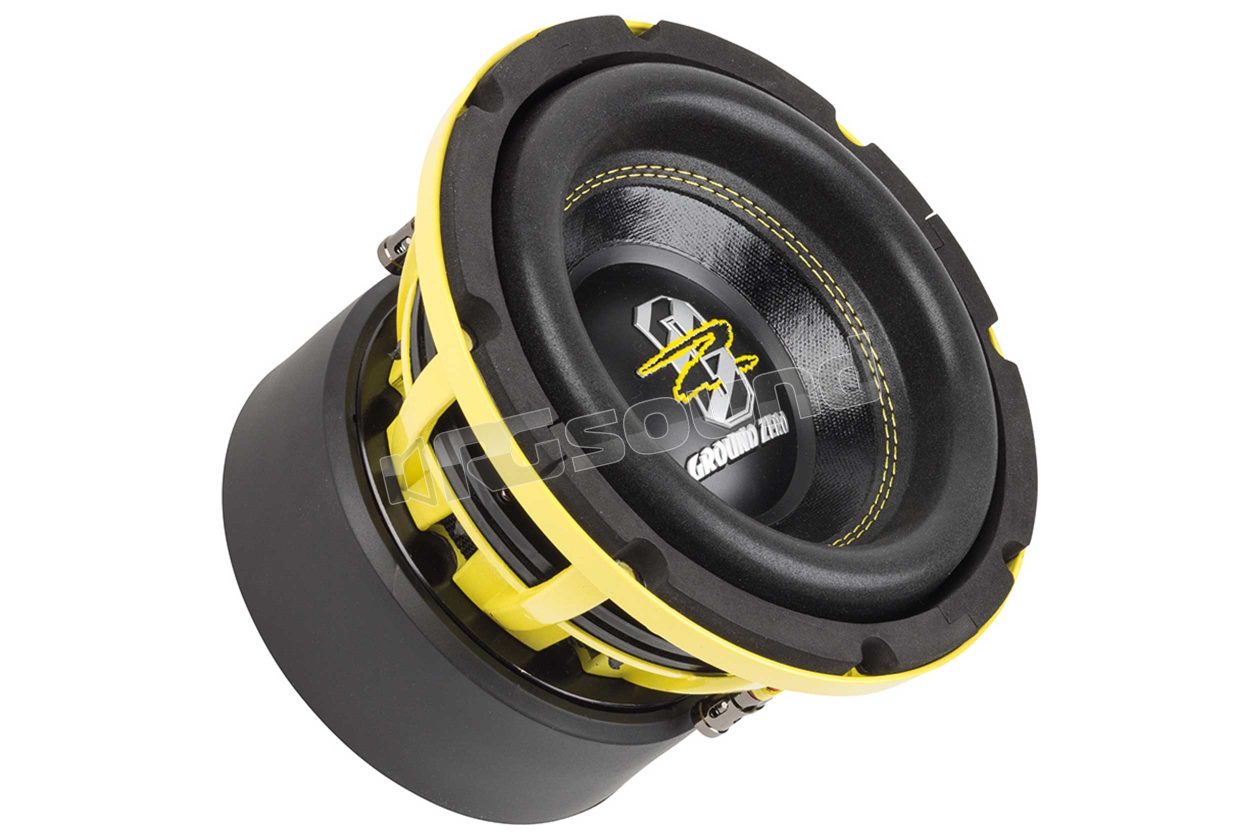

Ground Zero GZHW 8XSPL-D1 20cm subwoofer for SPL competitions Hydrogen Series

High power SPL subwoofer optimized Klippel, with triple magnet and steel basket, High-Roll sandwich suspension and push terminals.

Technical specifications subwoofer GZHW 8XSPL-D1

Diameter 200 mm (8")

Mounting hole diameter 215 (8.46")

Mounting depth 150 (5.9")

Copper voice coil 63 mm (2.5")

Treated cellulose cone

Power Handling 1500 W SPL Power

Impedance 2 x 1 Ohm

SPL 80 dB

Xmax 40 mm / 1.57"

Fs 42.5

Qts 0.473

Vas 3.65 L / 0.129 cu.ft.

Box recommendation vented 22 Liter / 0.78 cu.ft. - Tube 1 x Ø 8 cm / 3.15" - L = 27 cm / 10.63"

Box recommendation sealed 4 – 15 Liter net / 0.141 – 0.53 cu.ft. net

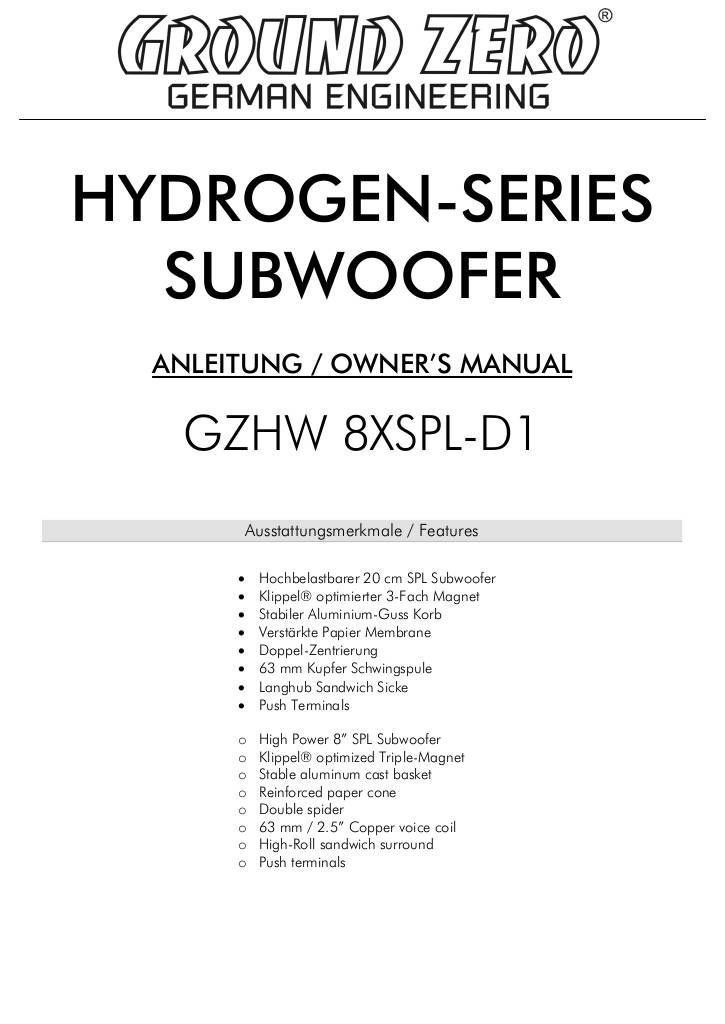

Manuale utente

n-20170303130519-gzhw-8xspl-om-062016.pdf

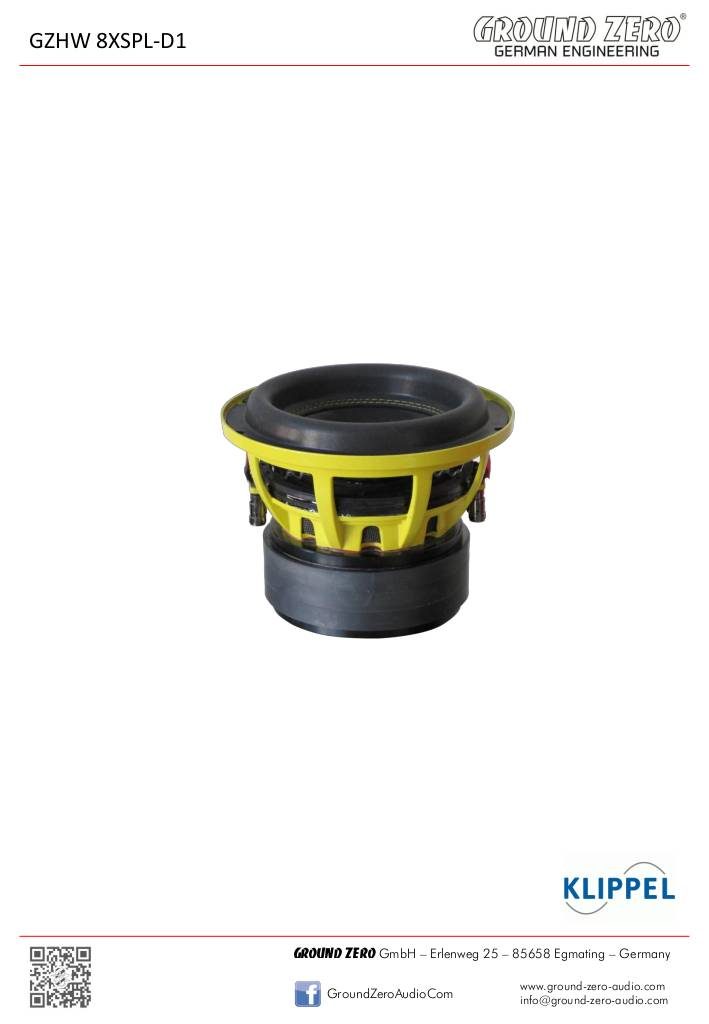

Scheda tecnica

n-20170303130519-gzhw-8xspl-d1-2017.pdf
Discontinued
