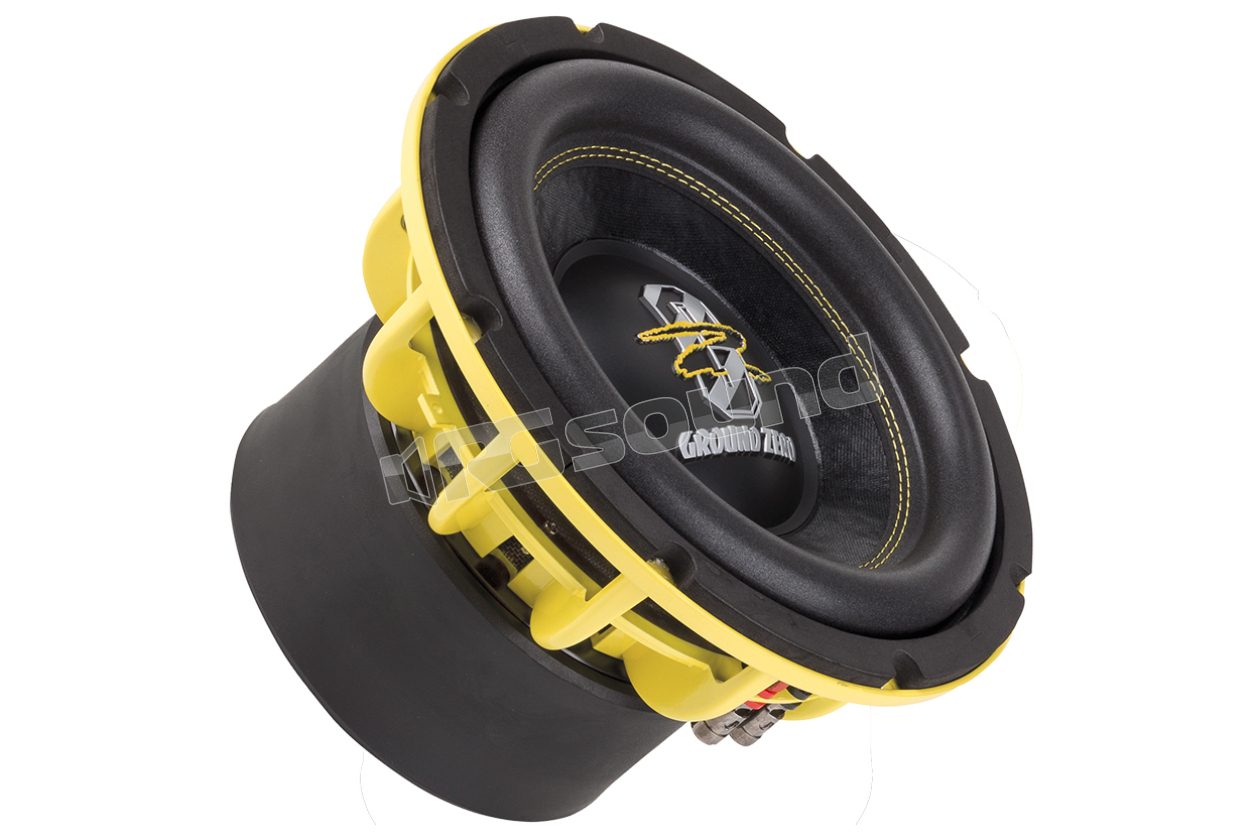

GZHW 10XSPL-D1 SPL sub 25cm

Ground Zero

Discontinued

Your price:
€ 236,60
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
RMS Power
2500 Watt
Frequency Response
40 - 120 Hertz
Sensitivity
85 dB
Impedance
2 Ohm
Weight
10 Kg
Installation Depth
155 mm
Woofer Material
Cellulosa trattata

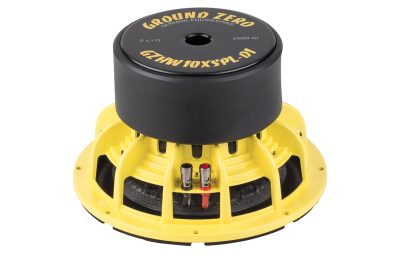

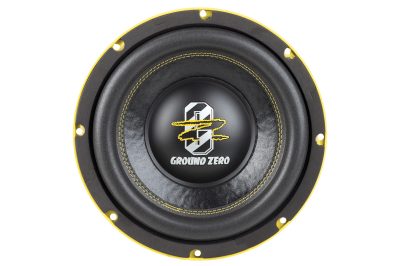

Ground Zero GZHW 10XSPL-D1 250 mm (10") high-power SPL subwoofer

- Triple optimized Klippel magnet
- Rigid die-cast aluminum basket
- Reinforced paper cone
- 63 mm (2.5") copper voice coil
- Push terminals

GZHW 10XSPL-D1 Features

Diameter 250 mm (10")

Mounting diameter 240 mm (9.45")

Mounting depth 155 mm (6.10")

Voice coil 2.5" Round wire

Reinforced paper Cone

Power Handling 2500 W SPL Power

Impedance 2 x 1 Ohm

SPL 85 dB

Xmax 40 mm / 1.57"

Fs 40.5 Hz

Qts 0.412

Vas 10.16 L / 0.359 cu.ft.

Box recommendation vented 40 Liter /1.412 cu.ft. - Rohr / Tube 1 x Ø 10 cm / 4" - L = 21 cm / 8.27"

Box recommendation sealed 5 - 15 Liter / 0.177 - 0.53 cu.ft.

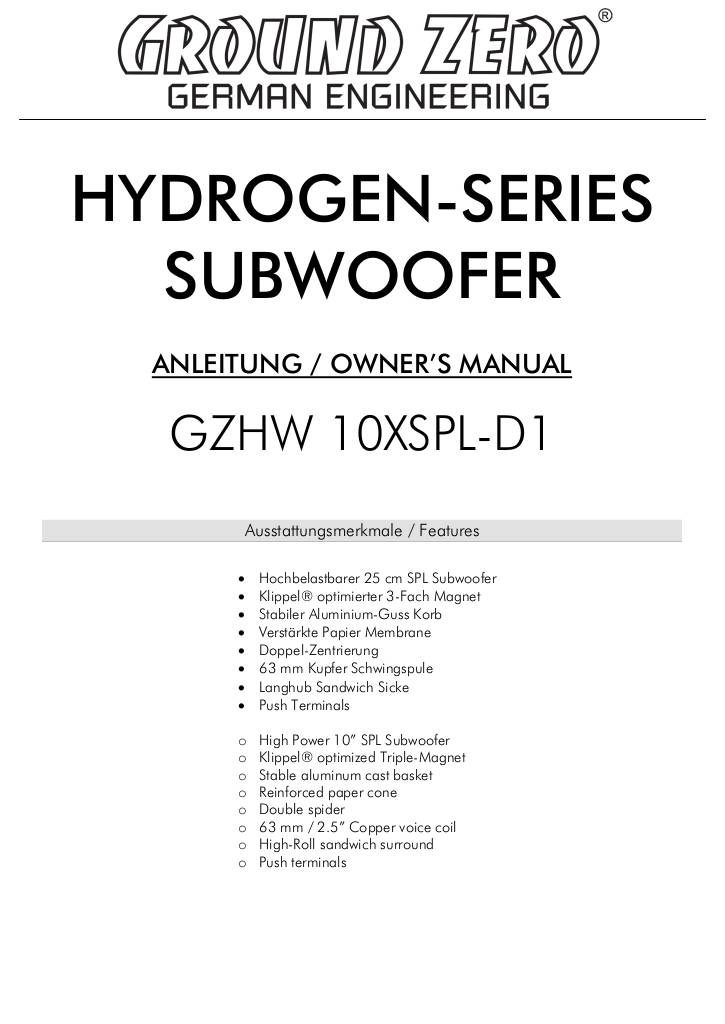

Manuale utente

20160120172427-gzhw-10xspl-om-082015.pdf

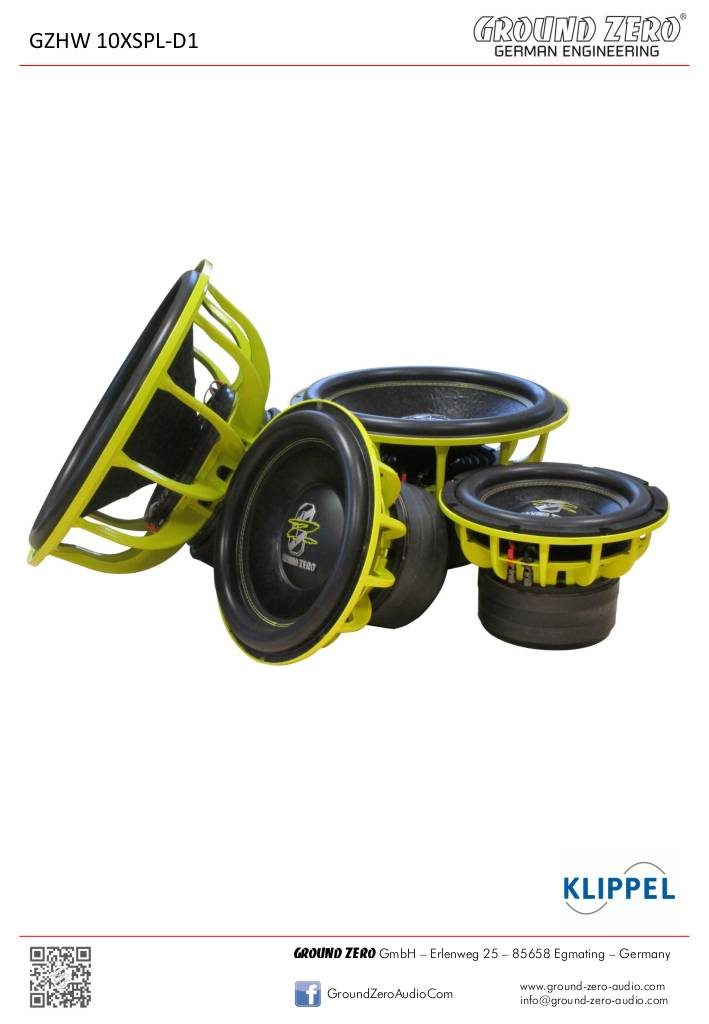

Scheda tecnica

20160120172427-gzhw-10xspl-d1.pdf
Discontinued
