GZCM 8.0N-PRO 20cm midrange Competition Pro

Ground Zero

Discontinued

Your price:
€ 227,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
300 Watt
Frequency Response
130 - 10.000 Hertz
Sensitivity
98 dB
Impedance
4 Ohm
Installation Depth
83 mm
Midrange Cone Material
Cellulosa pressata

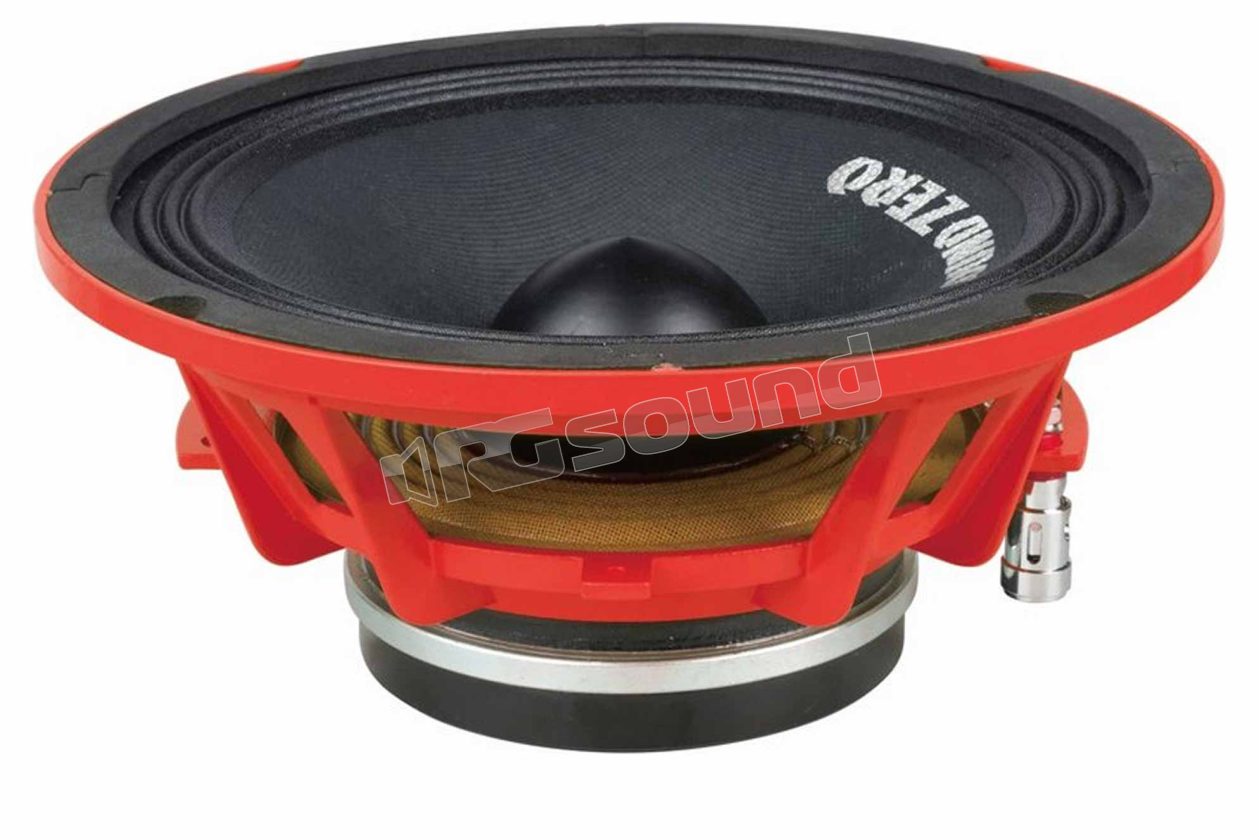

Ground Zero GZCM 8.0N-PRO single 20 cm midrange from the Competition Pro Series

GZCM 8.0N-PRO high power midrange with pressed and reinforced paper cone, aluminum basket, high efficiency neodymium magnet, 2.5" round wire copper-coated aluminum voice coil.

Technical features of the GZCM 8.0N-PRO:
Woofer diameter: 200 mm (8")
Mounting depth: 83 mm (7.24")
Mounting hole diameter: 209 mm (8.23")
Voice coil: 63 mm CCAW (2.5")
Reinforced paper fiber membrane
Magnet: Neodymium
Nominal power: 300 W RMS
Maximum power: 500 W
Impedance: 4 Ohm
SPL 98 dB
Frequency range: 130 - 10,000 Hz

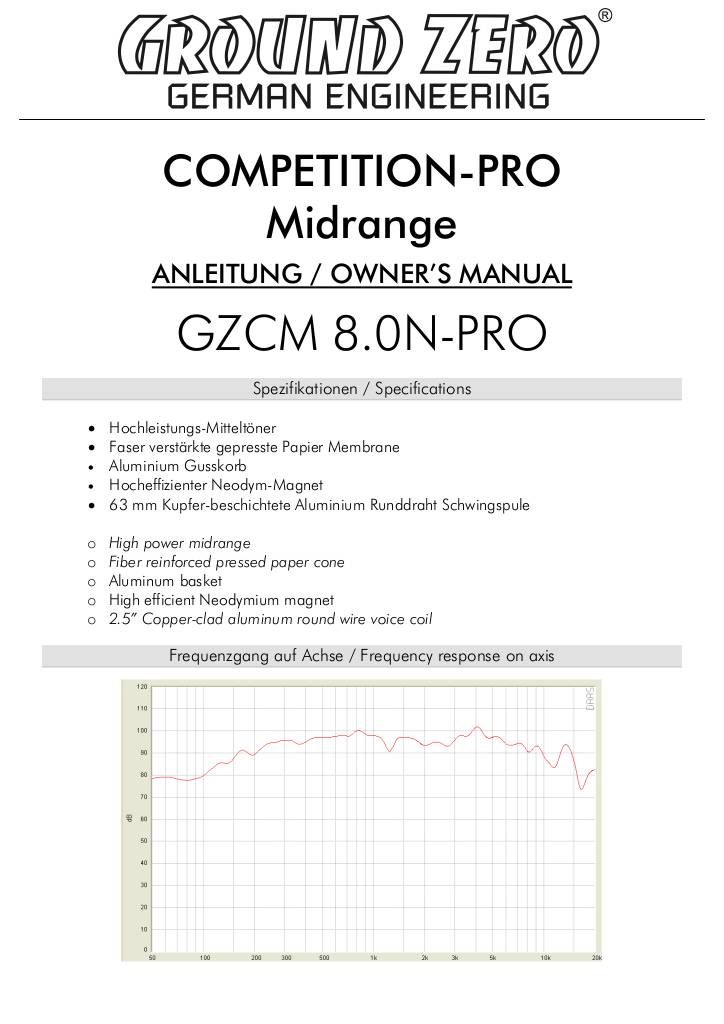

Manuale utente

n-20171002124018-gzcm-8-0n-pro-om-01-2017.pdf

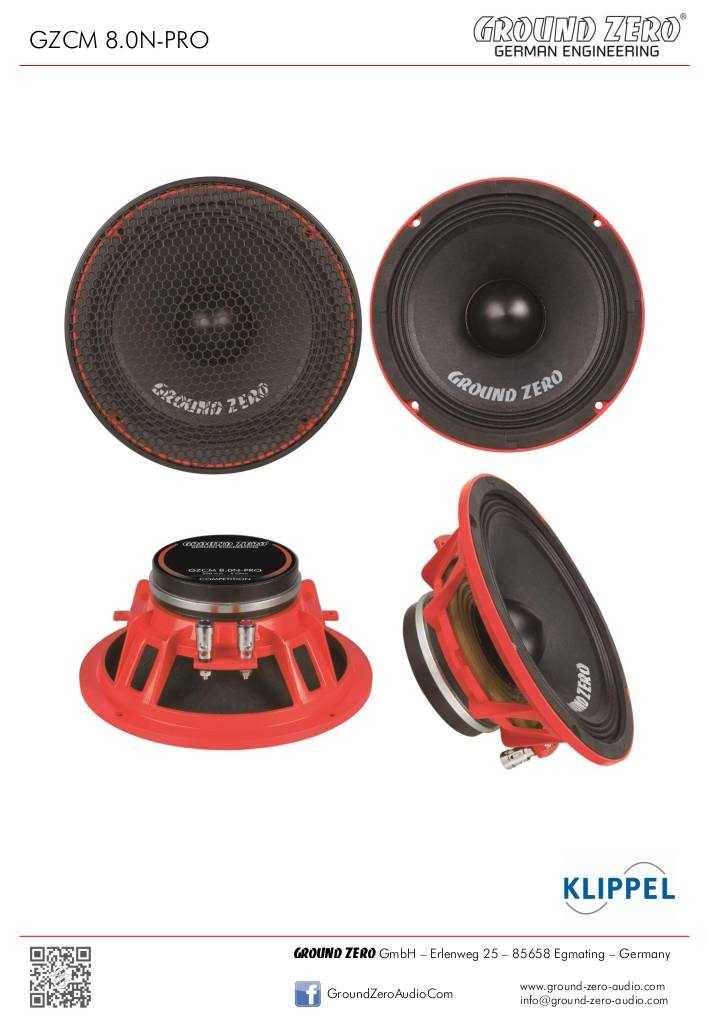

Scheda tecnica

n-20171002124018-gzcm-8-0n-pro-datasheet.pdf
Discontinued
