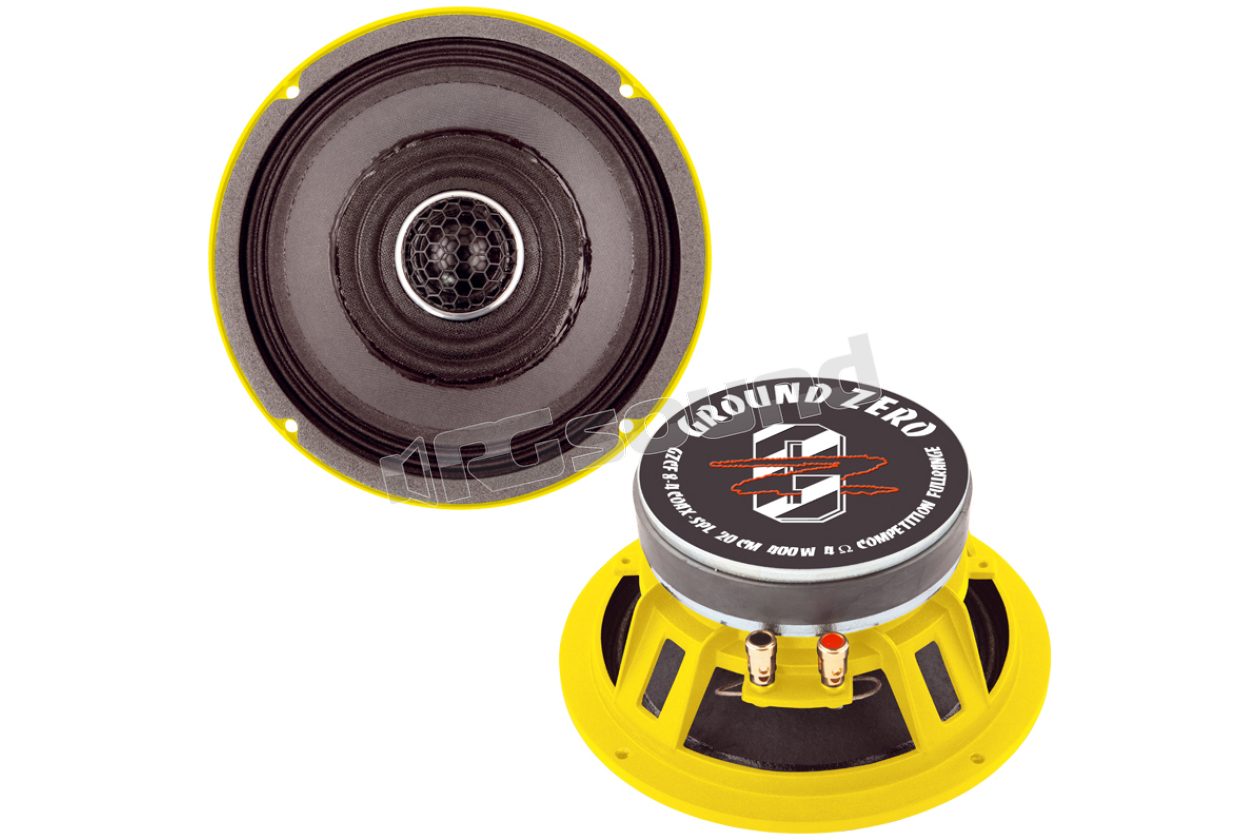

GZCF 8-4Coax-SPL high-end 20cm two-way coaxial speakers

Ground Zero

Discontinued

Your price:
€ 255,60
Price per single item (VAT included)
Type
Coaxial
Speaker Size
200 mm
Coaxial Type
2-way
Frequency Response
90 - 26.000 Hertz
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cono in cellulosa cestello in alluminio
Tweeter Material
Neodimio e Seta

GZCF 8 - 4 COAX SPL two-way coaxial 200mm; 200W RMS power

These coaxials can be paired with the two-way crossovers GZCX 8-4Coax-SPL

- GZCF 8-4Coax-SPL high power fullrange speakers
- 1.26" silk dome tweeter with excellent sound quality

Model GZCF 8 - 4 COAX SPL
Type 2 Way 2 Way Coax
Diameter of midwoofer or midrange 200 mm / 8"
Mounting diameter of midwoofer or midrange 185 mm / 7.28"
Mounting depth of midwoofer or midrange 95 mm / 3.74"
Voice coil of midwoofer or midrange 38 mm / 1.5"
Cone of midwoofer or midrange Paper
Basket of midwoofer or midrange Aluminium Cast
Magnet of midwoofer or midrange Ferrite
Voice coil of tweeter 32 mm / 1.26"
Cone of tweeter Silk
Housing of tweeter machined
Magnet of tweeter Neodym
Power handling WRMS 200 W
Power handling W peak 400 W
Impedance 4 Ohm
SPL 92 dB
Frequency response 90 - 26000 Hz

Scheda tecnica

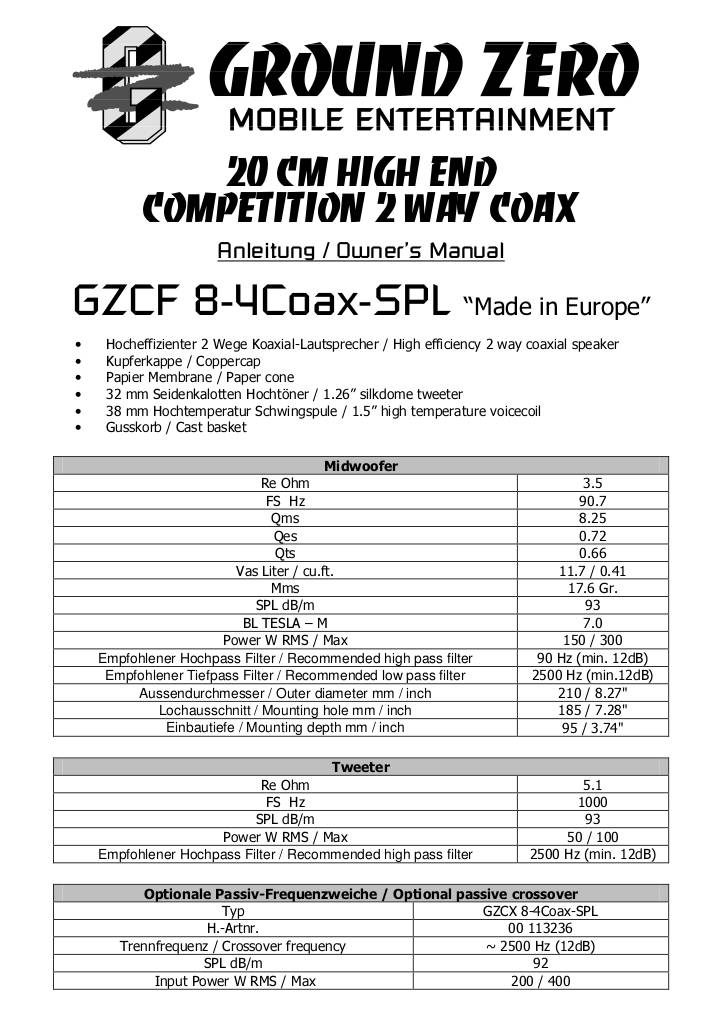

20140131111901-manualentwurf-gzcf-8-4coax-spl-vorlage.pdf
Discontinued
