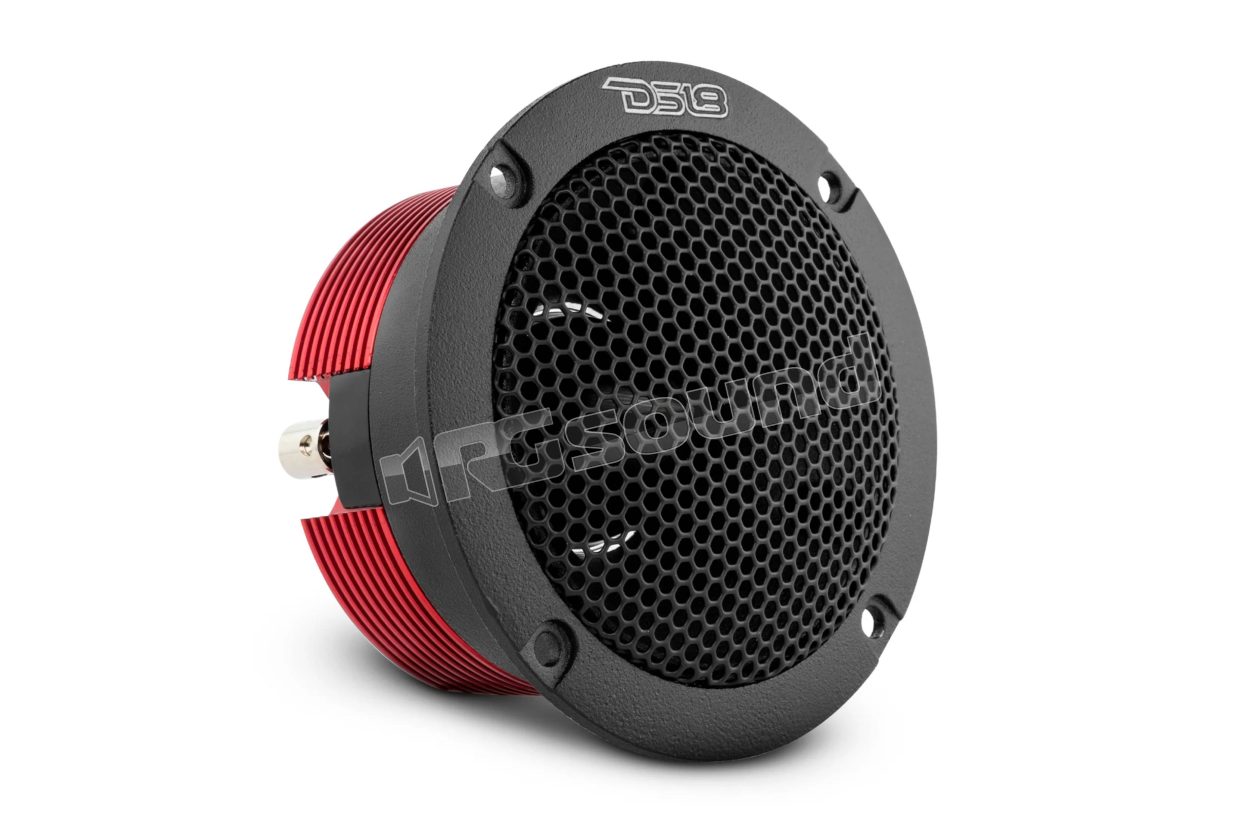

GTX1XL Neodymium Super Bullet Compression Tweeter

DS18

Coming soon

Your price:
€ 44,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
320 Watt
RMS Power
160 Watt
Frequency Response
2.50KHz-20KHz Hertz
Sensitivity
100 dB
Impedance
4 Ohm

DS18 GTX1XL Neodymium Compression Tweeter Super Bullet

The GTX1XL boasts a die-cast compression neodymium bullet design 3.75 inches with a maximum power of 320 W. With a sensitivity of 100 dB and a frequency response ranging from 2.5 kHz to 20 kHz, the GTX1XL ensures that no detail escapes your ears. Crafted with precision and refinement, the GTX1XL housing is made from high-strength aluminum, creating a robust enclosure that integrates with your vehicle's interior.

One of the main features of the GTX1XL is the 1.3 inch high-precision aluminum voice coil. This tweeter offers unmatched performance, ensuring the reproduction of every note with stunning clarity and detail. Versatility is at the core of the GTX1XL design. These super tweeters can be mounted anywhere there is space for them, giving you the freedom to experiment and create the perfect soundstage in your vehicle. Installed in traditional or unconventional positions, the GTX1XL offers exceptional performance, effortlessly.

Scheda tecnica

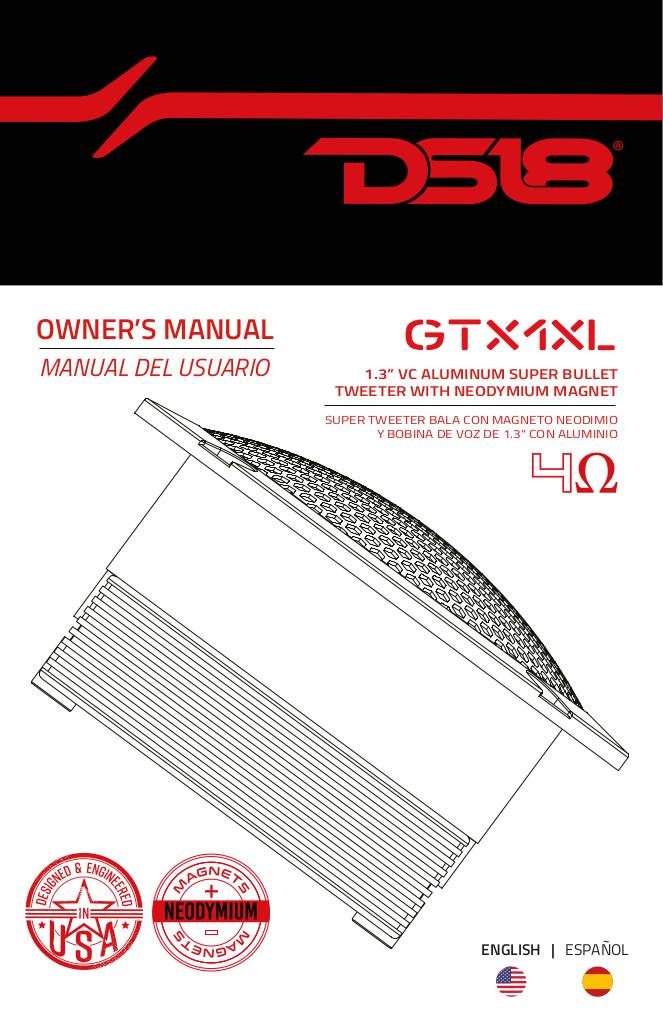

n-20241030150953-gtx1xl-scheda-tecnica.pdf

DS18 GTX1XL Technical Specifications

  • Nominal diameter 3.75" / 95 mm
  • Nominal impedance 4 Ohm
  • AES handling power 80 Watt
  • Program power 160 Watt
  • Peak power 320 Watt
  • Sensitivity (1w/1m) 100 db
  • Frequency response 2.5 K - 20 KHz
  • Recommended high-pass crossover 2.5 KHz

Motor

  • Voice coil diameter 1.3" / 33.5 mm
  • Voice coil material KSV
  • Winding material CCAW
  • Diaphragm material Aluminum
  • Magnet material Neodymium
  • Magnet weight 1.45 Oz
  • Body material Aluminum
  • Body color / Finish Black/Red

Measurements

  • Overall diameter 3.75" / 95 mm
  • Overall depth 2.24" / 57 mm
  • Deflector cutout for front mounting 2.95" / 73 mm
  • Mounting depth 1.73" / 44mm
  • Net weight of single unit (lb) 1.5
  • Box dimensions for single unit L x W x H (inches) 4.75 x 4.25 x 2.87
  • Quantity of units in main carton 24
  • Net weight of main carton (lb) 26.5
  • Main carton dimensions L x W x H (inches) 22 x 10.25 x 6.25
