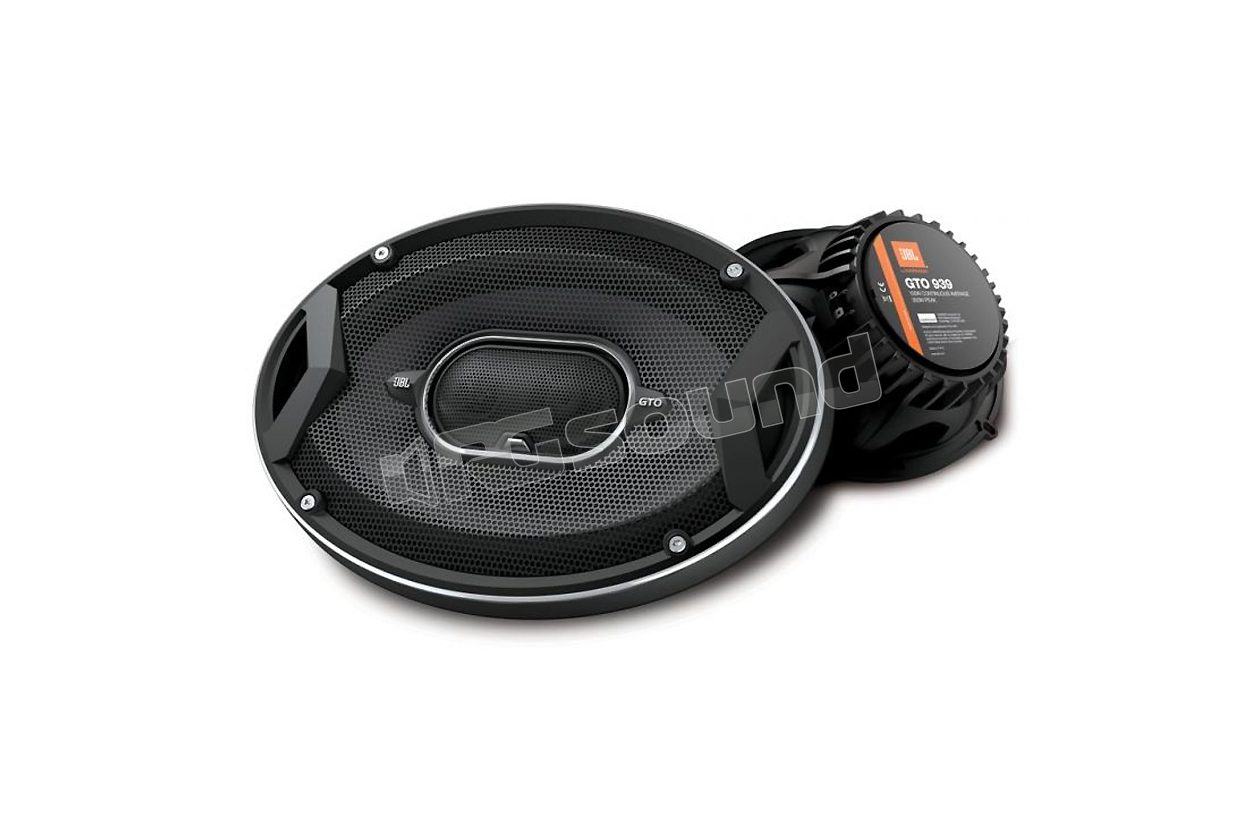

GTO-939 GTO Series

JBL

Discontinued

Your price:
€ 123,50
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
46 - 21.000 Hertz
MAX Power
600 Watt
RMS Power
200 Watt
Sensitivity
94 dB
Impedance
3 Ohm
Woofer Material
Carbonio
Tweeter Material
Mylar e titanio

6"x9" coaxial pair, 3-way, RMS/Peak power: 100W / 300W, 3 ohm

FEATURES

  • Standard woofer dimensions 6x9" (inches) - 15x23 cm - 150x230 mm.

  • 3-way system: oval woofers with superstructures containing the secondary ways.

  • The superstructures are composed of 2 tweeters, one smaller and one larger.

  • Crossovers integrated in the system, just connect the speakers to the sound source.

  • MAXIMUM power 600 W

  • RMS power 200 W

  • Sensitivity (2.83V/1m) 94 dB.

  • Frequency response 46 Hz / 21000 Hz.

  • Woofer resonance frequency Fs 53.93 Hz.

  • The manual contains all Thiele-Small parameters, for any enclosure construction.

  • Resistant and oversized woofers, made of injected carbon compound.

  • Tweeters in My-Ti (Mylar/Titanium composite), a rigid, lightweight and efficient composition.

  • Button for tweeter level emphasis (0 dB / +3 dB).

  • Frames made of a special carbon fiberglass composite.

  • These frames are extremely rigid and magnetically inert. For this reason they do not interfere with the "work" between magnet and coil and do not resonate like traditional materials.

  • Resistant and durable butyl rubber suspensions.

  • Low impedance system that compensates for resistance created by cables installed as standard on automobiles and increases the power output of the head unit or amplifier.

  • Nominal impedance 3 ohm.

  • Mounting depth 71 mm.

The advanced FRP baskets are non-magnetic to transfer more energy to the coil and the non-resonant material improves overall sound quality.

The Plus One injected carbon cones provide a larger diaphragm surface compared to other speakers in the same category. Carbon material is lightweight but maintains the rigidity needed to adapt properly to rapid cone movement.

The maximum frequency response of 21kHz provides a brilliant and spacious sound that spreads throughout the listening area.

The vented magnetic group cools the coil and reduces thermal compression.

The 3 ohm coils help compensate for the additional resistance due to standard speaker cables with reduced diameter. Compatible with all amplifiers and 4 ohm sources.

The high sensitivity (94dB @ 2.83V/1m) of the speakers allows reproduction at high levels even with low-power amplification.

MAIN FEATURES (coaxial models)
• The externally driven soft dome tweeter diaphragm allows you to reproduce music with extremely detailed voices and instruments, improving overall power handling.

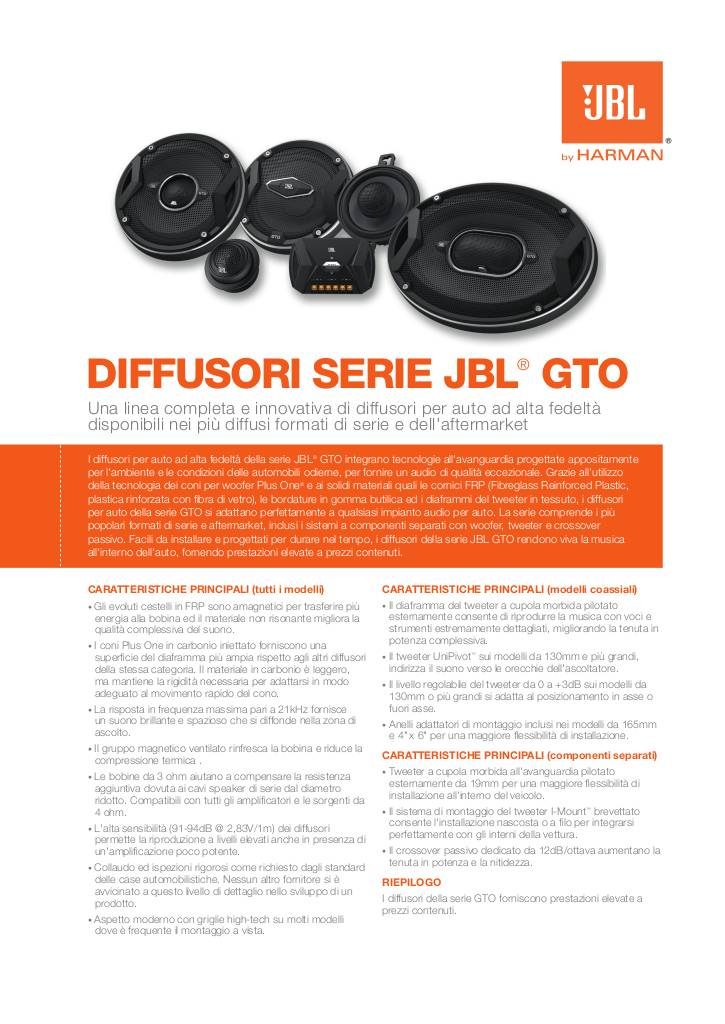

Scheda tecnica

20131203121815-specification-sheet-gto-9-series-speakers-italian.pdf
Discontinued
