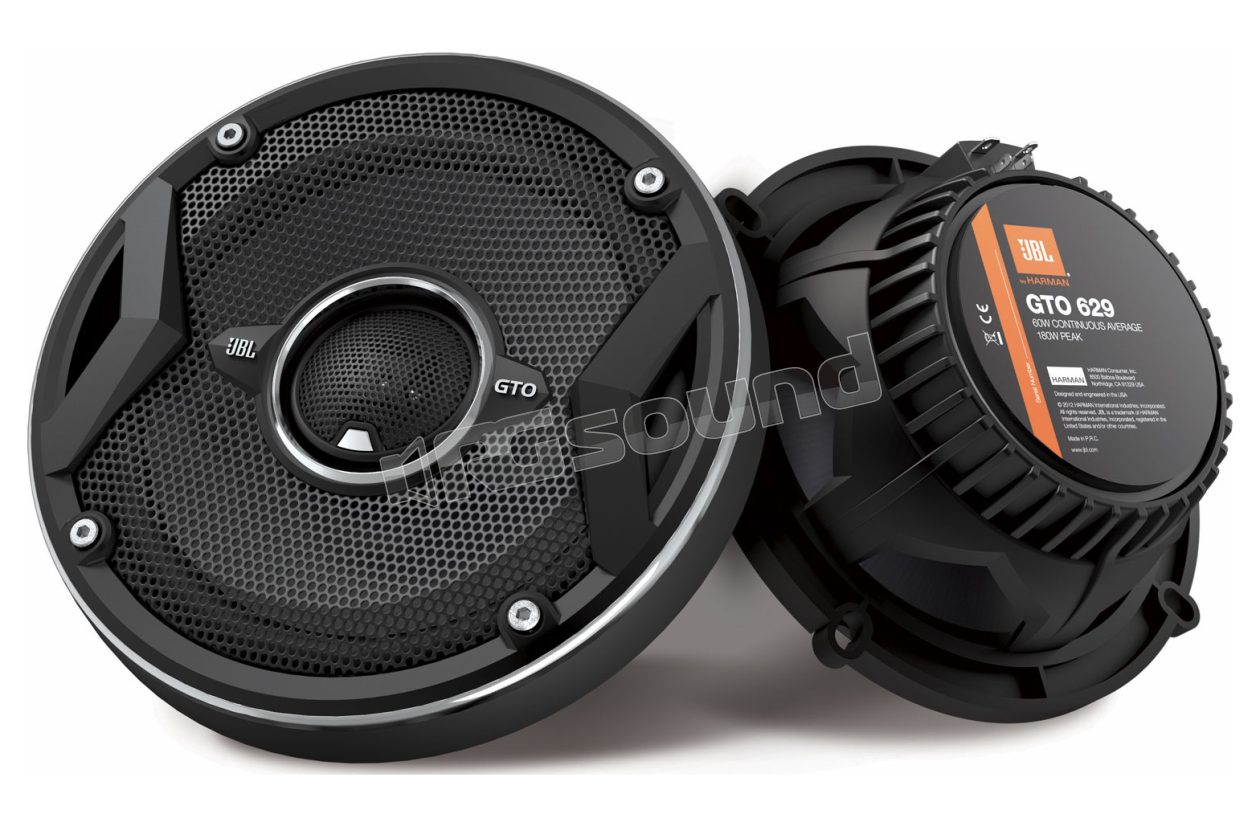

GTO-629 GTO Series

JBL

Discontinued

Your price:
€ 96,50
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
53 - 21.000 Hertz
MAX Power
360 Watt
RMS Power
120 Watt
Sensitivity
93 dB
Impedance
3 Ohm
Woofer Material
Carbonio
Tweeter Material
Mylar e titanio

Pair of coaxial 165 mm, 2-way, RMS/Peak power: 60W / 180W, 3 ohm

FEATURES

  • Standard woofer diameter 6.5" (inches) - 16.5 cm - 165 mm.

  • 2-way system: 1 woofer with superstructure composed of 1 tweeter.

  • Crossovers integrated in the system, just connect the speakers to the audio source.

  • MAXIMUM power 360 W

  • RMS power 120 W

  • Sensitivity (2.83V/1m) 93 dB.

  • Frequency response 53 Hz / 21000 Hz.

  • Woofer resonance frequency Fs 77.35 Hz.

  • The manual reports all Thiele-Small parameters, for possible enclosure construction.

  • Resistant and oversized woofers, made of injected carbon compound.

  • Tweeter in My-Ti (Mylar/Titanium composite), a rigid, light and efficient composition.

  • UniPivot™ system that allows you to orient the tweeters to direct the sound.

  • Orientation is achieved by rotating the tweeter, which tilts on its axis.

  • Button for tweeter level emphasis (0 dB / +3 dB).

  • Baskets made of a special carbon fiberglass composite.

  • These baskets are extremely rigid, and non-magnetic. For this reason they do not interfere with the "work" between magnet and coil and do not resonate like traditional materials.

  • Durable and resistant suspensions in butyl rubber.

  • Low impedance system, which compensates for the resistances created by the cables installed as standard on automobiles and increases the output power of the car radio or amplifier.

  • Nominal impedance 3 ohm.

  • Mounting depth 50 mm.

  • Protective grilles included

The advanced FRP baskets are non-magnetic to transfer more energy to the coil and the non-resonant material improves the overall sound quality.

The Plus One carbon injected cones provide a larger diaphragm surface compared to other speakers in the same category. The carbon material is light, but maintains the rigidity needed to properly adapt to the rapid movement of the cone.

The maximum frequency response of 21kHz provides a bright and spacious sound that spreads throughout the listening area.

The vented magnet assembly cools the coil and reduces thermal compression.

The 3 ohm coils help compensate for the additional resistance due to standard speaker cables with reduced diameter. Compatible with all 4 ohm amplifiers and sources.

The high sensitivity (93dB @ 2.83V/1m) of the speakers allows reproduction at high levels even with less powerful amplification.

MAIN FEATURES (coaxial models)
• The externally driven soft dome tweeter diaphragm allows you to reproduce music with extremely detailed voices and instruments, improving overall power handling.

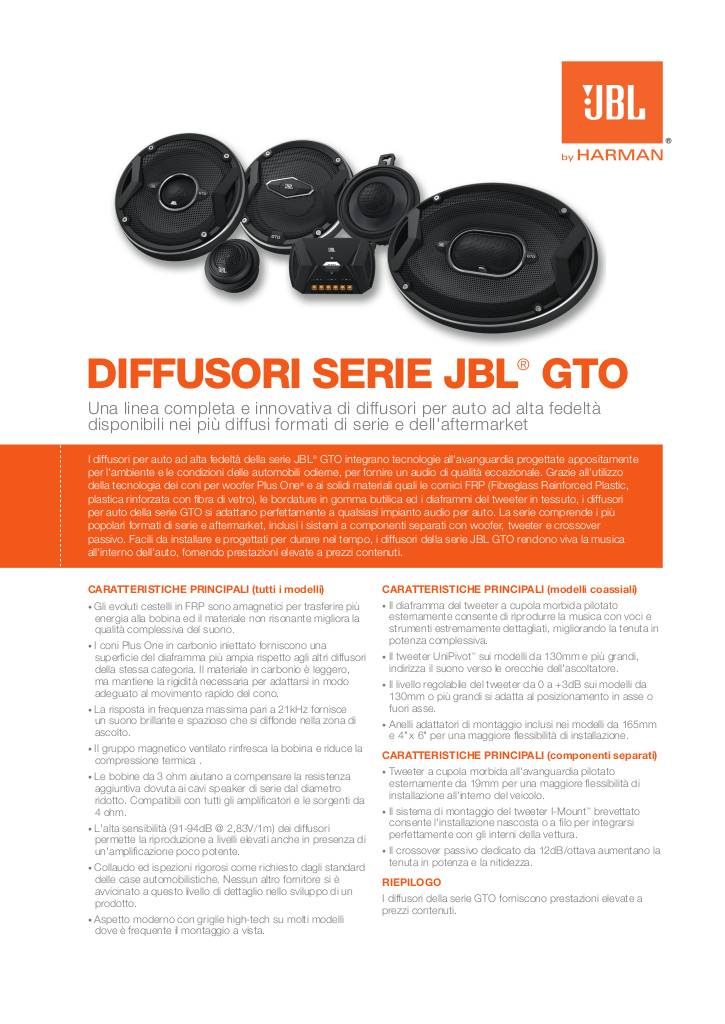

Scheda tecnica

20131203121815-specification-sheet-gto-9-series-speakers-italian.pdf
Discontinued
