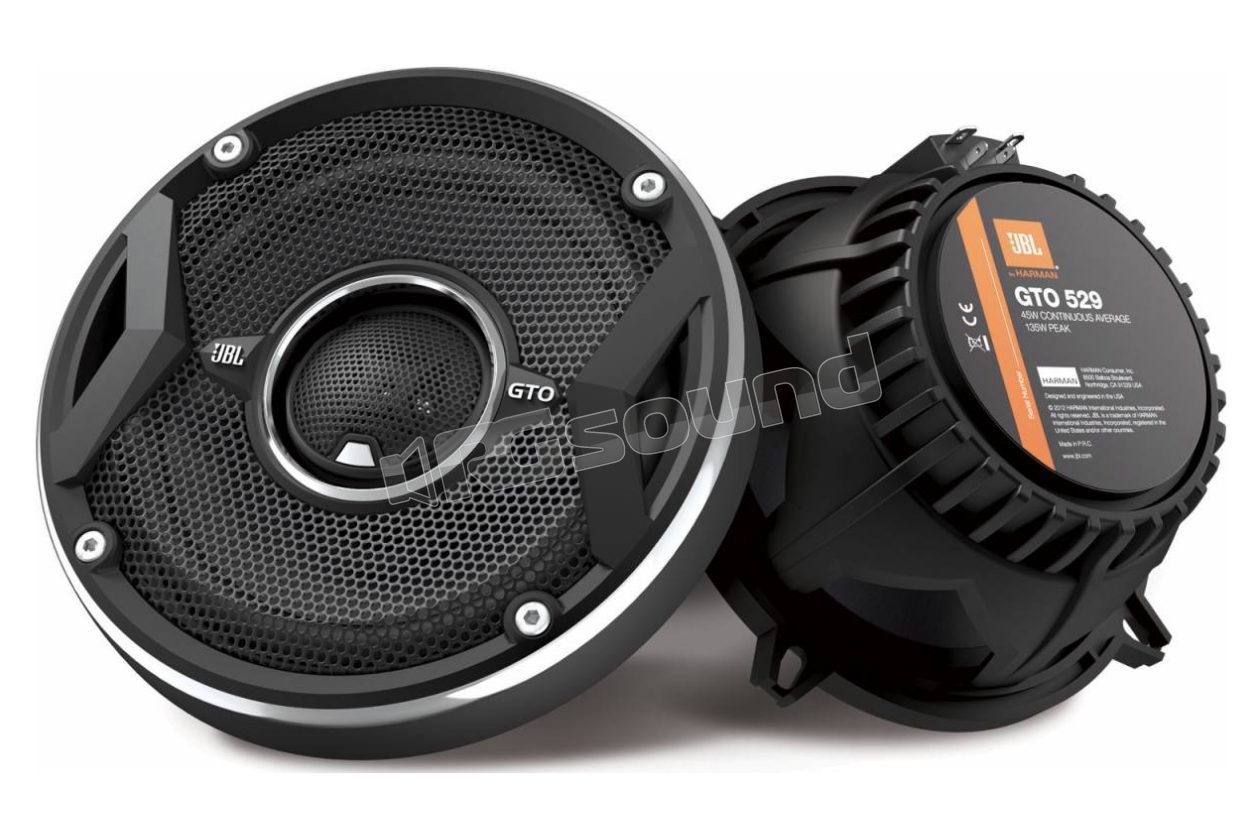

GTO-529 GTO Series

JBL

Discontinued

Your price:
€ 88,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
67 - 21.000 Hertz
MAX Power
270 Watt
RMS Power
90 Watt
Sensitivity
92 dB
Impedance
3 Ohm
Woofer Material
Carbonio
Tweeter Material
Mylar e titanio

Pair of coaxial 130 mm, 2-way, RMS/Peak power: 45W / 135W, 3 ohm

FEATURES

  • Standard woofer diameter 5.25" (inches) - 13 cm - 130 mm.

  • 2-way system: 1 woofer with structure composed of 1 tweeter.

  • Crossovers integrated in the system, just connect the speakers to the audio source.

  • MAXIMUM power 270 W

  • RMS power 90 W

  • Sensitivity (2.83V/1m) 92 dB.

  • Frequency response 67 Hz / 21000 Hz.

  • Woofer resonance frequency Fs 94.65 Hz.

  • The manual contains all Thiele-Small parameters, for possible enclosure construction.

  • Woofers resistant and oversized, made of injected carbon compound.

  • Tweeter in My-Ti (Mylar/Titanium composite), a rigid, lightweight and efficient composition.

  • UniPivot™ system that allows you to orient the tweeters to direct the sound.

  • Orientation is obtained by rotating the tweeter, which tilts on its axis.

  • Button for emphasizing the tweeter level (0 dB / +3 dB).

  • Baskets made of a special carbon fiberglass composite.

  • These baskets are extremely rigid and non-magnetic. For this reason they do not interfere with the "work" between magnet and coil and do not resonate like traditional materials.

  • Durable and resistant rubber butyl suspensions.

  • Low impedance system, which compensates for the resistance created by the cables installed as standard on automobiles and increases the output power of the head unit or amplifier.

  • Nominal impedance 3 ohm.

  • Mounting depth 54 mm.

  • Protective grilles included

The advanced FRP baskets are non-magnetic to transfer more energy to the coil and the non-resonant material improves the overall sound quality.

The Plus One carbon injected cones provide a larger diaphragm surface compared to other speakers in the same category. Carbon material is lightweight but maintains the rigidity needed to adapt properly to the rapid movement of the cone.

The maximum frequency response of 21kHz provides a bright and spacious sound that spreads throughout the listening area.

The ventilated magnet group cools the coil and reduces thermal compression.

The 3 ohm coils help compensate for additional resistance from standard speaker cables with reduced diameter. Compatible with all amplifiers and 4 ohm sources.

The high sensitivity (92dB @ 2.83V/1m) of the speakers allows reproduction at high levels even in the presence of low-powered amplification.

MAIN FEATURES (coaxial models)
• The externally driven soft dome tweeter diaphragm allows you to reproduce music with extremely detailed voices and instruments, improving the overall power holding capacity.

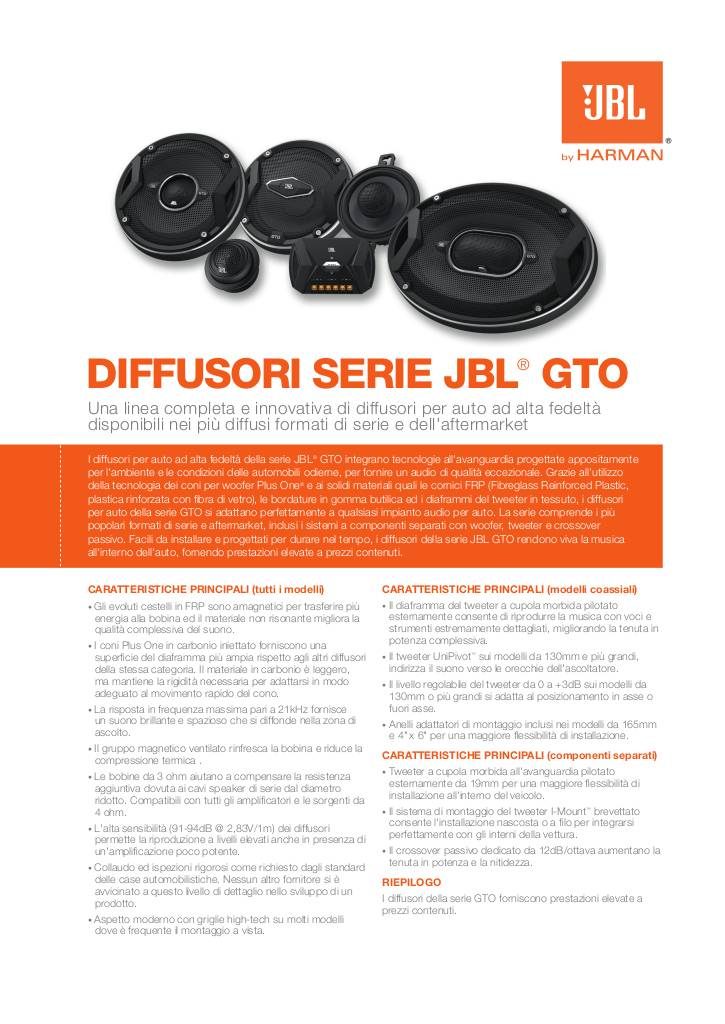

Scheda tecnica

20131203121815-specification-sheet-gto-9-series-speakers-italian.pdf
