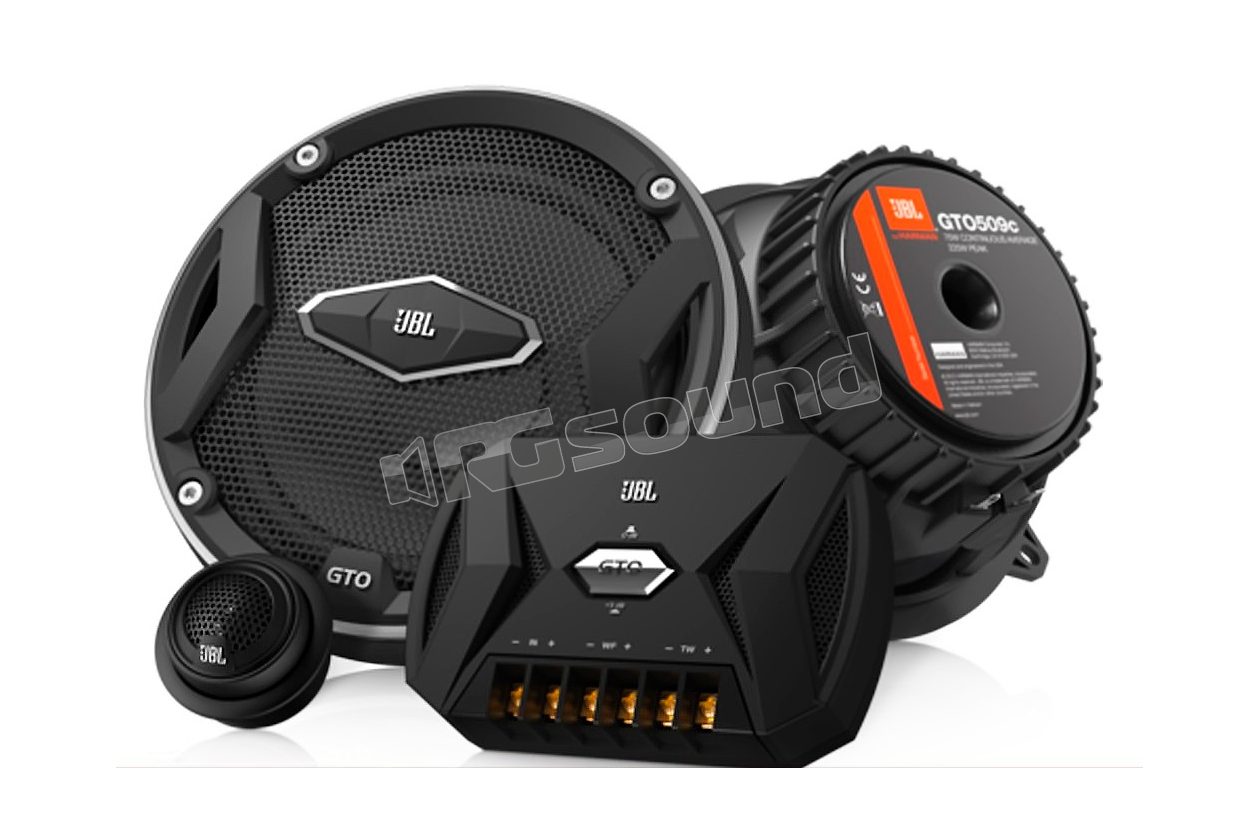

GTO-509C GTO Series

JBL

Discontinued

Your price:
€ 116,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
67 - 21.000 Hertz
Woofer Size
130 mm
Tweeter Size
19 millimetri
MAX Power
450 Watt
RMS Power
150 Watt
Sensitivity
92 dB
Impedance
3 Ohm
Woofer Material
Carbonio

2-way component system, 130 mm woofer, RMS / Peak power: 75W / 225W, 3 ohm (grilles included)

FEATURES

  • Standard woofer diameter 5.25" (inches) - 13 cm - 130 mm.

  • 2-way system with 2 woofers and 2 separately positionable tweeters.

  • 2 high-quality passive crossovers with plated contacts (12dB/octave).

  • MAXIMUM power 450 W

  • RMS power 150 W

  • Sensitivity (2.83V/1m) 92 dB.

  • Frequency response 67 Hz / 21000 Hz.

  • Woofer resonance frequency Fs 86.2 Hz.

  • The manual contains all Thiele-Small parameters for possible enclosure construction.

  • Robust and enhanced woofers, made from injected carbon composite.

  • Tweeter with soft 19mm dome for high performance, for crystal-clear reproduction.

  • Button for tweeter level emphasis positioned on each crossover (0 dB / +3 dB).

  • Baskets made from a special carbon fiberglass composite.

  • These baskets are extremely rigid and magnetically inert. For this reason they do not interfere with the "work" between magnet and coil and do not resonate like traditional materials.

  • Durable butyl rubber suspensions.

  • Coil ventilation system that prevents overheating during prolonged reproduction.

  • Low impedance system that compensates for the resistance created by the cables installed as standard on automobiles and increases the output power of the head unit or amplifier.

  • Nominal impedance 3 ohm.

  • Woofer mounting depth 57 mm.

  • Tweeter depth (without accessories) 20mm (+/- 4mm for cables).

  • Tweeter diameter (without accessories) 39mm.

  • Protective grilles included.

KEY FEATURES

• Advanced amagnet FRP baskets transfer more energy to the coil and the non-resonant material improves overall sound quality.
• The Plus One carbon-injected cones provide a larger diaphragm surface compared to other speakers in the same category. Carbon material is lightweight, yet maintains the rigidity needed to properly adapt to rapid cone movement.
• The maximum frequency response of 21kHz provides bright and spacious sound that spreads throughout the listening area.
• The ventilated magnet group cools the coil and reduces thermal compression.
• The 3 ohm coils help compensate for the additional resistance due to reduced-diameter factory speaker cables. Compatible with all 4 ohm amplifiers and sources.
• Advanced soft dome 19mm externally driven tweeter for greater installation flexibility within the vehicle.
• The proprietary I-Mount™ tweeter mounting system allows for hidden or flush installation to integrate perfectly with the vehicle's interior.

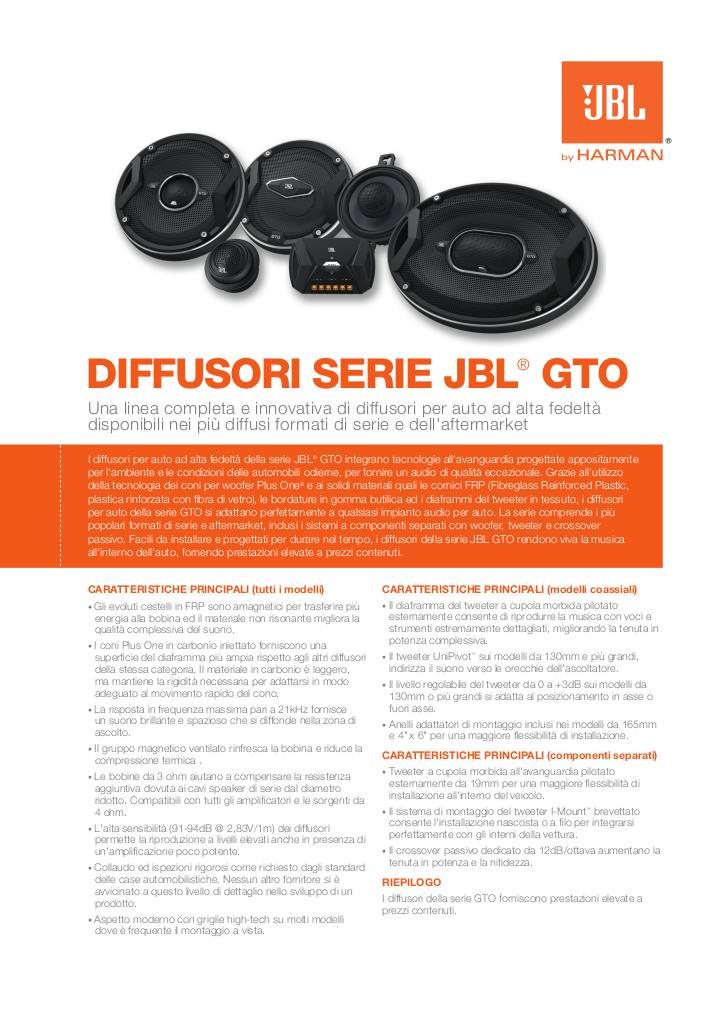

Scheda tecnica

20131203121815-specification-sheet-gto-9-series-speakers-italian.pdf

2x Woofer 2x Tweeter 2x Crossover Speaker grilles included
Discontinued
