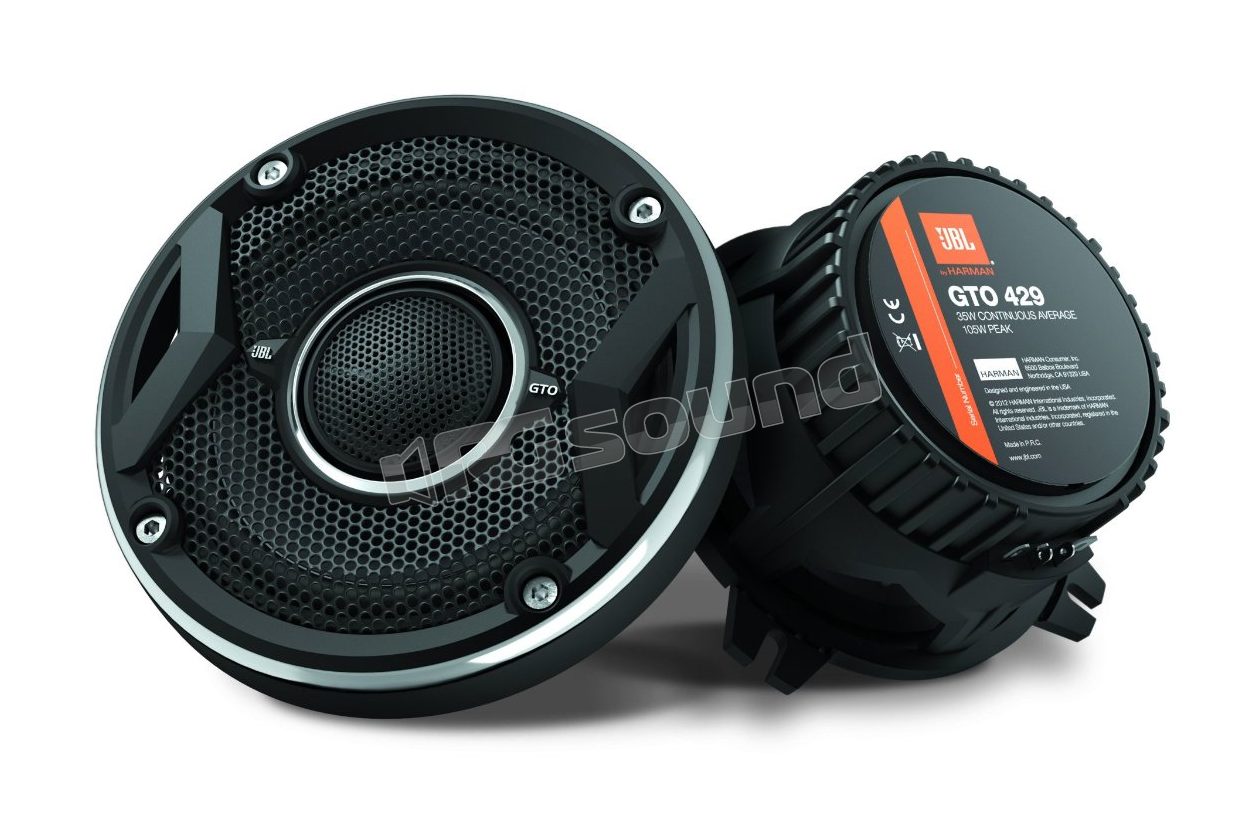

GTO-429 GTO Series

JBL

Discontinued

Your price:
€ 78,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
75 - 21.000 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
92 dB
Impedance
3 Ohm
Woofer Material
Carbonio
Tweeter Material
Mylar e titanio

4" (100 mm) 2-way coaxial speakers, RMS/Peak power: 35W / 105W, 3 ohm

FEATURES

  • Standard woofer diameter 4" (inches) - 10 cm - 100 mm.

  • 2-way system: 1 woofer with 1 tweeter assembly on top.

  • Integrated crossovers in the system, just connect the speakers to the audio source.

  • MAXIMUM power 210 W

  • RMS power 70 W

  • Sensitivity (2.83V/1m) 92 dB.

  • Frequency response 75 Hz / 21000 Hz.

  • Woofer resonance frequency Fs 138.52 Hz.

  • The manual includes all Thiele-Small parameters for possible enclosure construction.

  • Resistant and oversized woofers made from injected carbon composite.

  • Tweeter in My-Ti (Mylar/Titanium composite), a rigid, light and efficient composition.

  • Frames made from a special carbon fiberglass composite.

  • These frames are extremely rigid and inert to magnetism. For this reason they do not interfere with the "work" between magnet and coil and do not resonate like traditional materials.

  • Resistant and durable butyl rubber suspensions.

  • Low impedance system that compensates for the resistance created by standard car speaker cables and increases the output power of the head unit or amplifier.

  • Nominal impedance 3 ohm.

  • Mounting depth 48 mm.

  • Protective grilles included

The advanced FRP baskets are non-magnetic to transfer more energy to the coil and the non-resonant material improves the overall sound quality.

The Plus One carbon cones provide a larger diaphragm surface compared to other speakers in the same category. Carbon material is light but maintains the rigidity needed to move the cone appropriately for rapid movement.

The maximum frequency response of 21kHz delivers bright and spacious sound that spreads throughout the listening area.

The vented magnetic assembly cools the coil and reduces thermal compression.

The 3 ohm coils help to compensate for the additional resistance from reduced diameter standard speaker cables. Compatible with all 4 ohm amplifiers and sources.

The high sensitivity (92dB @ 2.83V/1m) of the speakers allows playback at high levels even with low-power amplification.

KEY FEATURES (coaxial models)
• The externally driven soft dome tweeter diaphragm allows you to reproduce music with extremely detailed vocals and instruments, improving overall power handling.

Scheda tecnica

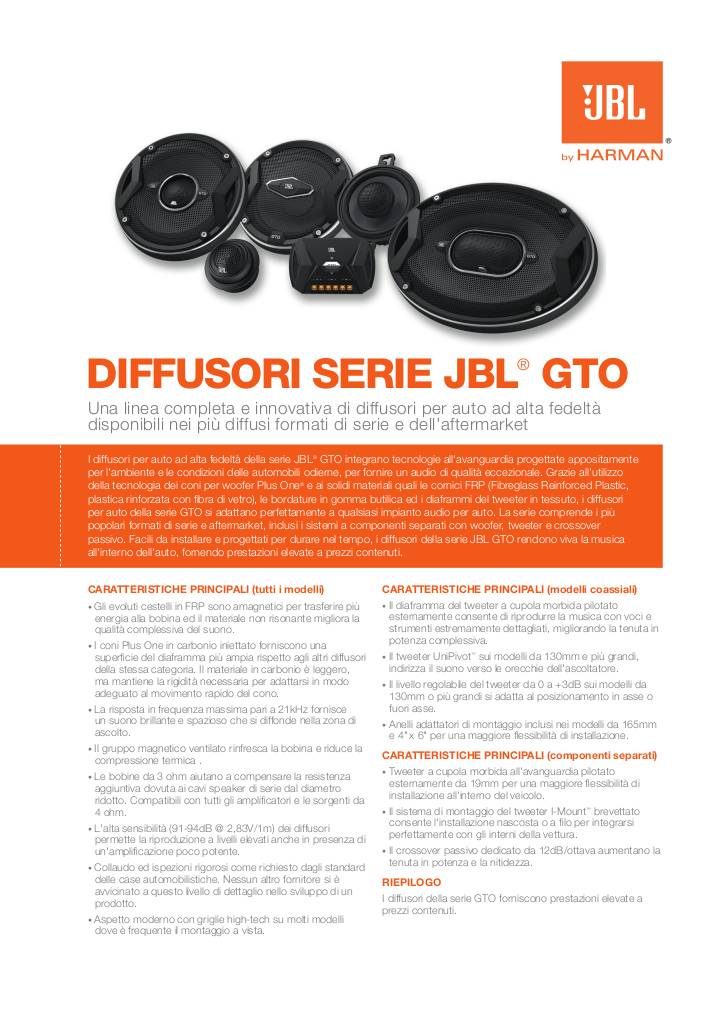

20131203121815-specification-sheet-gto-9-series-speakers-italian.pdf
Discontinued
