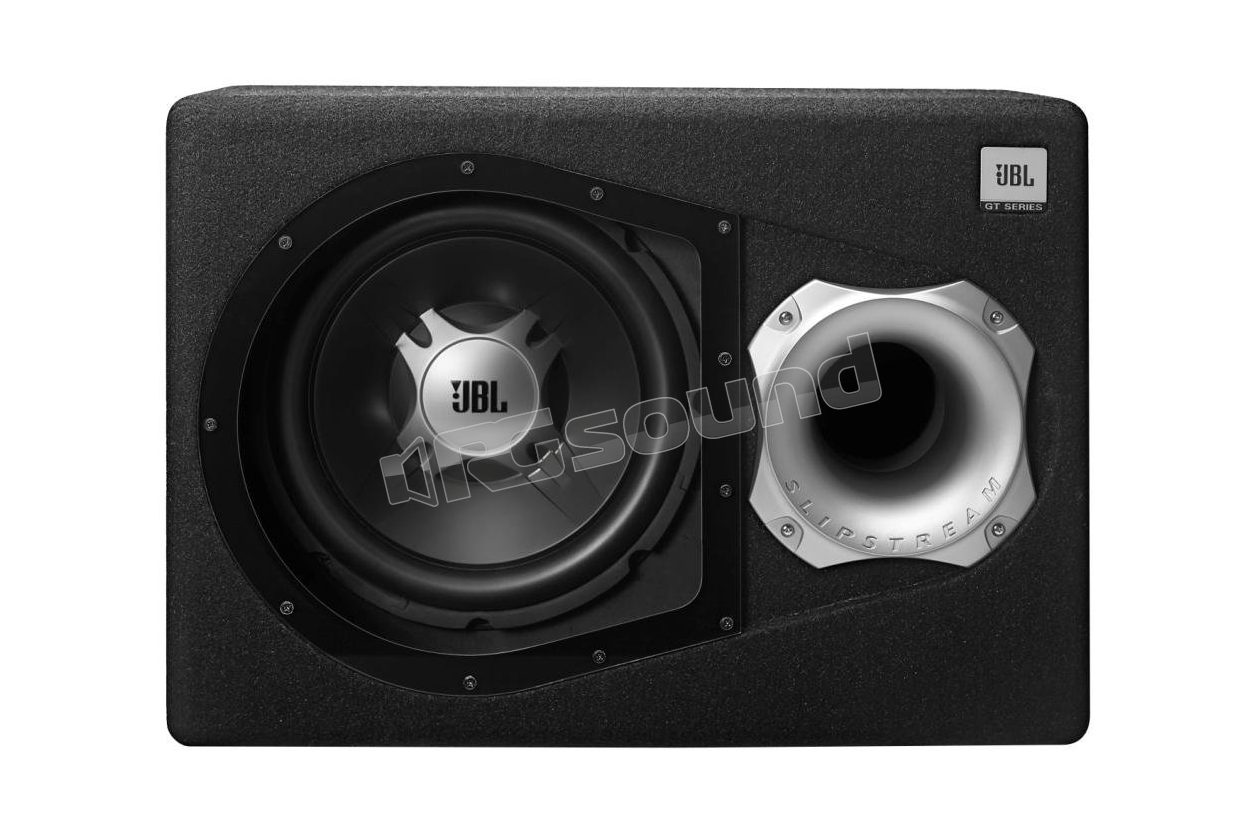

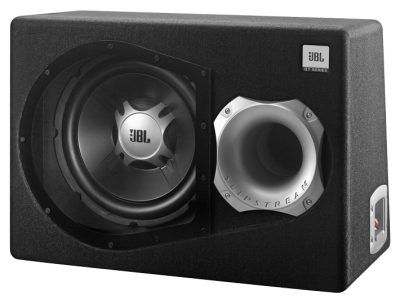

GT5-1204BP

JBL

Discontinued

Your price:
€ 165,30
Price per single item (VAT included)
Type
Subwoofer in enclosure
Speaker Size
300 mm
MAX Power
1100 Watt
RMS Power
275 Watt
Frequency Response
35 - 100 Hertz
Sensitivity
93 dB
Enclosure Size
602 x 420 x 342 mm
Enclosure Type
Sealed Enclosure

Subwoofer Box with 300mm pass-band

  • Passive subwoofer in bandpass loaded enclosure (vented only).
  • Driver model JBL GT5-12.
  • MAXIMUM power 1100W.
  • RMS power 275W.
  • Frequency response 35Hz / 100Hz.
  • Driver sensitivity 93dB (2.83W/1m).
  • Driver resonance frequency Fs 29Hz.
  • X-max +/- 14.2mm (total 2 sides 28.4mm).
  • 2" (inches) coil - 51mm.
  • Cone with stiffening ribs that extend toward the central jbl logo.
  • Reinforced rubber suspension.
  • Dual overlapped magnet system.
  • Box made of solid MDF with carpet coating.
  • The plexiglas panel closes the bandpass system allowing the woofer to be seen.
  • The internal volume of the enclosure is calculated for maximum performance.
  • The bandpass system allows the reproduction of "very deep bass".
  • Air Port Slipstream, an exclusive JBL system that eliminates turbulence and distortion.
  • The air output flow is "accompanied" gradually, for impeccable sound.
  • Quality connectors, plated.
  • Approximate dimensions (WxHxD) 602 x 420 x 342 mm.

Discontinued
