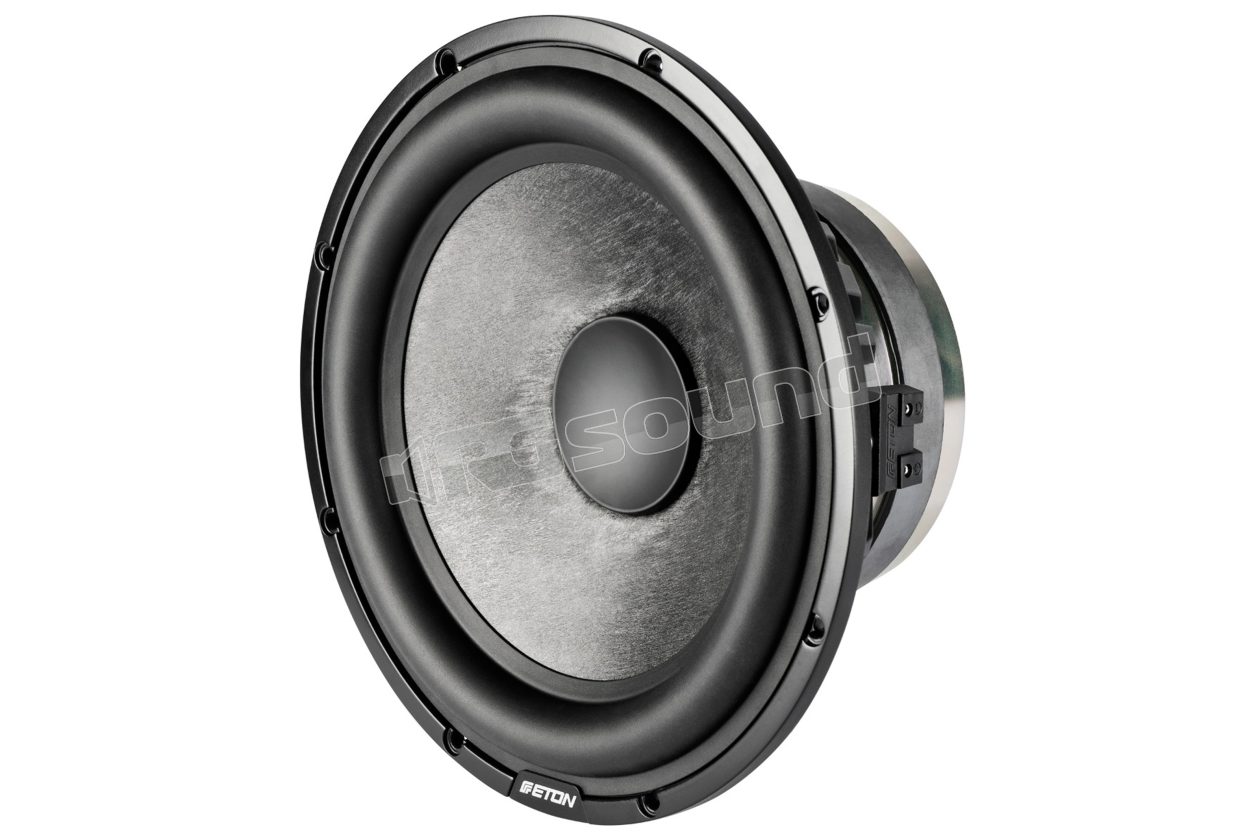

GRAPHIT 10-2 250 mm Subwoofer, 2+2 Ohm

ETON
Your price:
€ 549,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1000 Watt
RMS Power
600 Watt
Sensitivity
85 dB
Impedance
2+2 Ohm
Installation Depth
124,5 mm

ETON Graphit 10-2 subwoofer High End 25 cm, dual coil 2 Ohm

Designed and manufactured in Germany. This is pure quality that you can see and especially hear! The new GRAPHIT series embodies all our commitment to quality and performance Made by ETON.

This series stands out for its design and performance: dual mobile coil 2 x 2 Ohm, extremely loadable at the end. Extremely resistant ferrite magnet with high-quality iron parts with ventilation holes and large hole for the cast core for optimal ventilation and to avoid compression effects. New carbon fleece sandwich diaphragm, highly resistant to torsion. New connection terminals and new die-cast aluminum basket. A subwoofer in a class of its own, for extremely fast and dynamic sound, for decisive attack and for impressive bass passages!

High-quality dual coil subwoofer 250 mm (10") with dual 63 mm coil for heavy-duty applications with impedance of 2 x 4 ohm, nominal power handling of 600 W (RMS), maximum musical power handling of 1000 W, long-throw surround with specially developed die-cast aluminum basket and new carbon fleece sandwich membrane for precise musical reproduction. Extremely strong ferrite magnet with specially developed ventilation, new connection terminals. 85 dB characteristic sound pressure level, 265 mm external diameter, 235 mm output diameter, 124.5 mm installation depth.

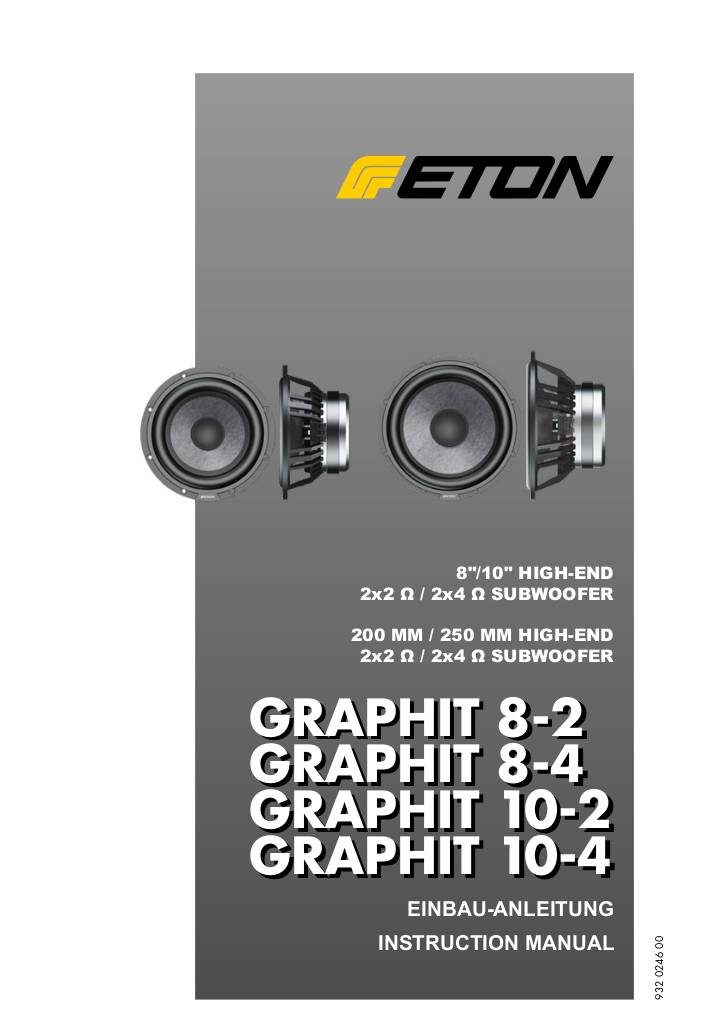

Manuale utente

n-20240812123035-graphit8-2-8-4-10-2-10-4-bda-web-2.pdf

ETON GRAPHIT 10-2 technical specifications

  • Maximum load capacity: 2 x 500 Watt
  • Nominal load capacity: 2 x 300 Watt RMS
  • Nominal impedance: 2 x 2 ohm
  • Sound pressure sensitivity: 85 dB
  • External diameter: Ø265 mm
  • Installation hole cutout diameter: Ø 235 mm
  • Installation depth: 124.5 mm
€ 549,00 Price incl. VAT
