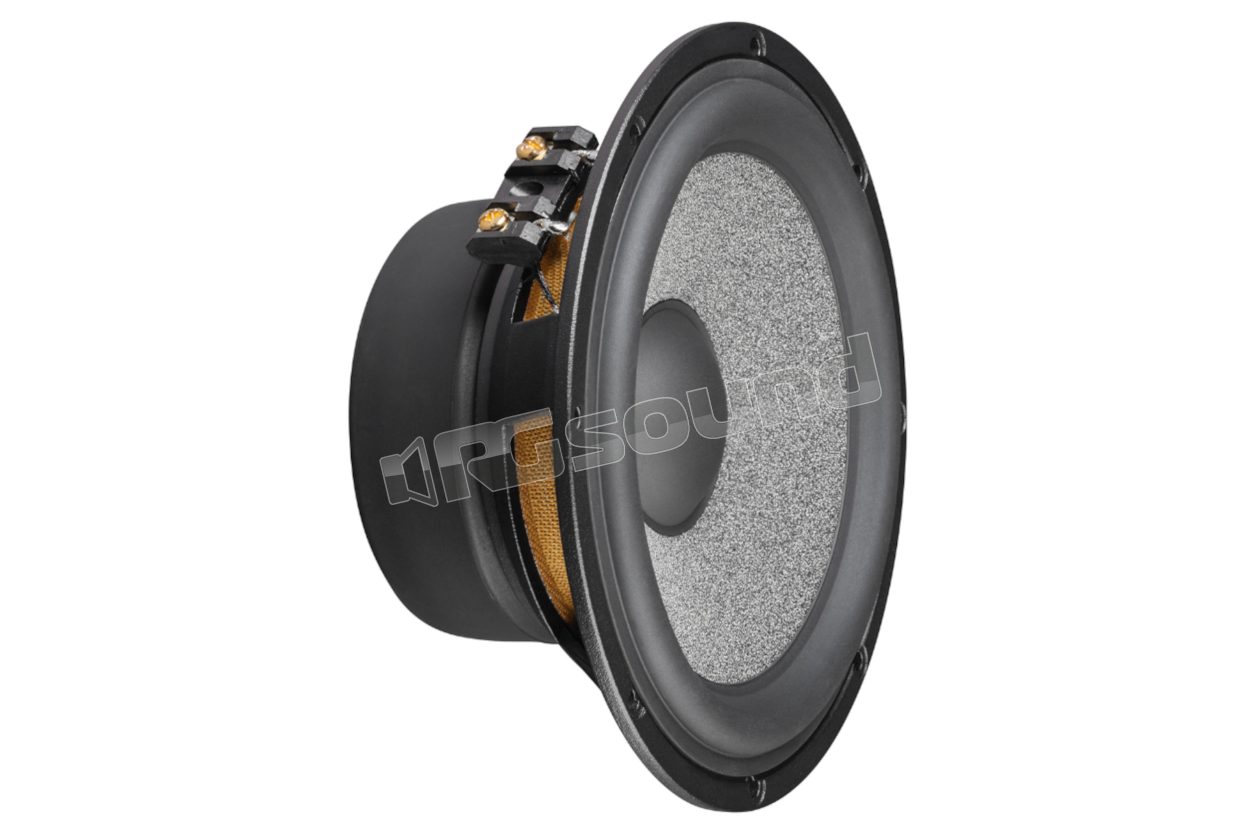

GL6 MK2 165 mm High-End Woofer, Graphic Series

Brax
Your price:
€ 589,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
40 - 4.000 Hertz
Sensitivity
92-88 dB
Impedance
3 Ohm

Brax GL6 MK2 High-End Woofer 165 mm Graphic Series

The BRAX GRAPHIC GL6 MK2 is a high-end 165 mm (6.5 inch) midwoofer. Developed according to BRAX philosophy, it focuses on pure and unaltered sound reproduction, through the use of specific technologies, selected materials and design oriented to acoustic precision. The product is designed and manufactured in Germany, in line with the brand's attention to construction quality and attention to detail.

The BRAX GRAPHIC GL6 MK2 uses a die-cast aluminum basket, designed to offer high structural stability. The magnetic system, made with precision, works in combination with a 37 mm voice coil and an impedance of 3 ohm. According to the manufacturer, this configuration allows to obtain Thiele/Small parameters suitable for precise transient response and contributes to high efficiency.

The rubber surround, characterized by a specific shape, is designed to allow high linear excursion of the diaphragm. The system also integrates a large magnet ventilation opening, studied to minimize compression effects. The 24-karat gold-plated screw terminals help minimize contact resistance, while the robust cover with BRAX logo provides protection to the magnet.

Each pair of BRAX GRAPHIC GL6 MK2 speakers is marked with an individual serial number and is registered in a support database. This procedure allows to identify each pair within the manufacturer's registration system. Manufacturing in Germany and packaging in a precious wooden box complete the product characteristics, in line with BRAX construction philosophy.


MicroSphere Technology

One of the main features of the BRAX GRAPHIC GL6 MK2 is the MicroSphere coating applied to the 165 mm diaphragm. This patented technology involves the insertion of hollow ceramic microspheres, with a diameter of just 75 µm, inside a polymer layer subsequently applied to the cone. The treatment is designed to ensure effective internal damping without negatively increasing the weight of the diaphragm.

The coating also contributes to increasing the rigidity of the hand-crafted cone, favoring dynamic reproduction and a more accentuated sound response. The goal is to achieve precise acoustic behavior, maintaining attention to the fidelity of the musical signal.


New dust cap

In the GL6 MK2 model, BRAX has introduced a new dust cap made of particularly soft polyurethane. This solution was developed to achieve a more balanced frequency response in the mid-range and promote tonal neutrality.

GL6 MK2 Features

  • Rubber surround with special shape for long linear excursion of the cone
  • Polyurethane dust cap for frequency response optimization in the mid-high area
  • Extremely rigid die-cast aluminum basket
  • 24-karat gold-plated screw terminals for minimum contact resistance
  • Powerful magnetic system worked with precision for high efficiency in combination with excellent magnetic flux linearity
  • The large magnetic pole ventilation hole significantly reduces compression effects
  • Robust magnet cover with BRAX lettering for perfect magnet protection

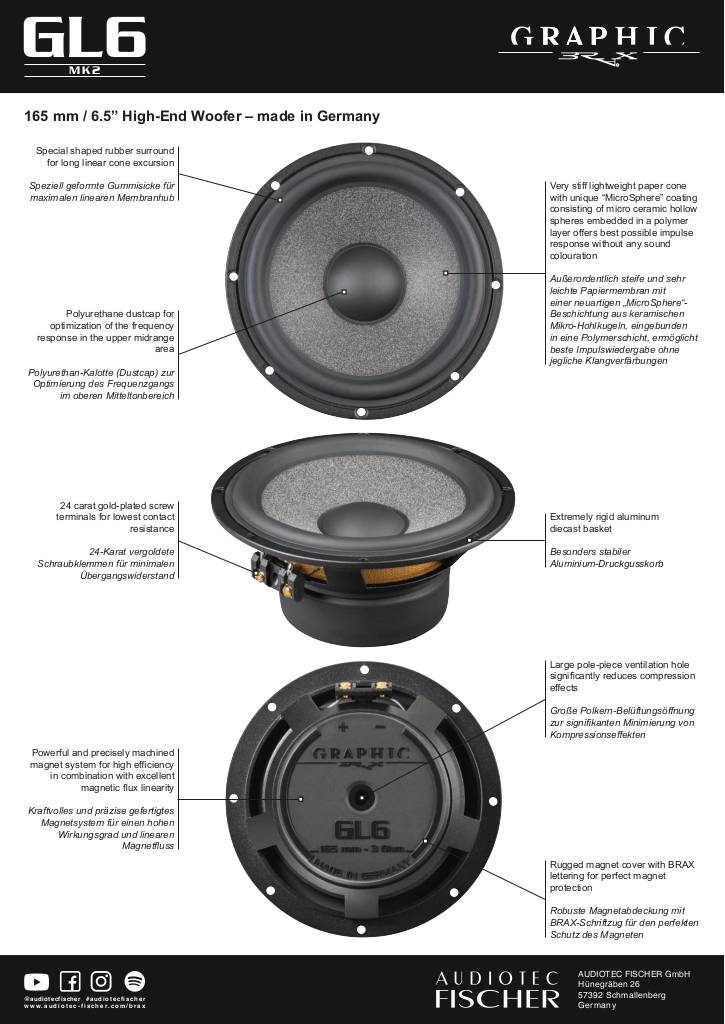

Scheda tecnica

n-20261016091217-db-brax-graphic-gl6-mk2-web.pdf

Brax GL6 MK2 Technical Specifications

  • Nominal RMS/max power P 100/150 Watt
  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Frequency response 40 Hz - 4,000 Hz
  • Resonance frequency Fs 52 Hz
  • Mechanical Q factor Qms 6.00
  • Electrical Q factor Qes 0.57
  • Total Q factor Qts 0.52
  • Compliance Cms 603 μm/N
  • Equivalent air volume Vas 16.3 L
  • Force factor B*I 5.2 Tm
  • Sensitivity SPL
    • 92 dB at 2.83 V / 1 m
    • 88 dB at 1 W/1 m
  • Cone area Sd 139 cm²
  • Moving mass Mms 15.3 g
  • Cone material: paper cone with "MicroSphere" coating consisting of hollow ceramic microspheres incorporated in a polymer layer
  • Mechanical resistance Rms 0.84 kg/s
  • Voice coil diameter ø 37 mm
  • Voice coil height 14 mm
  • Maximum linear excursion Xmax +/- 4.0 mm
  • Outer diameter ø 166 mm/6.5"
  • Installation diameter ø 142 mm/5.6"
  • Installation depth 68.2 mm/2.7"

Recommended cabinet volumes

  • Sealed cabinet
    • Net volume 8 L
    • Lower limit frequency (-3 dB) 69 Hz
  • Ported enclosure
    • Net volume 15 L
    • Port diameter ø 60 mm/2.4"
    • Port area 28 cm²
    • Port length 19 cm/7.5"
    • Port resonance frequency Fb 45 Hz
    • Lower limit frequency (-3 dB) 48 Hz
