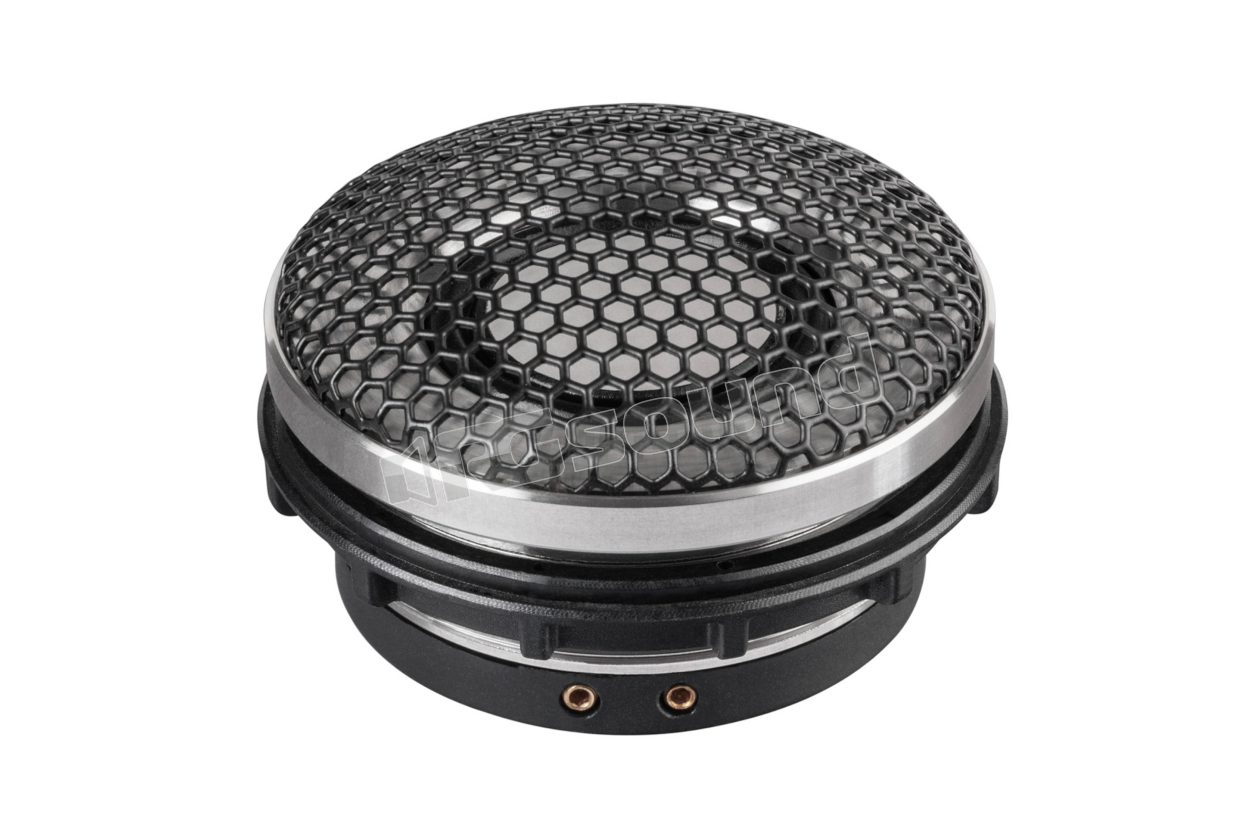

GL 1 MK2 Graphic high-end 25 mm tweeter

Brax
Your price:
€ 589,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
MAX Power
150 Watt
RMS Power
100 Watt
Frequency Response
2000 - 25000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Outer Diameter
60 mm
Installation Depth
21,5 mm
Tweeter Material
Cupola rigida in alluminio ceramico

Brax GL 1 MK2 Graphic tweeter high-end 25 mm


The BRAX GRAPHIC GL1 MK2 25 mm / 1" high-end tweeter is equipped with an innovative ceramic aluminum dome. Its sophisticated material requires a complex production process in which a plasma flame fuses ceramic powder onto the surface of an aluminum substrate. The result is a tweeter dome that combines exceptional stability with low moving mass and high internal damping, perfectly designed for brilliant high-frequency reproduction free from compression. The integrated coupling volume, with Merino wool damping, reduces the resonance frequency and thus allows lower crossover frequencies.


The pure and aesthetic design, made of solid stainless steel, not only looks noble but also ensures perfect heat dissipation. The mounting ring with fine threading ensures perfect integration in the car interior, while the 12 times vented neodymium magnet is optimized to achieve maximum linear magnetic flux. Finally, the recessed terminal plated with 24-karat gold reduces contact resistance to almost zero and the rigid grille perfectly protects the sensitive diaphragm.


Like all BRAX speakers, each pair of tweeters has its own serial number, properly registered in our database. Needless to say, such valuable products will be delivered in a noble wooden box that emphasizes the approach and philosophy of the BRAX brand.

GL 1 MK2 Features

  • Rigid ceramic aluminum dome for extremely precise and dynamic high-frequency response
  • Stainless steel housing machined with CNC for maximum heat dissipation
  • Integrated coupling volume damped with merino wool for low resonance frequency
  • 12 x vented neodymium magnet, precision machined, for maximum magnetic flux linearity
  • Integrated terminals plated with 24-karat gold for maximum conductivity
  • Rear mounting ring and fine threading for hidden fastening
  • The sturdy protective grille is included in the delivery

Scheda Tecnica

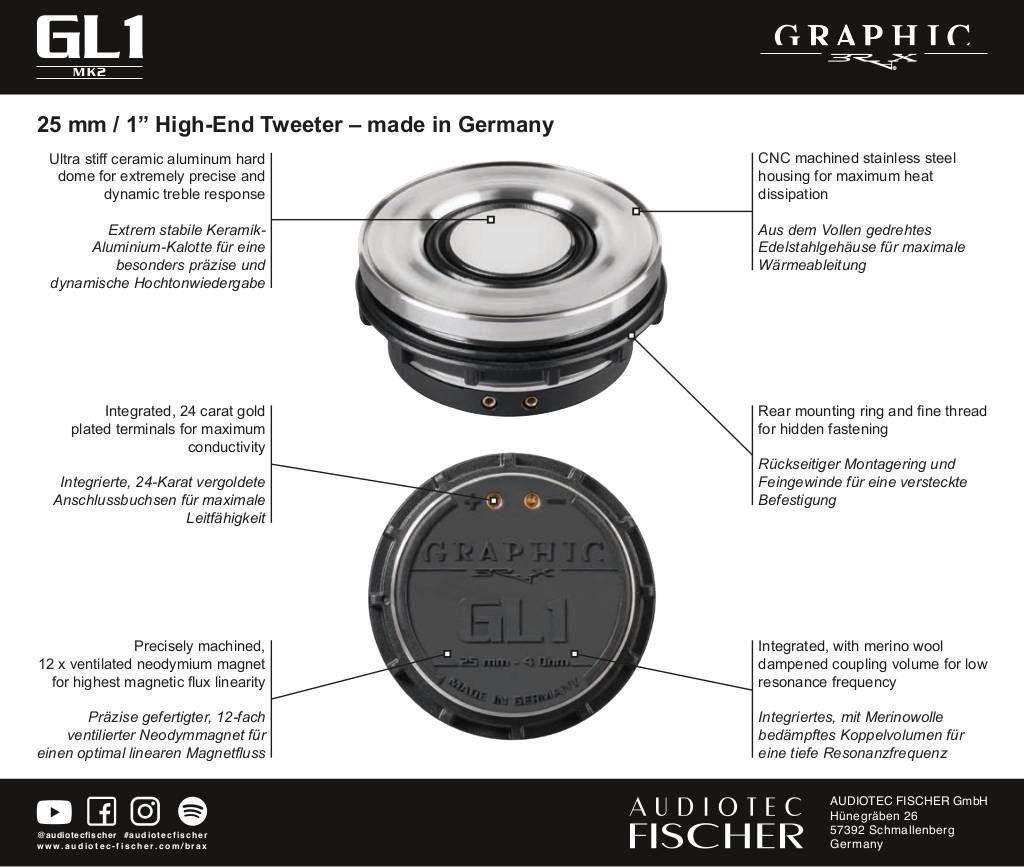

n-20240530110943-db-brax-graphic-gl1-mk2-10-03-2023.pdf

2 x BRAX GRAPHIC GL1 MK2 high-end tweeter 2 x Mounting ring 2 x grille 1 x Allen wrench 1 x Technical data sheet

Brax GL 1 MK2 Technical Specifications

  • Power handling RMS / max. P 100 / 150 Watt (high-pass > 3.000 Hz at 12 dB/Oct.)
  • Impedance Z 4 Ω
  • DC resistance Re 3.4 Ω
  • Frequency response 2.000 Hz - 25.000 Hz
  • Resonance frequency Fs 900 Hz
  • Sensitivity SPL
    • 93 dB @ 2.83V / 1m
    • 90 dB at 1W / 1m
  • Voice coil diameter ø 25 mm / 1"
  • Cone surface Sd 4.9 cm²
  • Moving mass Mms 0.36 g
  • Cone material Rigid ceramic aluminum dome
  • Outer diameter ø 60 mm / 2.4
  • Installation diameter ø 52 mm
  • Installation depth 21.5 mm
