GEN-XX12.4DHE 12” high-excursion dual-magnet subwoofer

DS18
Your price:
€ 150,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
Other sizes
MAX Power
1200 Watt
RMS Power
600 Watt
Frequency Response
20 - 1,5 KHz Hertz
Sensitivity
86 dB
Impedance
4+4 Ohm

DS18 GEN-XX12.4DHE 12" Subwoofer with High Excursion and Dual Magnet

Built with the finest materials, the GEN-XX12.4DHE is an example of professional quality and unmatched durability. The black aluminum voice coil, paper cone and foam surround work harmoniously to deliver exceptional performance and withstand the test of time.

The glossy red steel basket adds a touch of elegance to your vehicle's interior. Equipped with a remarkable nominal power of 600W RMS and 1200W maximum, the GEN-XX12.4DHE does not require huge amounts of power to deliver stunning performance. The frequency response of the GEN-XX12.4DHE from 20Hz to 1.5KHz ensures a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.

The long 2 inch voice coil and dual magnet have been specifically designed to ensure that every note is reproduced with exceptional clarity and precision. With a low FS of 30.5 Hz, the GEN-XX12.4DHE effortlessly reaches the subsonic range, giving you the ability to experience those terrifying frequencies without any problem, if your system is properly tuned. Get ready to redefine what you thought was possible in car audio: the GEN-XX12.4DHE is here to transform your dreams into reality.

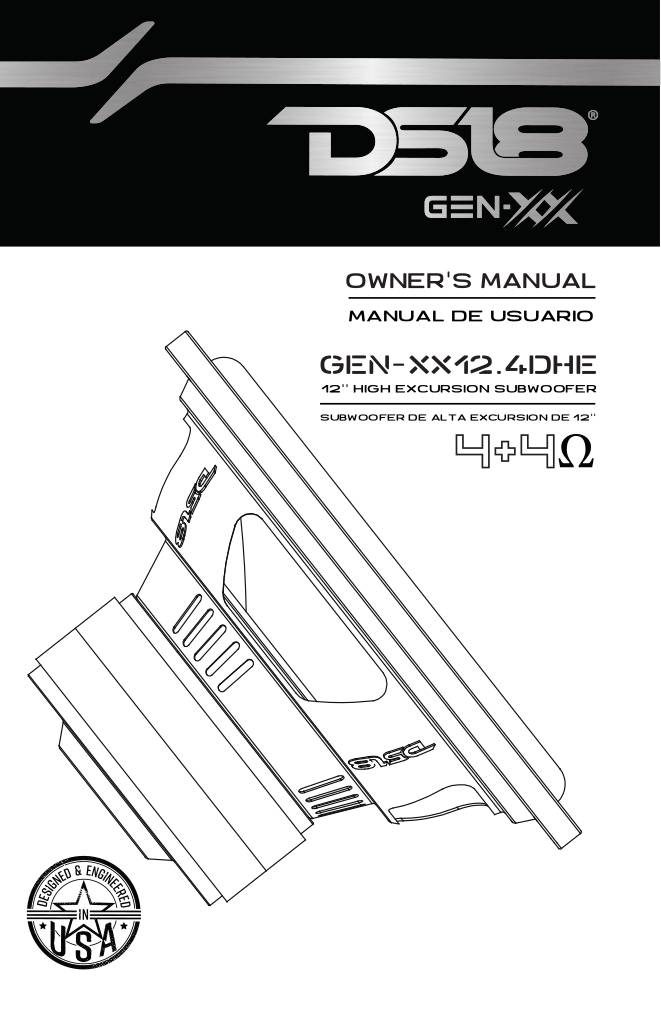

Scheda Tecnica

n-20241017103854-gen-xx12-4dhe-scheda-tecnica.pdf

DS18 GEN-XX12.4DHE Technical Specifications

  • Nominal diameter 12
  • Nominal impedance 4+4 Ohm
  • Handled power RMS 600W
  • Maximum handleable power 1200W
  • Sensitivity (1w/1m) 86.7 dB
  • Frequency response 20Hz - 1.5Khz
  • Recommended high-pass crossover 80Hz
  • Voice coil diameter 2" / 50.8 mm
  • Voice coil material Black aluminum
  • Winding material SV
  • Cone material Paper
  • Dust cap material PPI
  • Surround material Foam
  • Basket material Steel
  • Basket color/finish Glossy red
  • Magnet material Ferrite
  • Magnet weight 136 oz
  • Displacement volume 1.69L
  • Overall diameter 12.44" / 316 mm
  • Overall depth 7.6" / 193 mm
  • Baffle cutout for front mounting 10.9" / 277 mm
  • Mounting depth 6.5" / 165 mm
  • Motor diameter 6.14" / 156 mm
  • Single unit gross weight (lb) 19.5
  • Dimensions L x W x H (inches) 13.5 x 13.5 x 9 Quantity of units in main carton 2
  • Main carton gross weight (lb) 41.5
  • M/C dimensions L x W x H (inches) 14.25 x 14.25 x 19
€ 150,00 Price incl. VAT
