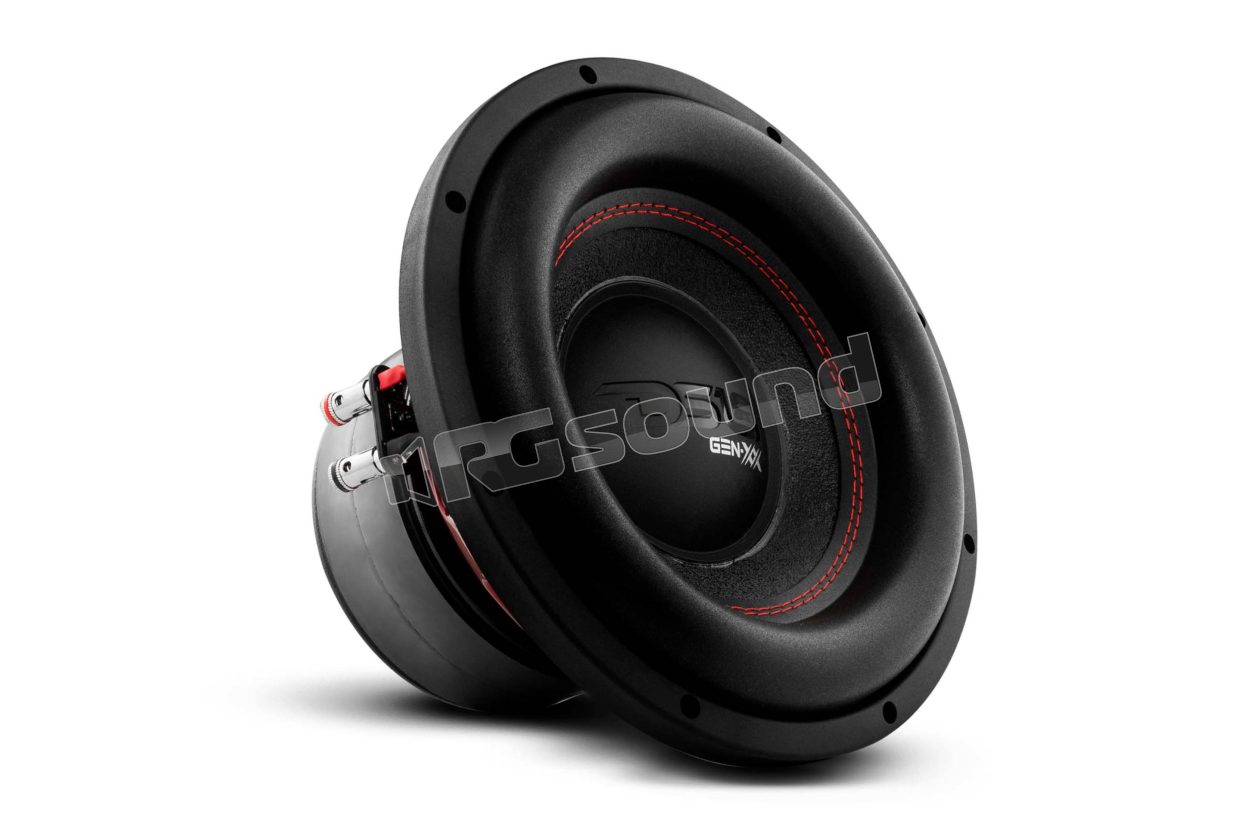

GEN-XX10.4DHE 10” high-excursion dual-magnet subwoofer

DS18
Your price:
€ 140,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
100 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
20 - 1.1 KHz Hertz
Sensitivity
84.6 dB
Impedance
4+4 Ohm

DS18 GEN-XX10.4DHE 10" High Excursion Subwoofer with Dual Magnet

The GEN-XX10.4DHE is equipped with a black aluminum voice coil, paper cone and foam surround that work harmoniously to deliver exceptional performance and stand the test of time. The glossy red steel basket adds a touch of elegance to your car's interior. With a remarkable rated power of 500W RMS and 1000W maximum, the GEN-XX10.4DHE doesn't require huge amounts of power to deliver stunning performance.

You'll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX10.4DHE's frequency response, from 20Hz to 1.1KHz, ensures a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.

The long 2 inch voice coil and dual magnet have been specifically designed to ensure that every note is reproduced with exceptional clarity and precision. With a low FS of 37.6 Hz, the GEN-XX10.4DHE effortlessly reaches the subsonic range, giving you the ability to experience those bone-chilling frequencies without any problem, if your system is properly tuned. Get ready to redefine what you thought was possible in car audio: the GEN-XX10.4DHE is here to turn your dreams into reality.

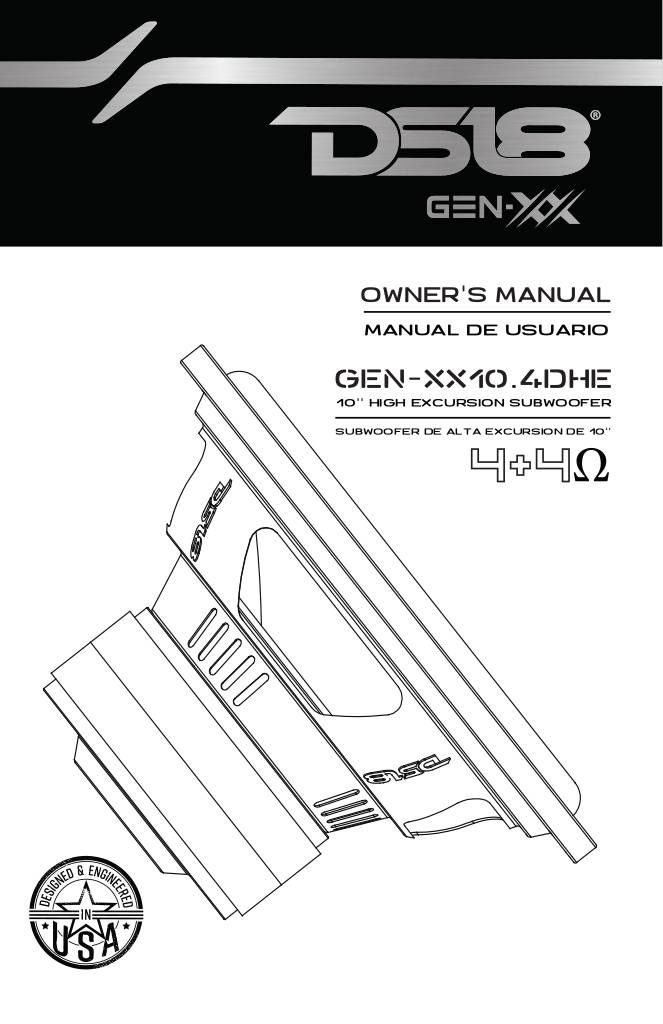

Scheda tecnica

n-20241017102755-gen-xx10-4dhe-scheda-tecnica.pdf

DS18 GEN-XX10.4DHE Technical Specifications

  • Nominal diameter 10
  • Nominal impedance 4+4 Ohm
  • RMS power handling 500W
  • Maximum power output 1000W
  • Sensitivity (1w/1m) 84.6 dB
  • Frequency response 20Hz - 1.1 Khz
  • Recommended high pass crossover 90Hz
  • Voice coil diameter 2" / 50.8 mm
  • Voice coil material Black aluminum
  • Winding material SV
  • Cone material Paper
  • Dust cap material PPI
  • Surround material Foam
  • Basket material Steel basket
  • Basket color/finish Glossy red
  • Magnet material Ferrite
  • Magnet weight 136 oz
  • Displacement volume 1.82L
  • Overall diameter 10.28" / 261 mm
  • Overall depth 7.21" / 183 mm
  • Baffle cutout for front mounting 9.14" / 232 mm
  • Mounting depth 6.14" / 156 mm
  • Motor diameter 6.14" / 156 mm
  • Single unit gross weight (lb) 19
  • Dimensions L x W x H (inches) 11.5 x 11.5 x 8.75
  • Quantity of units in master carton 2
  • Master carton gross weight (lb) 39
  • M/C Dimensions L x W x H (inches) 12 x 12 x 18.5
€ 140,00 Price incl. VAT
