GAMMA GS-12 SLIM 30 cm slim subwoofer

Gladen
Your price:
€ 239,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
650 Watt
RMS Power
500 Watt
Sensitivity
89 dB
Impedance
2 + 2 Ohm
Installation Depth
100 mm
Woofer Material
Cellulosa trattata

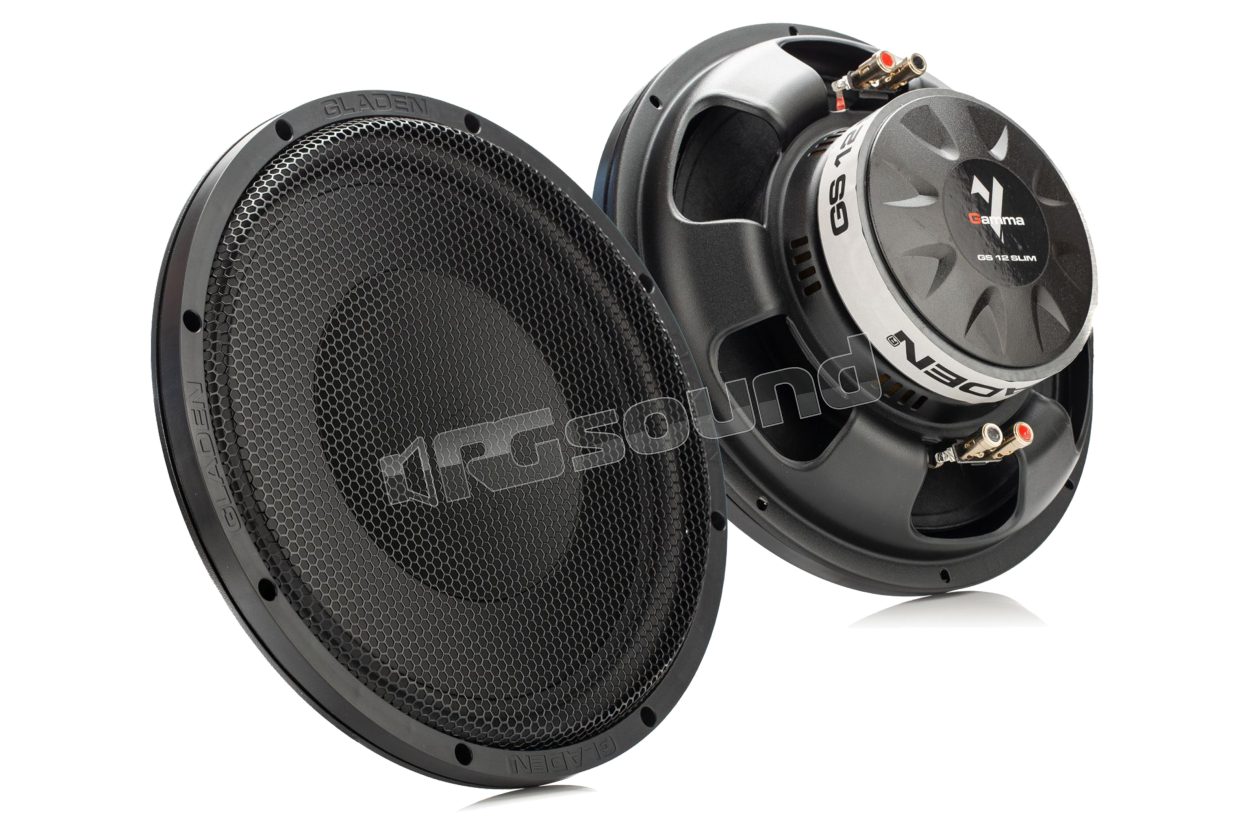

Gladen GAMMA GS-12 SLIM Subwoofer SLIM 300 mm, grille included

The new GAMMA subwoofer range offers exceptional sound, even when space is limited. The individual speakers have been specially designed for compact enclosures, offering maximum design flexibility. The high efficiency delivers powerful and precise bass, even when used with amplifiers of limited power. Perfect integration!

GAMMA GS-12 SLIM Features

  • Steel basket
  • Cardboard coated cone
  • Protective grille and mounting ring included
  • Recommended enclosure 45 liters vented or sealed 25 liters

Gladen GAMMA GS-12 SLIM Technical Specifications

  • Subwoofer 30 cm / 12"
  • 500 / 650 W
  • Impedance 2x 2 Ω
  • Voice coil 2.5"
  • Steel basket
  • Cardboard coated
  • Protective grille and mounting ring included for 45 liters vented or 25 liters sealed
  • Recommended volume (sealed): 25-30 liters
  • DC resistance (Rdc): 3.56 Ω (series)
  • Nominal impedance (ZN): 2x 2 Ω
  • Resonance frequency (Fs): 26.5 Hz
  • Voice coil diameter: 2.5"
  • Voice coil height: 30 mm
  • Mechanical Q factor (Qms): 5.64
  • Electrical Q factor (Qes): 0.49
  • Total Q factor (Qts): 0.45
  • Moving mass (md): 183.6 g
  • Effective piston area (sm): 551.5 cm²
  • Mechanical resistance (Rms): 5.42 kg/s
  • Compliance (Cms): 0.197
  • Force factor (BL): 11.17 Tm
  • Equivalent air volume (Vas): 61.5 dm³
  • SPL 2.83 V / 1 m: 89.02 dB
  • Outer diameter: 330 mm
  • Installation diameter: 305 mm
  • Installation depth: 100 mm
€ 239,00 Price incl. VAT
