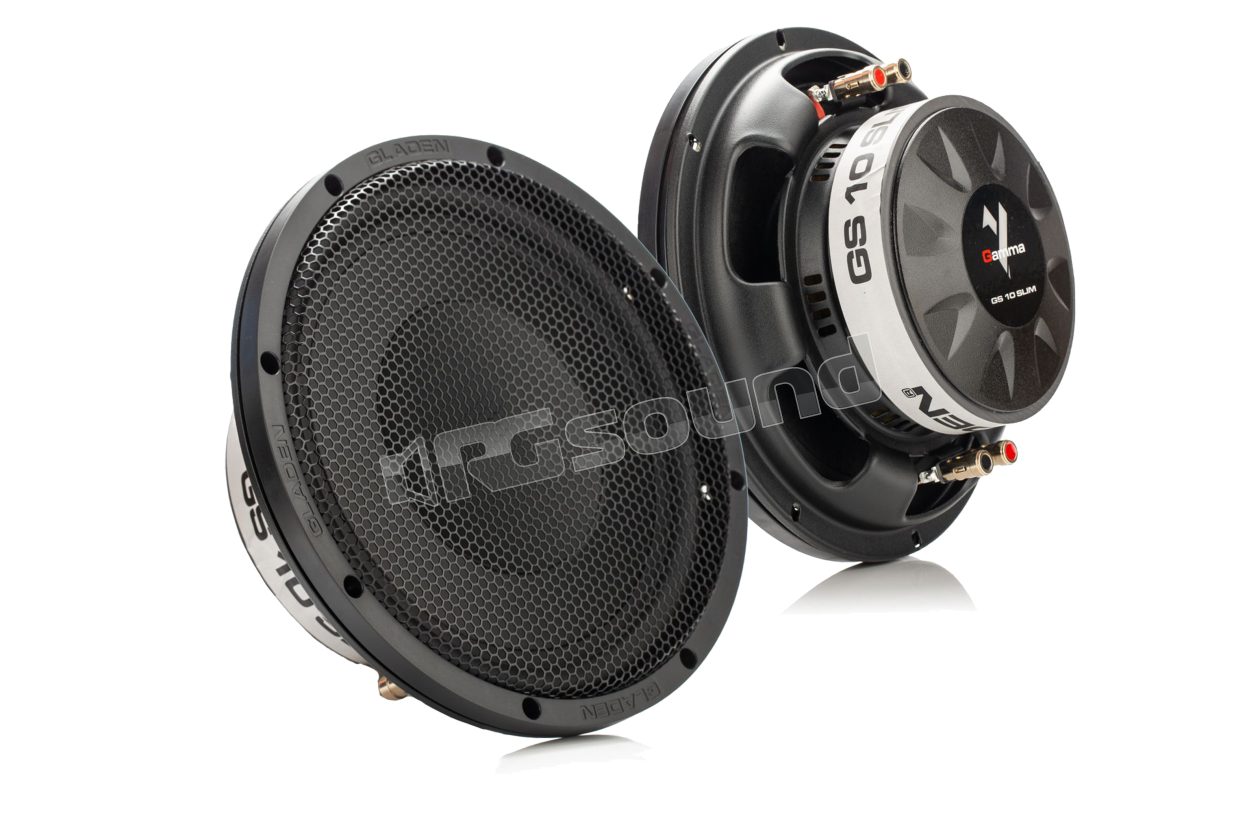

GAMMA GS-10 SLIM 25 cm slim subwoofer

Gladen
Your price:
€ 189,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
450 Watt
RMS Power
300 Watt
Sensitivity
87,4 dB
Impedance
2 + 2 Ohm
Installation Depth
89 mm
Woofer Material
Cellulosa trattata

Gladen GAMMA GS-10 SLIM subwoofer SLIM 250 mm, grille included

The new GAMMA subwoofer range offers exceptional sound, even when space is limited. Individual speakers have been specifically designed for compact enclosures, offering maximum design flexibility. High efficiency provides powerful and precise bass, even when used with limited power amplifiers. Perfect integration!

GAMMA GS-10 SLIM Features

  • Steel basket
  • Cardboard coated cone
  • Protective grille and mounting ring included
  • Recommended enclosure 35 liters vented or sealed 15 liters

Gladen GAMMA GS-10 SLIM Technical Specifications

  • 25 cm / 10" subwoofer
  • 300 / 450 W
  • Impedance 2x 2 Ω
  • 2.5" voice coil
  • Steel basket
  • Cardboard coated
  • Protective grille and mounting ring included for 35 liters vented or 15 liters sealed
  • Recommended volume (sealed): 15 liters
  • DC resistance (Rdc): 3.3 Ω (serial)
  • Nominal impedance (ZN): 2x 2 Ω
  • Resonance frequency (Fs): 35.6 Hz
  • Voice coil diameter: 2.5"
  • Voice coil height: 30 mm
  • Mechanical Q factor (Qms): 8.1
  • Electrical Q factor (Qes): 0.53
  • Total Q factor (Qts): 0.51
  • Moving mass (md): 155.9 g
  • Effective piston area (sm): 352 cm²
  • Mechanical resistance (Rms): 4.31 kg/s
  • Compliance (Cms): 0.128
  • Force factor (BL): 11.47 Tm
  • Equivalent air volume (Vas): 17.6 dm³
  • SPL 2.83 V / 1 m: 87.4 dB
  • Outer diameter: 260 mm
  • Installation diameter: 236 mm
  • Installation depth: 89 mm
€ 189,00 Price incl. VAT
