FXI6.38MR

Ciare

Discontinued

Your price:
€ 55,30
Price per single item (VAT included)
Type
Midrange
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
130 Watt
Frequency Response
140 - 4.500 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Installation Depth
73 mm
Voice Coil Diameter
38 mm

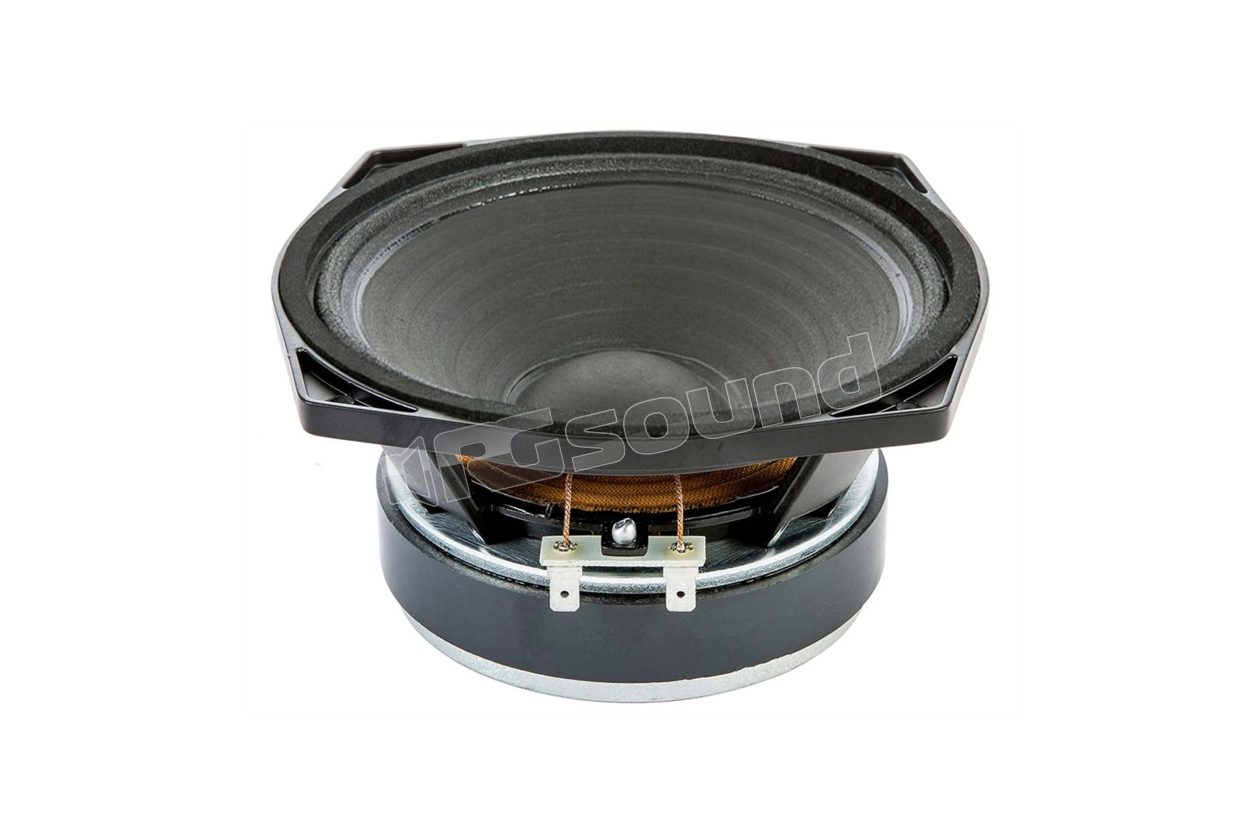

Ciare FXI6.38MR 165mm midrange at 8 Ohm, with a sensitivity of 96 dB. Suitable for quality applications.

Power (W) 300
AES Rated Power (W) 130
Nominal Diameter ('' / mm) 6.5 / 165
Nominal Impedance (Ohm) 8
Voice Coil Diameter (mm) 38
Sensitivity 1W / 1m (dB) 96

Aluminum basket
Ceramic magnet type
Treated paper cone material
Nomex suspension material
Fabric spider material
Ex kapton material
Copper winding material
Faston connector type
Exponential cone shape
Gap height 6 mm

Ciare FXI6.38MR technical specifications

Aluminum basket
Ceramic magnet type
Treated paper cone material
Nomex suspension material
Fabric spider material
Ex kapton material
Copper winding material
Faston connector type
Exponential cone shape
Gap height 6 mm

High quality midrange applications
Closed box loading recommended
Loading volume 2.5 l
Tuning frequency
Frequency range 150 - 4500 Hz
Size and weight
Overall diameter 162 mm
Total depth 73 mm
Flange thickness 9 mm
Front baffle cutout mounting diameter 145 mm
No. of mounting holes 4
Mounting hole diameter (mm) 5 mm
Bolt circle diameter 170 mm
Gross weight 2.3 kg

Re 4.8 ohm

Fs 155 Hz

Qms 2.9

Qes 0.62

Qts 0.51

Mms 13 g

Cms

D 137 mm

Vas 2.5 l

BxL 9.9 Tm

Linear Mathematical Xmax 3 mm

n 1.5

Le (1kHz) 1.1 mH

Discontinued
