FXI2.15 2" full-range driver

Ciare

Discontinued

Your price:
€ 35,70
Price per pair (VAT included)
Type
Midrange
Speaker Size
50 mm
MAX Power
30 Watt
RMS Power
15 Watt
Frequency Response
200 - 20.000 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
40 mm
Midrange Cone Material
Cellulosa trattata

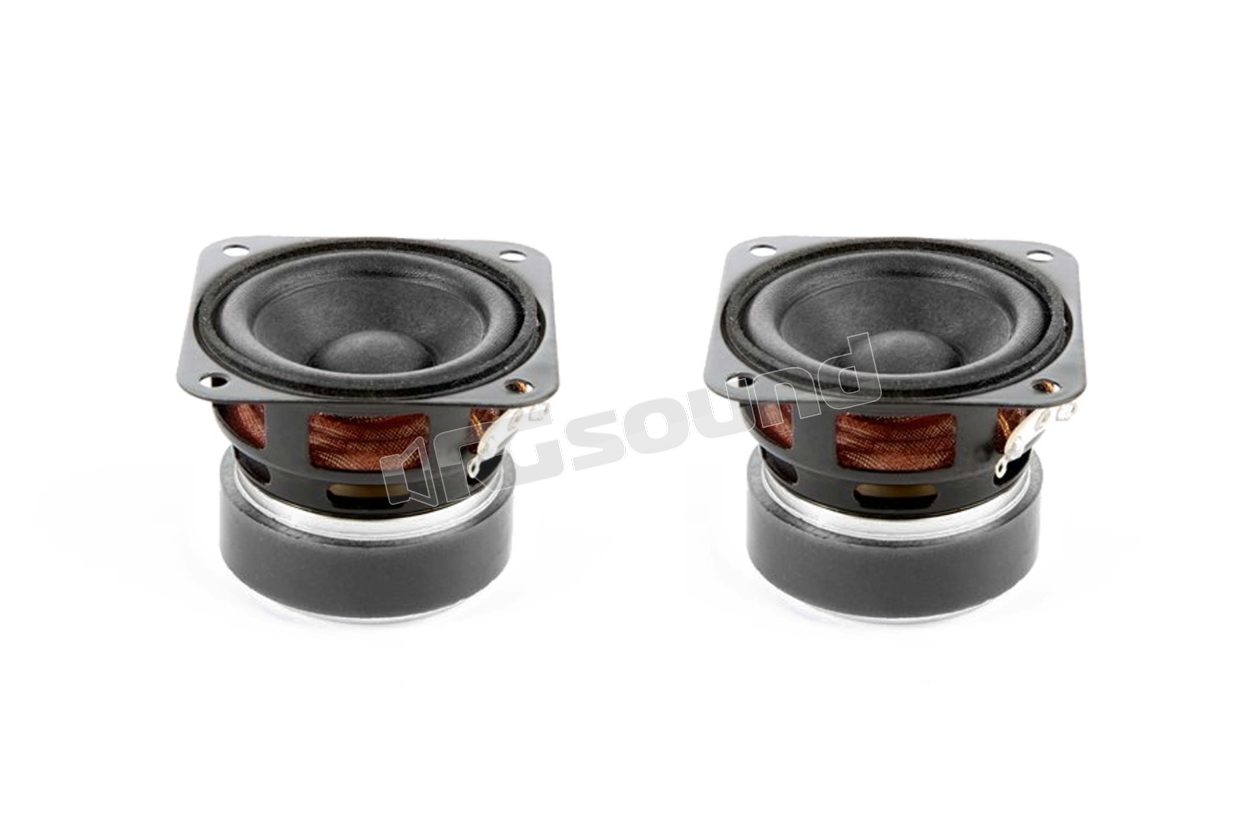

Ciare FXI2.15 pair of 2" full-range transducers with 15 mm (0.6") CCAW voice coil, cone protected against weather for outdoor use and specifically designed for ultra-compact enclosures.

Iron basket
Ceramic magnet
Treated paper cone
Fabric suspension
Fabric spider
Kapton former
Copper coil
Faston connector type
Exponential shaped cone
Gap height 3 mm

Musical power (W) 30
Nominal power AES (W) 15
Nominal diameter ('' / mm) 2/50
Nominal impedance (Ohm) 4
Voice coil diameter (mm): 15
Sensitivity 1W / 1m (dB) 87

Ciare FXI2.15technical specifications

Frequency range 200 - 20000 Hz
Size and weight
Overall diameter 54.3 mm
Total depth 40 mm
Flange thickness 0.6 mm
Front baffle cutout mounted diameter 4 mm
Number of mounting holes 4
Mounting holes diameter (mm) 49 mm
Bolt circle diameter 30.2 mm

Recommended installation in sealed enclosure with loading volume 0.4 liters

Discontinued
