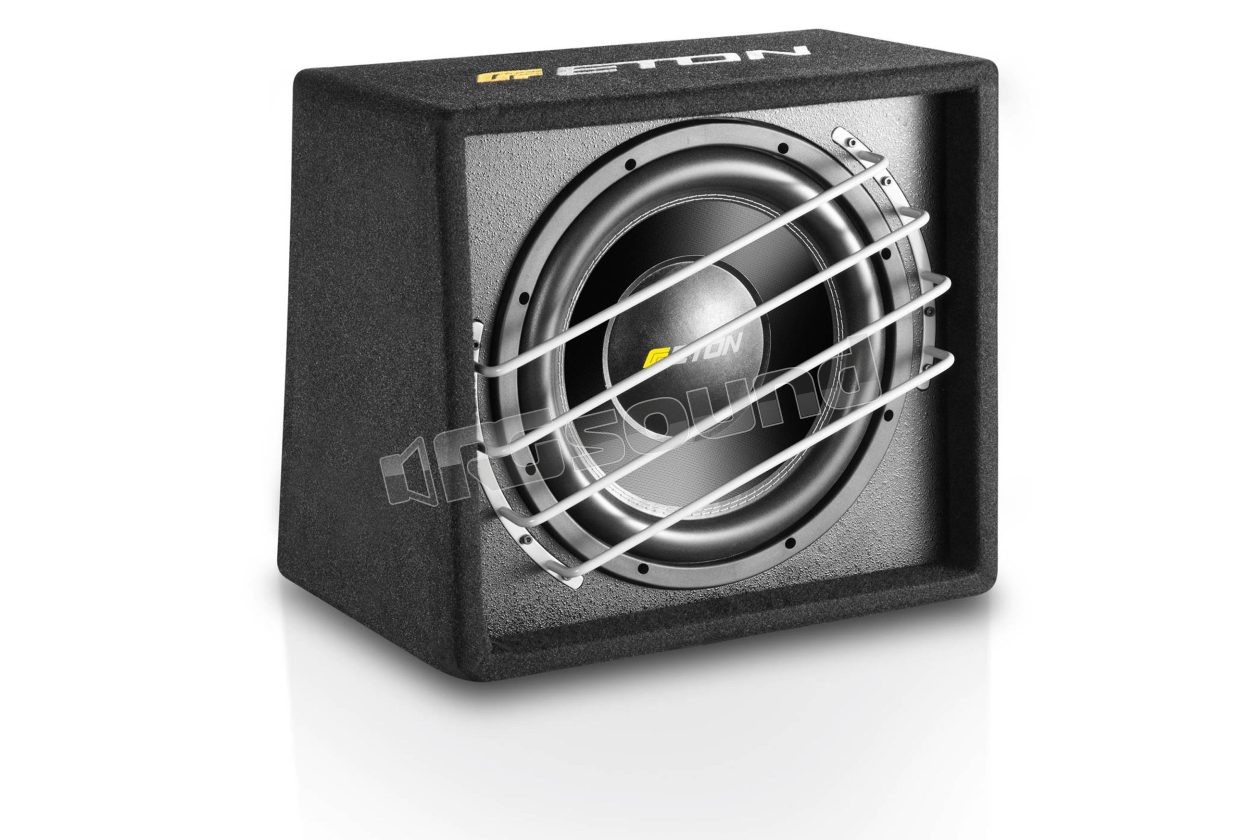

Force 10-600G 25 cm subwoofer in sealed enclosure

ETON

Discontinued

Your price:
€ 139,00
Price per single item (VAT included)
Type
Subwoofer in enclosure
Speaker Size
250 mm
MAX Power
400 Watt
RMS Power
200 Watt
Impedance
4 + 4 Ohm
Enclosure Size
385 x 324 x 244/317 mm
Enclosure Type
Sealed Enclosure

Eton Force 10-600G 250mm subwoofer with dual voice coil in closed enclosure with carpet covering, with brackets protecting the speaker. Impedance 2x4 Ohm, enclosure dimensions 385(W) x 324(H) x 317(D) mm.

Technical features Force 10-600G subwoofer:

Nominal power (RMS power): 450 W

Impedance: 4 Ohm

Subwoofer diameter 250 mm

DC resistance: 3.2 Ohm

Resonance frequency: 33.258 Hz

Suspension compliance: 0.186 millimeters / N

Mechanical properties (SGQ): 4.442

Electrical quality (Qes): 0.611

Overall quality (Qts): 0.537

Moved mass (including moved air mass): 93.393 g

Voice coil diameter: 50.8 mm

Voice coil inductance: 3.843 mH

Force factor: 11.682 Tm

Ring magnet diameter: 134 mm

Magnet height: 40 mm

Weight: 5.2 kg

Average sound pressure level 1W / 1m: 86.7 dB / SPL

Equivalent volume: 28.772 dm3

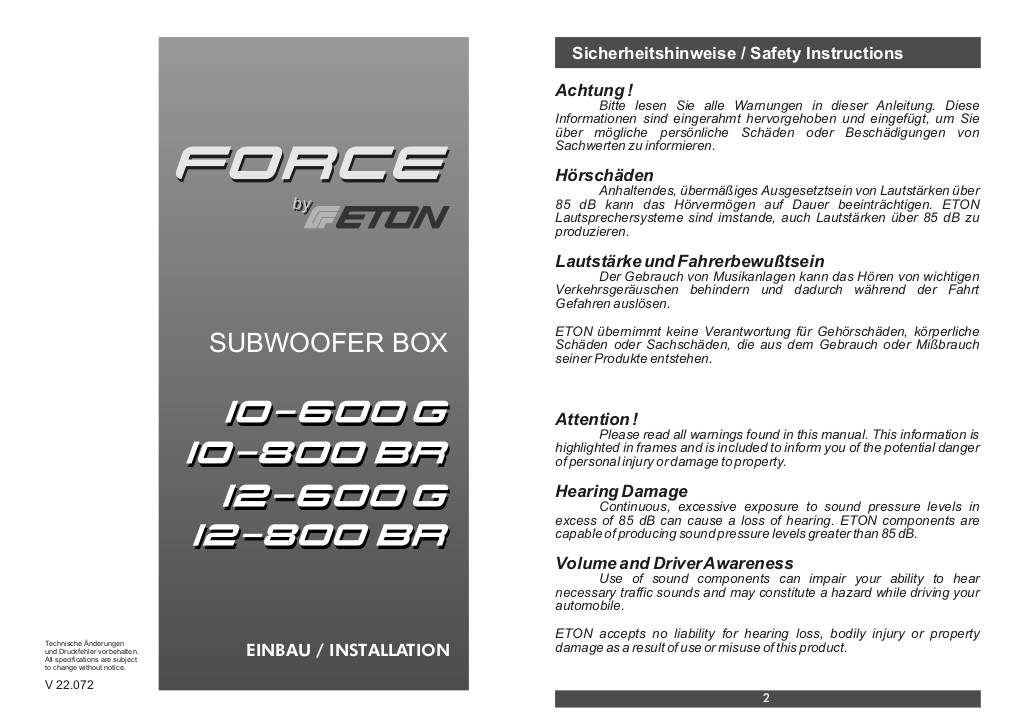

Manuale utente

20160513130609-eton-manuale-force-10-12.pdf
Discontinued
