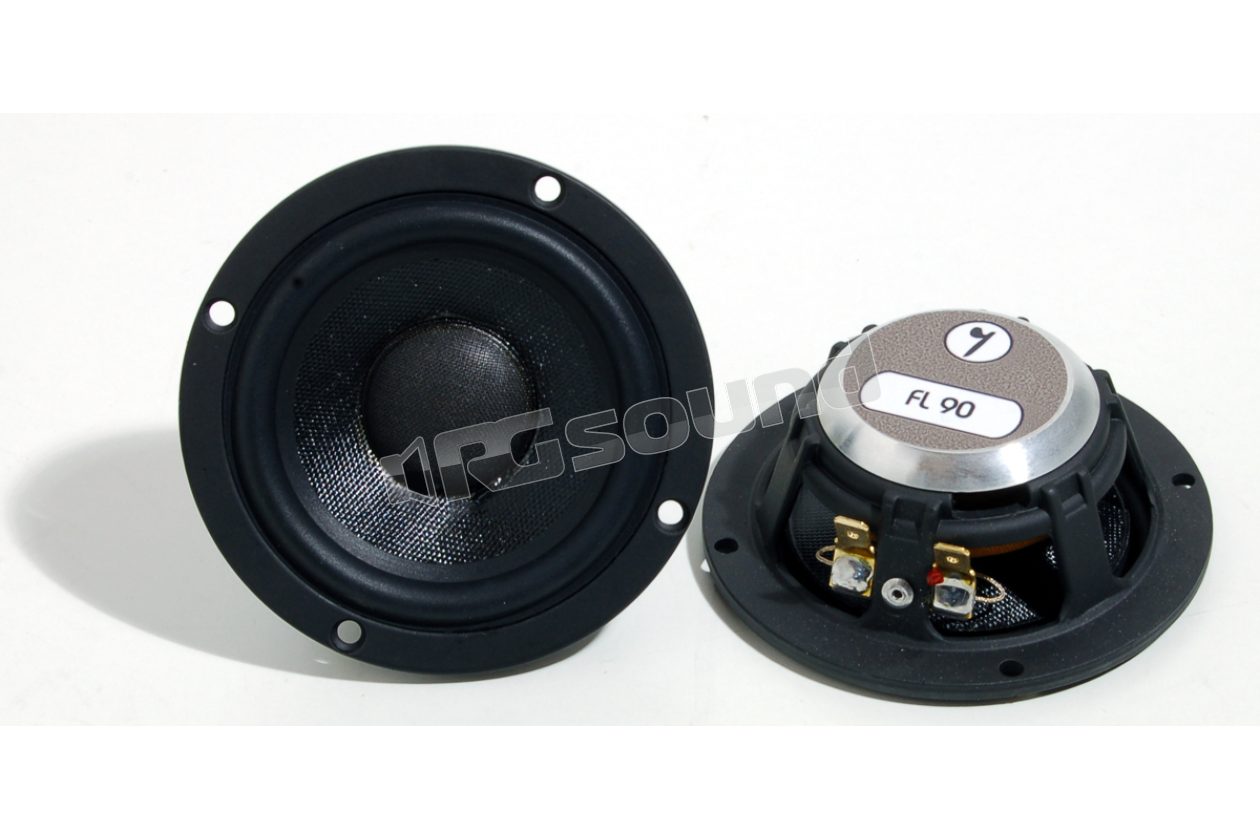

FL90 ultra-slim 93mm midrange

Silence Lab

Discontinued

Your price:
€ 226,90
Price per pair (VAT included)
Type
Midrange
Speaker Size
100 mm
MAX Power
140 Watt
RMS Power
70 Watt
Sensitivity
89 dB
Impedance
3,8 Ohm
Midrange Cone Material
Cellulosa trattata

FL 90 is a 93mm ultra-flat midrange.
The component is designed to have a very extended response, up to 8000 Hz.
The rather low Fs allows use in pneumatic suspension from 250 Hz with complete safety.


Treated cellulose cone, magnet with 2 Neodymium pads and aluminum basket are the notable construction features that, combined with the reduced depth and excellent linearity, make this component a reference in its price range.

Performance

Re ohm 3.8
Fs Hz 120
Qm 2.64
Qe 1.38
Qt 0.90
Vas L 0.96
Xmax +/- --
D mm 68
Mms g 3.37
Cms mm/N 0.52
B*l Wb/m 2.65
Le mH 0.26
Sens dB 89
Pn Watt 70
Bob mm 25
Kg --

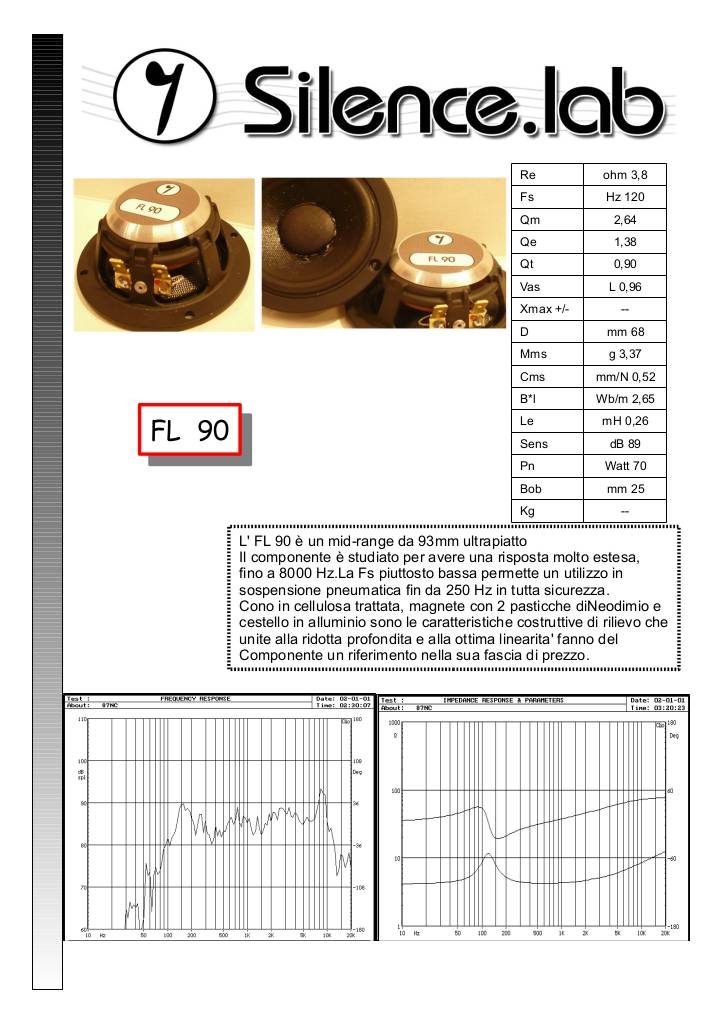

FL90 scheda

20120118180100-data-fl90.pdf
Discontinued
