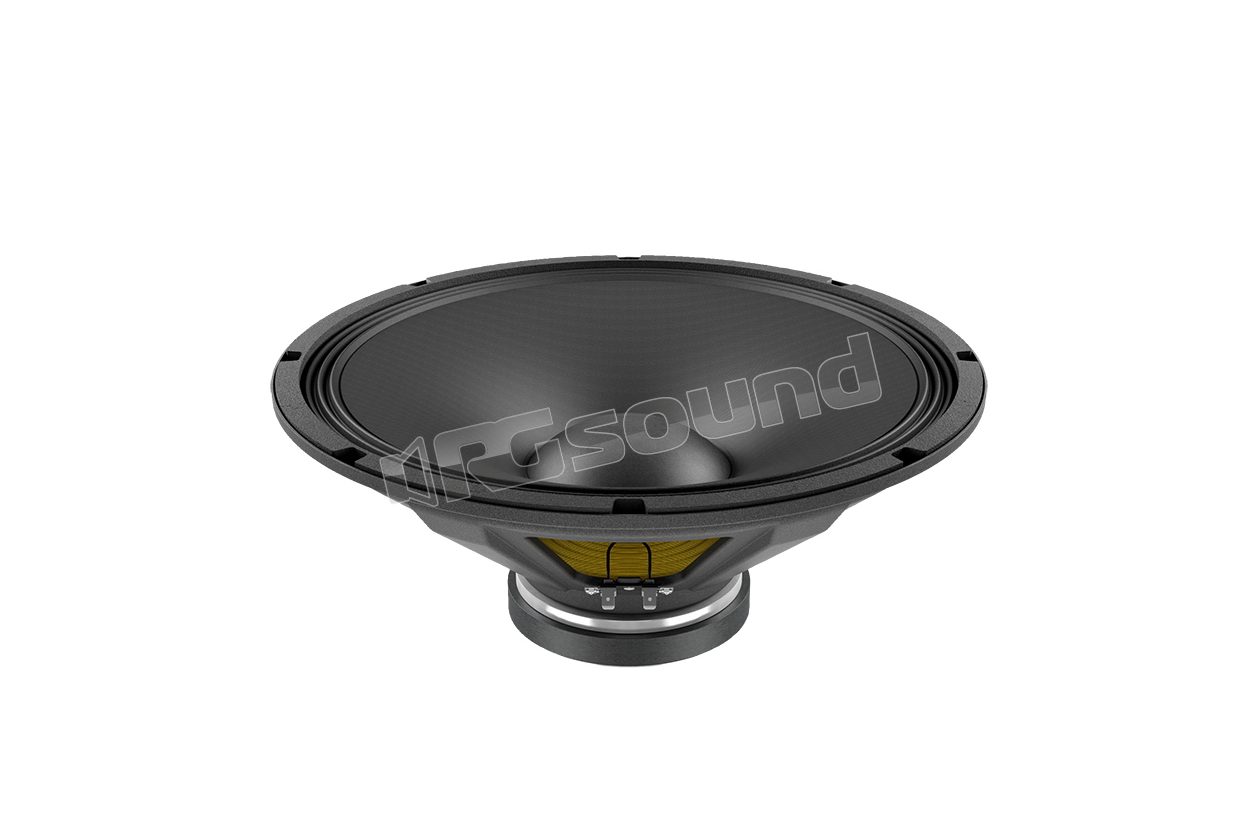

FBASS15-20 15"/380mm Bass Speaker

LaVoce
Your price:
€ 92,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce FBASS15-20-8 Bass Speaker 15"/380mm

Main features of the FBASS15-20-8 speaker

  • 2 inch copper voice coil
  • Sensitivity 98 db/spl
  • Program power handling 400 watts
  • Triple surround roll
  • Overall balanced and rich tone
  • Solid bass and precise midrange-treble

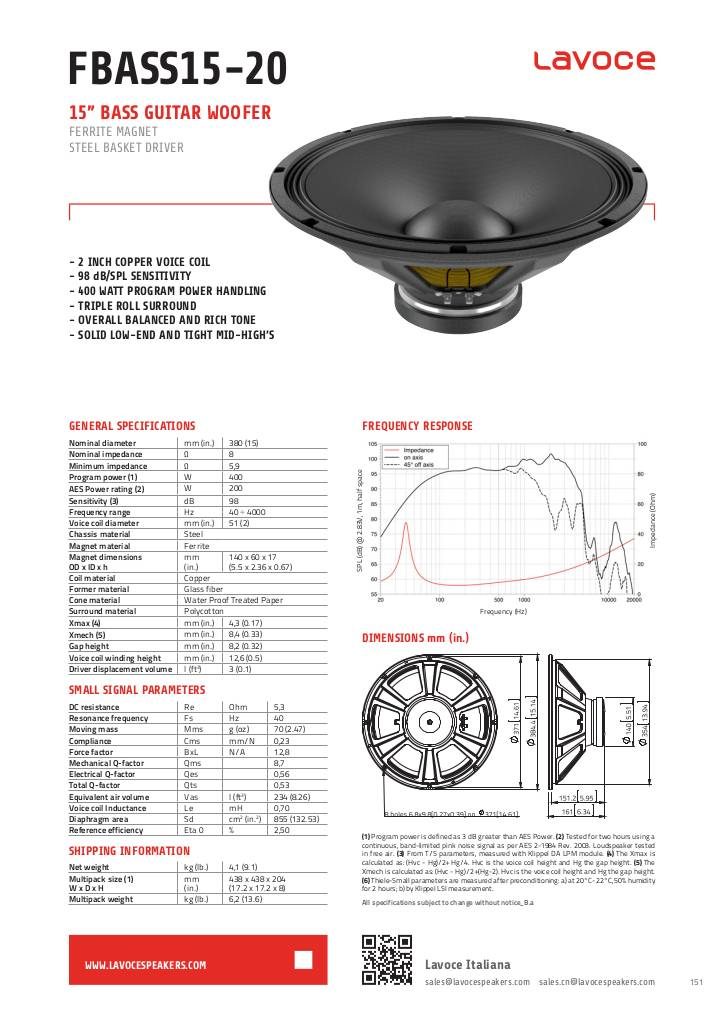

scheda tecnica

1549117487-fbass15-20-8-1.pdf

LaVoce FBASS15-20-8 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.9
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 98
  • Frequency range Hz 40 ÷ 4000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 140 x 60 x 17 (5.5 x 2.36 x 0.67)
  • Coil material Copper
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.3 (0.17)
  • Xmech mm (in) 8.4 (0.33)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 12.6 (0.5)
  • Driver displacement volume l (ft³) 3 (0.1)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 40
  • Moving mass g (oz) 70 (2.47)
  • Compliance mm/N 0.23
  • Force factor N/A 12.8
  • Mechanical Q factor 8.7
  • Electrical Q factor 0.56
  • Total Q factor 0.53
  • Equivalent air volume l (ft3) 234 (8.26)
  • Voice coil inductance mH 0.70
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.5%
  • Net weight kg (lb) 4.1 (9.1)
  • Multipack dimensions L x W x H 438 x 438 x 204 (17.2 x 17.2 x 8)
  • Multipack weight kg (lb) 6.2 (13.6)
€ 92,40 Price incl. VAT
