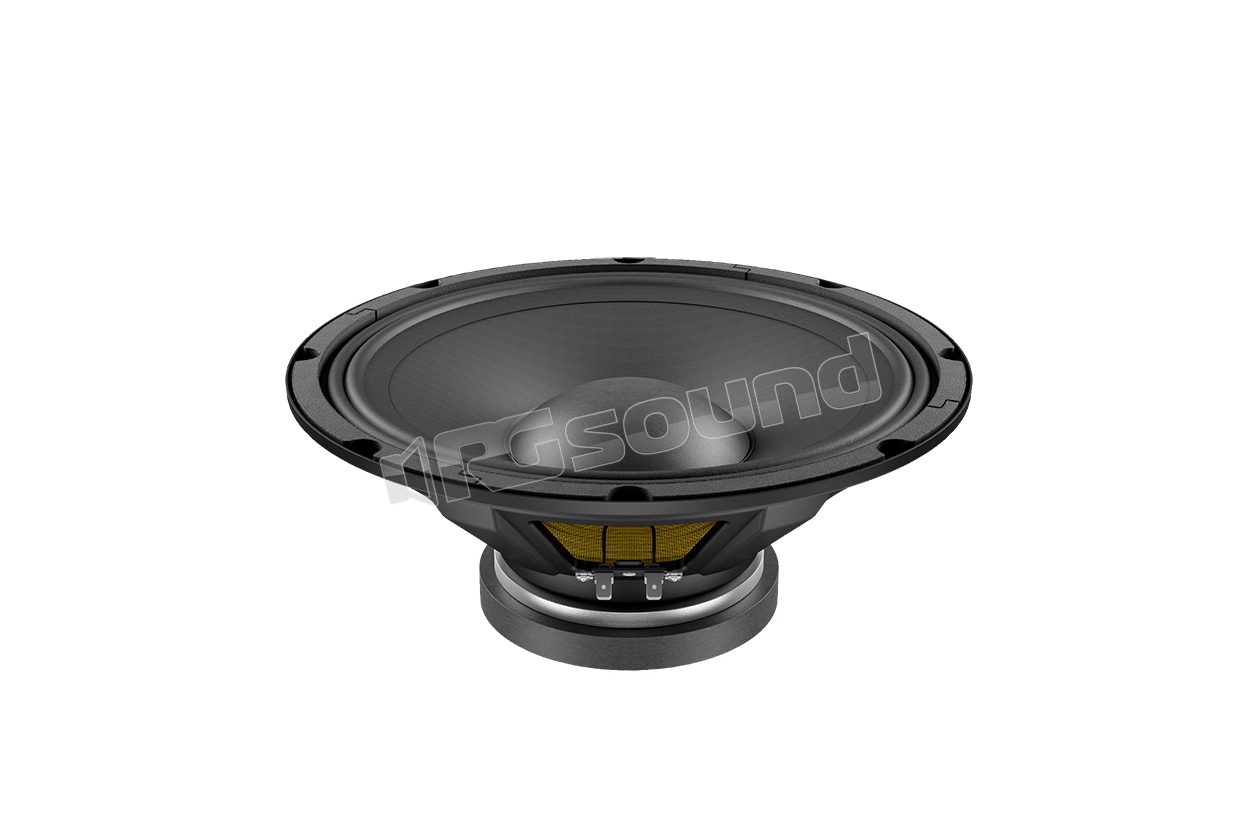

FBASS12-20 12"/300mm Bass Speaker

LaVoce
Your price:
€ 75,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce FBASS12-20-8 Bass Speaker 12"/300mm

Main features of the FBASS12-20-8 speaker

  • 2 inch copper voice coil
  • Sensitivity 97 db/spl
  • Program power handling 400 watt
  • Overall balanced and rich tone
  • Solid bass and precise high mids

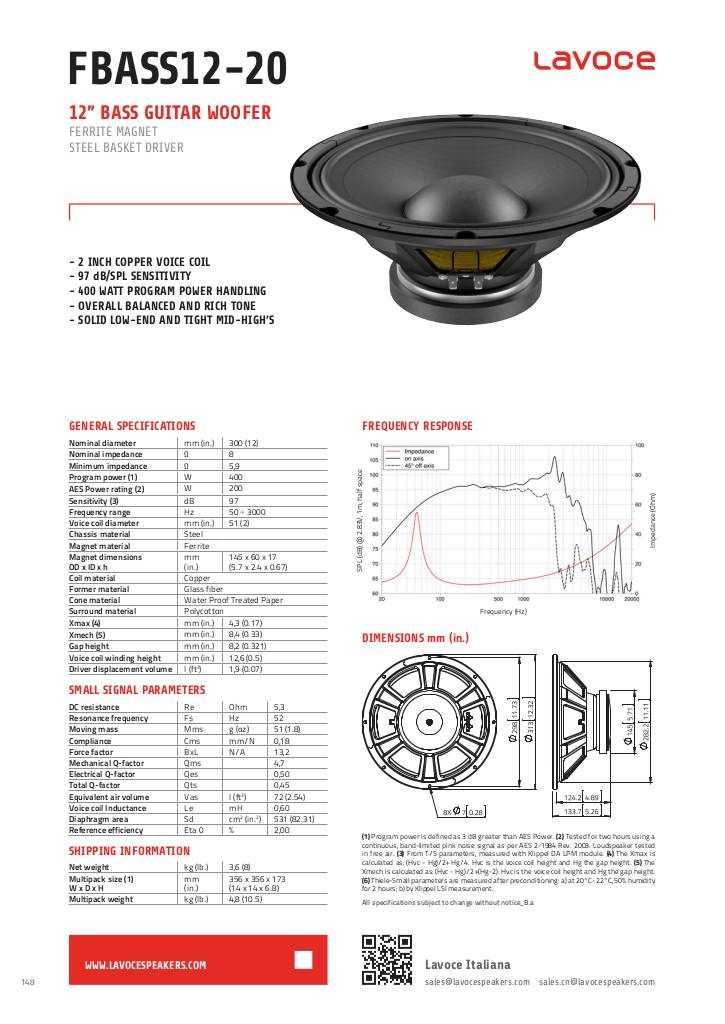

scheda tecnica

1549117521-fbass12-20-8-1.pdf

LaVoce FBASS12-20-8 Technical specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.9
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 97
  • Frequency range Hz 50 ÷ 3000
  • Voice coil diameter mm (in) 51 (2)
  • Basket material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 145 x 60 x 17 (5.7 x 2.36 x 0.67)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.3 (0.17)
  • Xmech mm (in) 8.4 (0.33)
  • Gap height mm (in) 8.2 (0.321)
  • Voice coil winding height mm (in) 12.6 (0.5)
  • Driver displacement volume l (ft³) 1.9 (0.07)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 52
  • Moving mass g (oz) 51 (1.8)
  • Compliance mm/N 0.18
  • Force factor N/A 13.2
  • Mechanical Q factor 4.7
  • Electrical Q factor 0.50
  • Total Q factor 0.45
  • Equivalent air volume l (ft3) 72 (2.54)
  • Voice coil inductance mH 0.60
  • Diaphragm area cm2 (in.2) 531 (82.31)
  • Reference efficiency 2%
  • Net weight kg (lb) 3.6 (8)
  • Multipack dimensions L x W x H 356 x 356 x 173 (14 x 14 x 6.8)
  • Multipack weight kg (lb) 4.8 (10.5)
€ 75,50 Price incl. VAT
